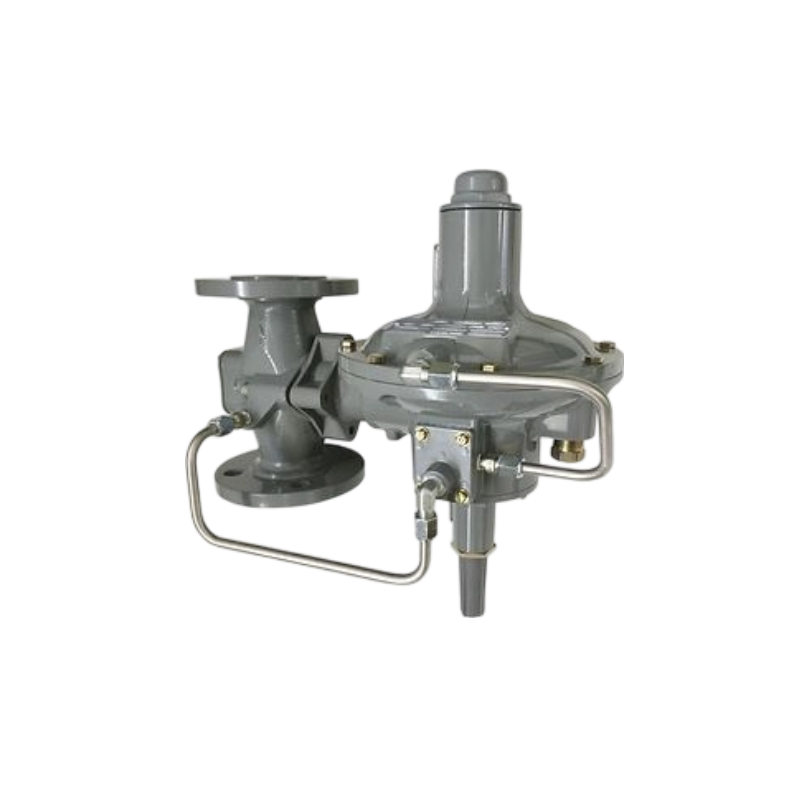

Fisher 299H Series Pressure Reducing Regulators
Fisher 299H Series pilot operated pressure reducing regulators provide controlled pressure and capacities for distribution, industrial and commercial applications with inlet pressures up to 175 psi/12.1 bar. Type 299HV with Type VSX8 are used in applications where the gas supply must be shutoff. The 299HR integral token relief alerts you to an increase in downstream pressure beyond the regulator set point. Type 299HVR token internal relief valves to relieve minor thermal expansion overpressure.
Features
1.Unique No Bleed Monitor System
2.Accuracy
3.High-Capacity Pressure Control
4.External, Internal or Dual Registration Conversion
5.Easy Startup
6.Easy to Maintain
7.Rugged Construction
8.Rugged Construction
Specifications
Body Sizes and End Connection Styles | Sizes: NPS 1-1/4, NPS 1-1/2, NPS 2 / DN 50 Connections: NPT, CL125 FF Flanged, CL250 RF flanged, PN 10/16 flanged |
Maximum Operating Inlet Pressure by Orifice Size | 1/4 x 3/8 in. / 6.4 x 9.5 mm : 175 psig / 12.1 bar 3/8 in. / 9.5 mm : 175 psig / 12.1 bar 1/2 in. / 13 mm : 175 psig / 12.1 bar 3/4 in. / 19 mm : 150 psig / 10.3 bar 7/8 in. / 22 mm : 125 psig / 8.6 bar 1 in. / 25 mm : 100 psig / 6.9 bar 1-3/16 in. / 30 mm : 80 psig / 5.5 bar |
Maximum Outlet (Casing) Pressure | 66 psig / 4.5 bar |
Minimum Differential Pressure for Full Stroke | 1.5 psid / 0.10 bar d |
Outlet Pressure Ranges | 3.5-inches w.c. to 60 psig / 9 mbar to 4.14 bar in nine ranges |
Pressure Registration | Internal, External, or Dual Registration |
Temperature Capabilities | -20 to 150°F / -29 to 66°C |
Approximate Weight | 21 lbs / 10 kg |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
