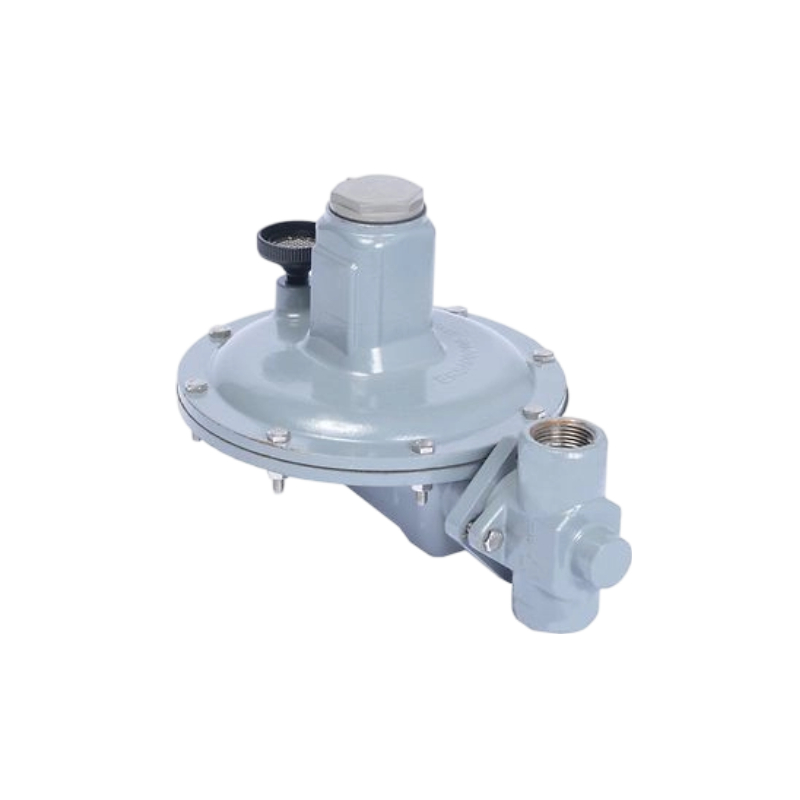

Fisher T205 Series Tank Blanketing Regulators
The T205 Series tank blanketing regulator is a direct-operated and spring-loaded regulator. The T205 Series maintains a slightly positive pressure to prevent a stored liquid from vaporizing into the atmosphere, reduces liquid combustibility, and prevents oxidation or contamination of the product by reducing its exposure to air.
Features
1.Low-pressure setting and fast speed of response
2.Accurate control and small lockup pressure
3.Corrosion resistance
4.Easy conversion between constructions
5.Arctic Construction Option
6.FDA/USP Class VI Approved/ADI-free Construction Option
Specifications
Body Sizes | 3/4 or 1-inch / DN 20 or 25 |
Maximum Allowable Inlet Pressure | Gray Cast Iron: 150 psig / 10.3 bar WCC Carbon Steel, LCC Carbon Steel or CF8M/CF3M Stainless Steel: 200 psig / 13.8 bar |
Maximum Outlet (Casing) Pressure | Gray Cast Iron: 35 psig / 2.4 bar WCC Carbon Steel, LCC Carbon Steel or CF8M/CF3M Stainless Steel: 75 psig / 5.2 bar |
Max Emergency Outlet Pressure to Avoid Internal Parts Damage | NBR, FKM or EPDM diaphragm: 35 psig / 2.4 bar FEP diaphragm: 10 psig / 0.7 bar |
Standard Temperature Capabilities | NBR: -20 to 180°F / -29 to 82°C FEP: -20 to 180°F / -29 to 82°C EPDM: -20 to 225°F / -29 to 107°C |
High Temperature Capabilities | FKM: 40 to 300°F / 4 to 149°C FFKM: 0 to 300°F / -18 to 149°C |
Pressure Registration | Type T205: Internal Type T205M: External |
Spring Case Vent Connection | 1/4 NPT |
Diaphragm Case Control Line Connection (Type T205M) | 1/2 NPT |
Approximate Weight | 17.7 pounds / 8 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)

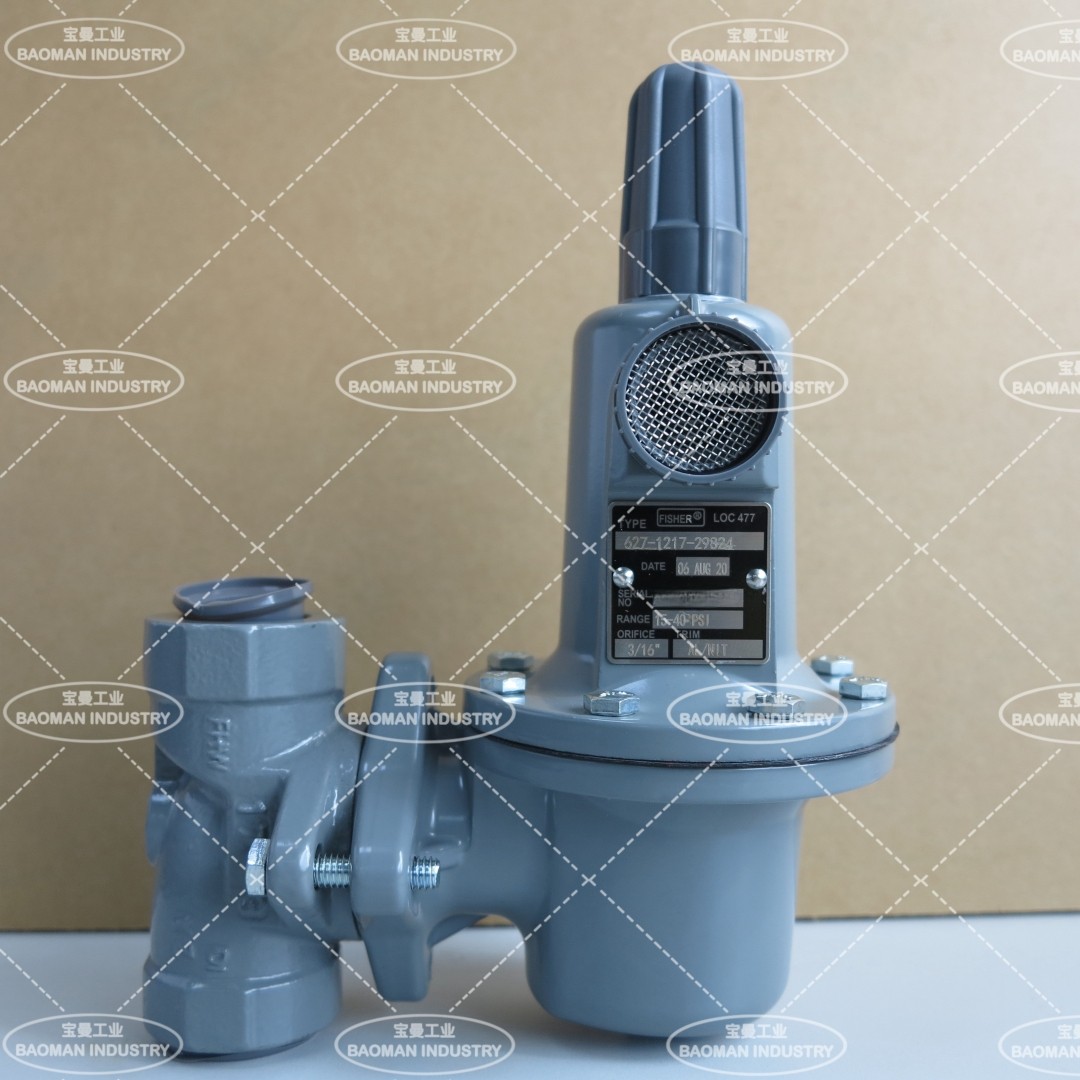

627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models

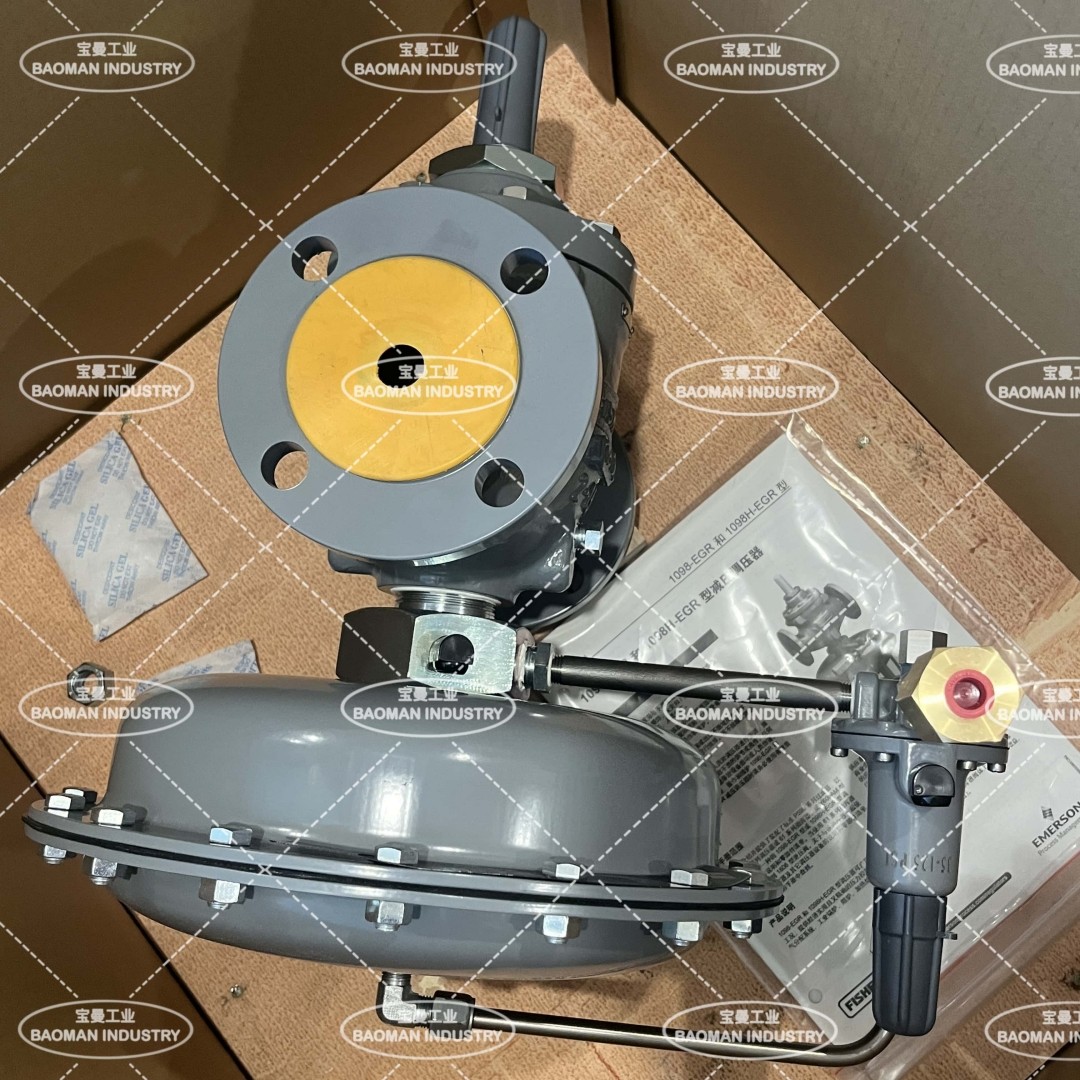

67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
Pictures show
