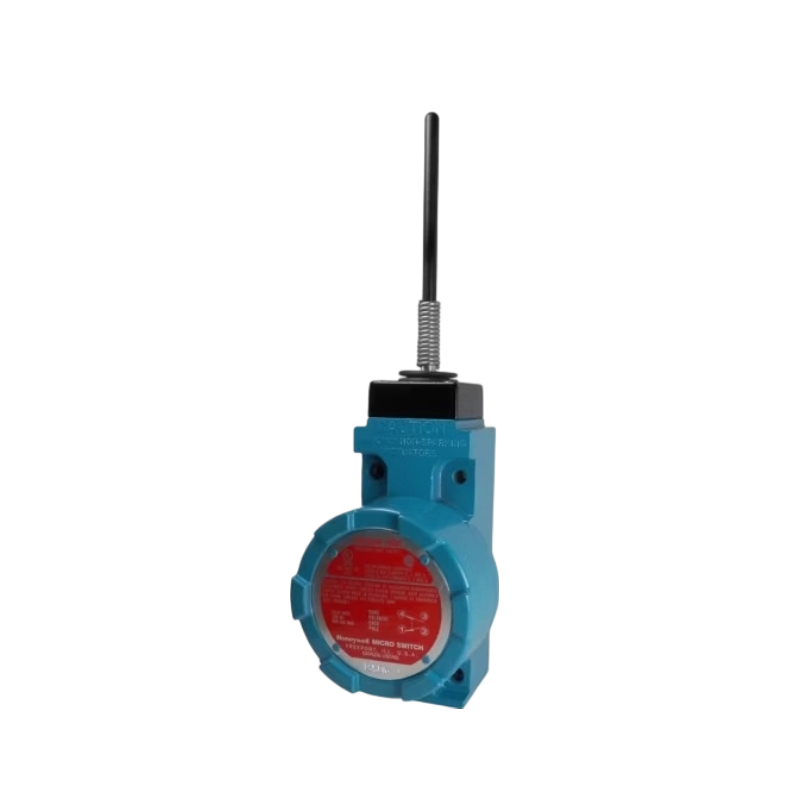

Honeywell MICRO SWITCH LSX Series Limit Switches
MICRO SWITCH LSX hazardous area switches are designed for use in adverse environments. They are approved for use in hazardous locations and NEMA classified atmospheres because their rugged housings have integral flame paths. These flame paths force internal expanding gases to cool below external atmosphere ignition temperatures before they leave the housing.
The LSX also features tracking interchangeability with MICRO SWITCH BX Series Hazardous Area switches. An optional mounting plate provides the same tracking and mounting as the standard HDLS Series (heavy-duty limit switch).
The majority of HDLS operating heads and circuitry options are available for the LSX Series. The rotary actuated LSX Series products are designed for use with levers that have non-sparking actuators due to the potentially hazardous environment. The other styles of LSX Series switches which are the plunger actuated and wobble actuated products incorporate an integral non-sparking actuator.
Features
1. Heavy-duty rugged construction, reinforced die-cast metal housing for extreme heavy-duty use
2. IP67 and NEMA 4, 4X, 6, 13 rated, fully dust-tight, water-tight, oil-tight and corrosion-resistant
3. Precision snap-action contacts with positive opening NC contacts for enhanced operational safety
4. Multiple contact configurations: SPDT, DPDT, with high-current silver alloy contacts for heavy loads
5. Extra-high shock (100g) and vibration (20g) resistance, ideal for heavy machinery and harsh environments
6. Wide operating temperature range: -40°C to +85°C, stable in extreme cold and high-temperature conditions
7. Wide range of actuators: roller lever, plunger, wobble stick, adjustable lever for versatile sensing needs
8. 90° field-adjustable rotary head for flexible installation and alignment
9. Standard heavy-duty mounting pattern, easy integration and replacement with existing setups
10. Multiple conduit entries (1/2 NPT, M20) for flexible and secure wiring
11. Long mechanical life up to 10 million cycles, low maintenance and long service life
12. Global certifications: UL, CSA, CE, suitable for worldwide heavy-duty industrial deployment
