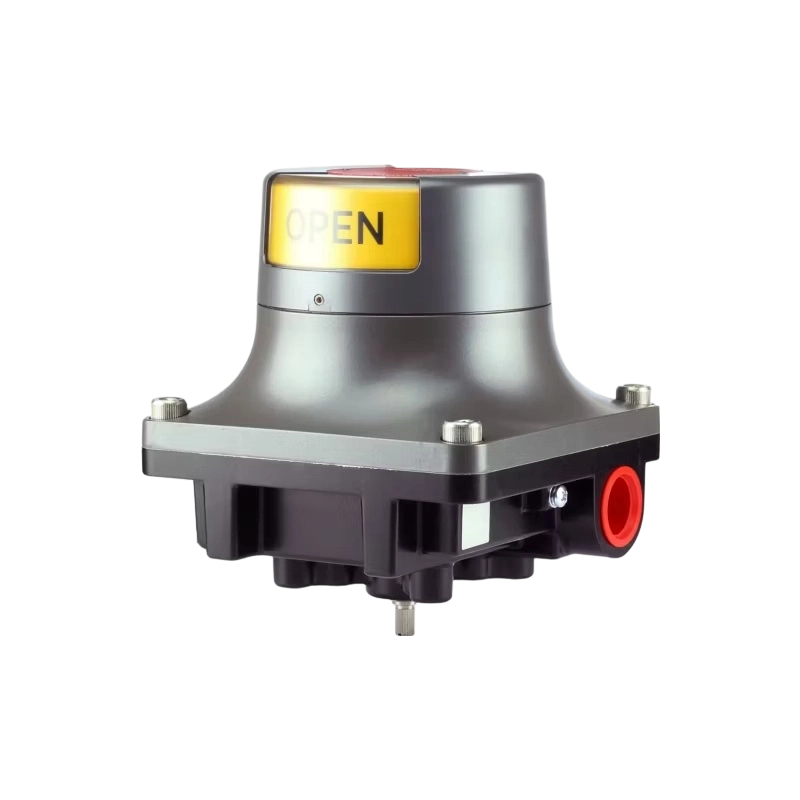

Honeywell MICRO SWITCH VPX Series Limit Switches
The MICRO SWITCH VPX Series switches are built especially for outdoor use in potentially hazardous atmospheres. The switch enclosures are constructed to withstand the pressure of an internal explosion. Flame paths cool the exploded gases to a point less than safe operating temperature of the surrounding gas.
The VPX Series versions equipped with the inductive proximity switches has the Intrinsically Safe (IS) rating. Regardless of where the equipment or machinery is designed, built or installed, the VPX Series products carry global agency coverage.
The VPX Series switches have standard rugged die-cast aluminum housing. The products housing is weather sealed for outdoor use and comply with NEMA 4X requirement for protection against corrosion, in addition to various NEMA enclosure standards.
The product’s o-ring seals make the enclosure rain tight, but are outside of required flame paths so explosion proof requirements are maintained. The VPX Series switches are available in multiple colors and angles, visible from all directions. Unless special ordered, all basic switches operate on clockwise and counterclockwise rotation.
Features
1. Explosion-proof flameproof design, suitable for Class I, II, III Division 1 & 2 hazardous locations
2. Available with mechanical micro-switches or intrinsically safe inductive proximity switches for IS applications
3. Rugged die-cast aluminum housing, corrosion-resistant and built for extreme outdoor weather conditions
4. IP66 and NEMA 4, 4X, 6, 13 rated, dust-tight, water-tight, oil-tight and corrosion-proof protection
5. Wide operating temperature range: -40°C to +85°C, stable in extreme temperature environments
6. Flame path design cools explosive gases to prevent external ignition, meeting strict explosion-proof standards
7. Visible position indicator with multi-angle viewing for quick valve status checks
8. Flexible actuator and mounting options, compatible with standard valve monitoring setups
9. SIL 3 certified (select models) for enhanced functional safety in critical applications
10. Global certifications: UL, CSA, ATEX, IECEx, KOSHA, CE for worldwide hazardous-area deployment
11. Long mechanical and electrical life, low maintenance for heavy-duty industrial use
