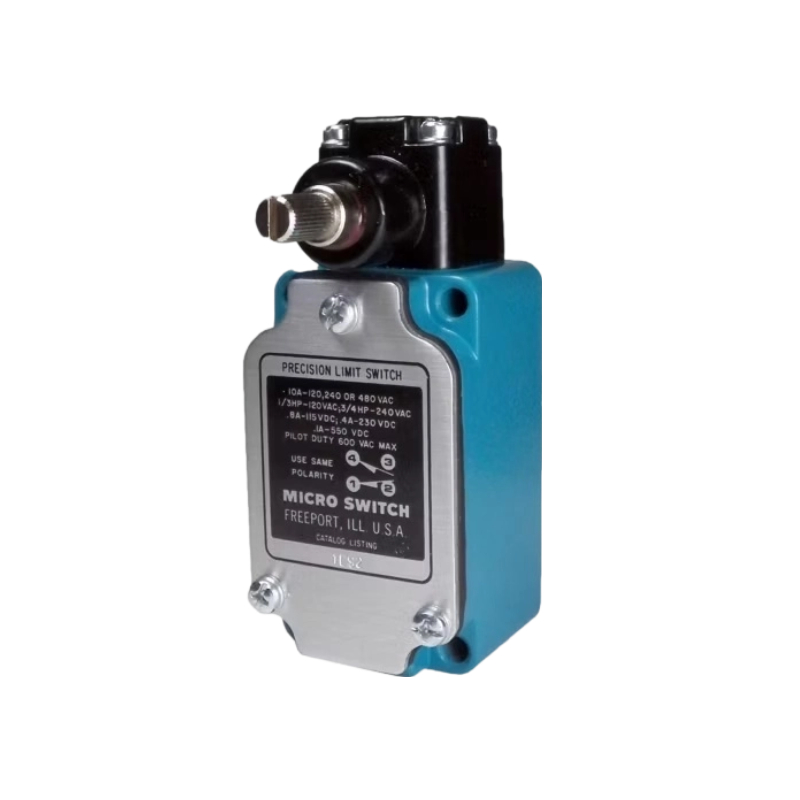

Honeywell MICRO SWITCH LS Series Limit Switches
Honeywell's Honeywell MICRO SWITCH Compact LS Series Limit Switches offers products that have a long record of successful performance in a diverse range of industrial applications. Under severe conditions, its durable and dependable design provides longevity, precision, and consistent repeatability over millions of operations.
The compact size and adjustable features propel the LS Series to flourish in a variety of settings under space constraint without sacrificing reliability. Its construction is oil-tight, water-tight and dust tight, and includes die-cast housing, heads and actuators. An assortment of heads and actuators provides a solution for a variety of applications.
The LS series is designed with a non-plug-in body: whereas the 200LS series features a plug-in housing.
Features
1. EN 50047 compliant, standard compact mounting pattern for global equipment compatibility
2. Double-insulated glass-reinforced thermoplastic housing, lightweight and durable
3. IP66 & NEMA 1, 12, 13 rated, dust-tight, oil-tight for harsh industrial environments
4. Integral contact block design, galvanically isolated poles for enhanced safety
5. Snap-action & slow-action contact options, positive opening NC contacts (IEC standard)
6. Multiple contact configurations: SPDT, 2NC, with silver alloy contacts standard
7. Wide operating temperature range: -10°C to +80°C, stable for daily industrial use
8. High shock (50g) & vibration (10g) resistance, reliable on heavy machinery
9. Full actuator selection: rotary, plunger, roller lever, adjustable rod for diverse needs
10. Hinge cover with single fastener, easy wiring & quick maintenance
11. 1/2 NPT & 20mm conduit options, flexible installation
