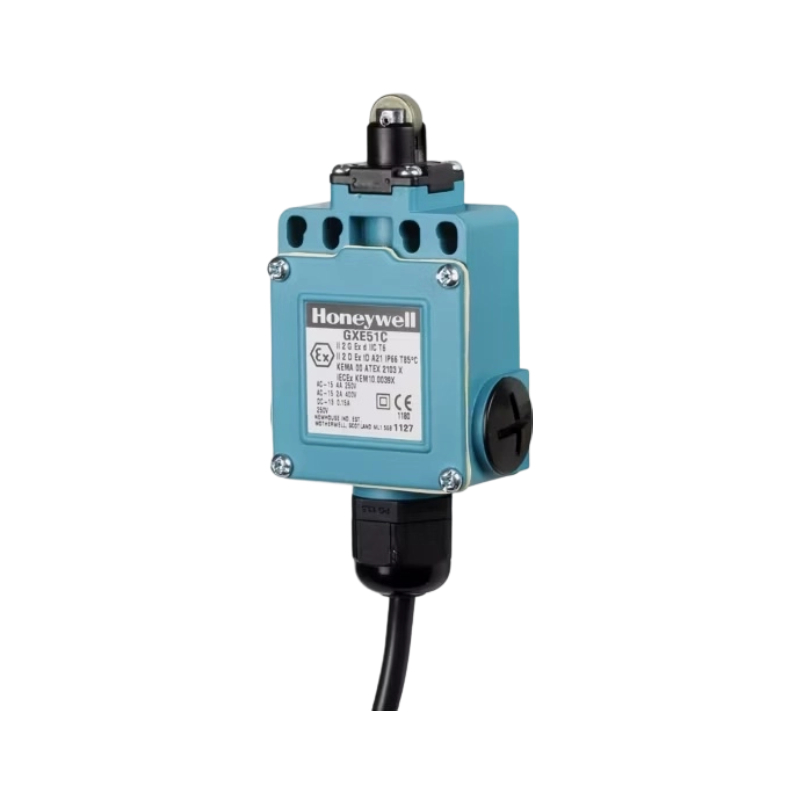

Honeywell MICRO SWITCH GXS Series Limit Switches
The GXS Series flame-proof limit switches are designed specifically for use in hazardous applications. The GXS enclosure is epoxy sealed and has an environmental protection of IP66 as per IEC/EN 60529. The entire series GXS complies with the European Directive on Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres (2014/34/EU) commonly referred to as the ATEX Directive.
Features
Hazardous Location Rating
Certified for Class I, II, III; Div 1 & 2, and Zone 1/21 applications.
Complies with ATEX, IECEx, UL, and CSA standards for global use.
Rugged Enclosure
Die-cast aluminum or 316L stainless steel housing options.
NEMA 4X/IP66/IP67 protection against dust, water, and corrosion.
High Safety Contacts
Positive opening (forced opening) NC contacts for enhanced safety.
SPDT/DPDT contact configurations with silver or gold-plated contacts.
Field Adjustable
Rotary heads with 90° incremental adjustment.
Wide range of actuators (plunger, roller, lever, etc.) for versatile sensing.
Harsh Environment Performance
Operating temperature range: -40°C to +85°C.
Resistant to shock (50g) and vibration (10g).
Easy Installation
1/2" NPT or M20 conduit entries for flexible wiring.
Standard mounting pattern for easy integration and replacement.
Long Life
Mechanical life up to 10 million cycles for low maintenance operations.
