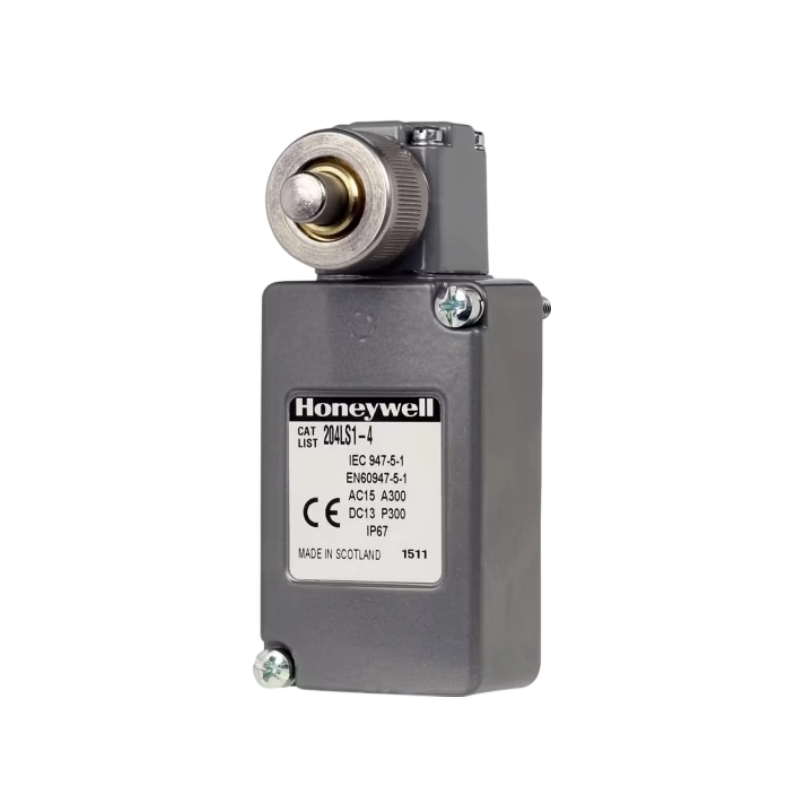

Honeywell MICRO SWITCH 200LS Series Limit Switches
Honeywell's MICRO SWITCH Compact 200LS Series Limit Switchesoffers products that have a long record of successful performance in a diverse range of industrial applications. Under severe conditions, its durable and dependable design provides longevity, precision, and consistent repeatability over millions of operations.
The compact size and adjustable features propel the LS Series to flourish in a variety of settings under space constraint without sacrificing reliability. Its construction is oil-tight, water-tight and dust tight, and includes die-cast housing, heads and actuators. An assortment of heads and actuators provides a solution for a variety of applications.
The 200LS Series is designed with a non-plug-in body: whereas the 200LS Series features a plug-in housing.
Features
1.Plug‑in Housing Design
Original plug‑in concept for fast, tool‑free replacement, reducing equipment downtime.
2.Compact & Rugged Construction
Die‑cast zinc housing with oil‑tight, water‑tight, and dust‑tight sealing; ideal for space‑constrained industrial environments.
3.High Sealing Ratings
NEMA 1, 3, 4, 6, 13 and IP67 protection against harsh contaminants, moisture, and dust.
4.Precision Snap‑Action Mechanism
Double‑break, SPDT/DPDT snap‑action contacts for fast, positive, and repeatable switching.
5.Field‑Adjustable Operating Modes
Head and actuator positions field‑configurable for versatile installation.
6.Wide Electrical Ratings
10A @ 480V AC; suitable for general‑purpose industrial control circuits.
7.Extensive Actuator Selection
Top plunger, side rotary lever, adjustable roller lever, spring‑loaded, and rod‑type actuators available.
8.Flexible Mounting
Standard surface‑mount with captive screws; mounting holes fit #10 screws for secure installation.
9.Wide Operating Temperature
–29°C to +71°C (–20°F to +160°F) for stable performance in diverse conditions.
10.Convenient Wiring
0.5‑in‑14 NPT conduit entries; screw terminals for reliable connections.
11.Long Service Life
Mechanical life up to 10 million cycles; electrical life up to 500,000 cycles.
12.Global Certifications
UL recognized, CSA certified, CE marked, and RoHS compliant for worldwide industrial use.
