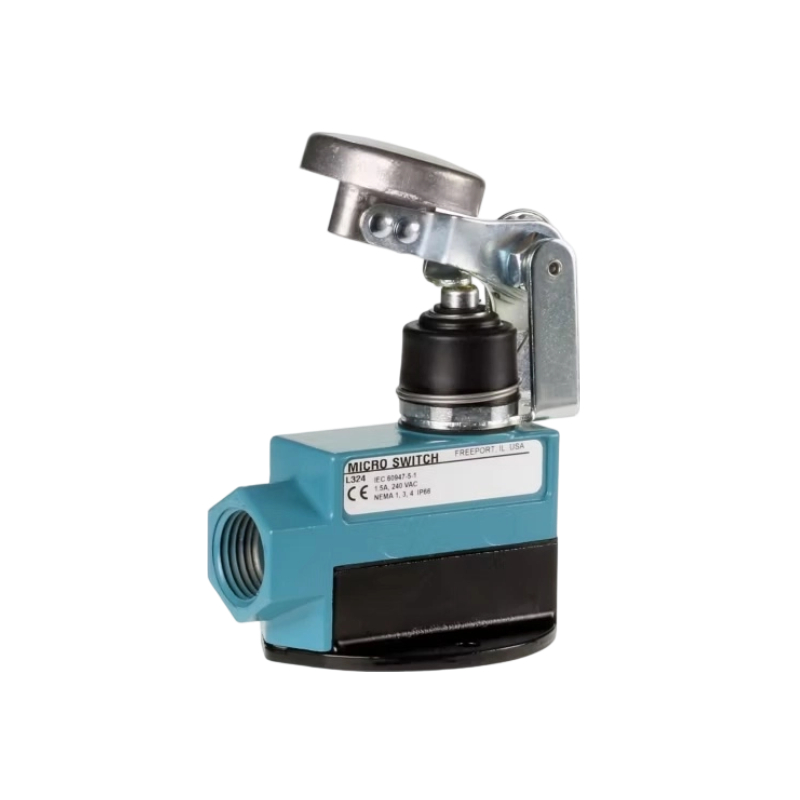

Honeywell MICRO SWITCH BZV6 Series Limit Switches
Honeywell MICRO SWITCH BZE6/V6 Series medium—duty limit switches are designed for a wide variety of indoor and outdoor applications. The electrostatic applied epoxy coating to the zinc housings enhance the durability of the product in most environments.
The E6/V6 family of switches incorporates the Honeywell MICRO SWITCH BZ switch element which has the reliable snap-spring mechanism with more than 60 years of proven service. E6 series switches feature a side mount: whereas,V6 series switches have flange mounting.
The sealed (actuators with boots) E6/V6 Series switches are preferred for applications where there could be exposure to liquid and/or particulate environments. The general purpose (actuators without boot seals) E6/V6 Series switches are ideal for applications where there will not be exposure to liquid or dust environments.
The compact size of these limit switches permits installation where there is limited space available on equipment. Most SPDT (Single Pole Double Throw) E6/V6 catalog listings are certified to UL, CSA, and CE while the DPDT (Double Pole Double Throw) E6/V6 catalog listings are certified to UL and CSA.
Features
1.Flange-Mount Design
Part of the E6/V6 family, with standard flange mounting for secure, space-saving installation on equipment surfaces.
2.Rugged Zinc Die-Cast Housing
Epoxy-coated for high impact resistance and corrosion protection, ensuring durability in harsh industrial environments.
3.IP66 Sealing (with Boot Seal)
Protects against dust, oil, and water splashes; ideal for wet/dusty environments. General-purpose options (without boot seal) suit clean environments.
4.Proven Snap-Spring Mechanism
60+ years of industrial reliability for fast, positive, and repeatable switching.
5.SPDT/DPDT Contact Configurations
SPDT models: UL/CSA/CE certified. DPDT models: UL/CSA certified, supporting diverse control needs.
6.High Electrical Ratings
Up to 15A AC(600V max) and 0.5A DC (250V max) for heavy-duty applications.
7.Wide Actuator Variety
Top plunger, roller lever, adjustable lever, and spring-loaded options for precise position detection.
8.25 mm Mounting Holes
Standardized for easy integration with existing equipment fixtures.
9.Wide Operating Temperature
Stable performance from -32°C to +71°C(-25°F to +160°F); low-temp option available to -40°C.
10.Convenient Wiring
1/2" NPT conduit entries for secure, accessible wiring in confined spaces.
11.Long Service Life
Mechanical life up to 10 million cycles; electrical life up to 500,000 cycles for sustained reliability.
12.Global Certifications
UL recognized, CSA certified, CE marked, RoHS compliant for worldwide use.
