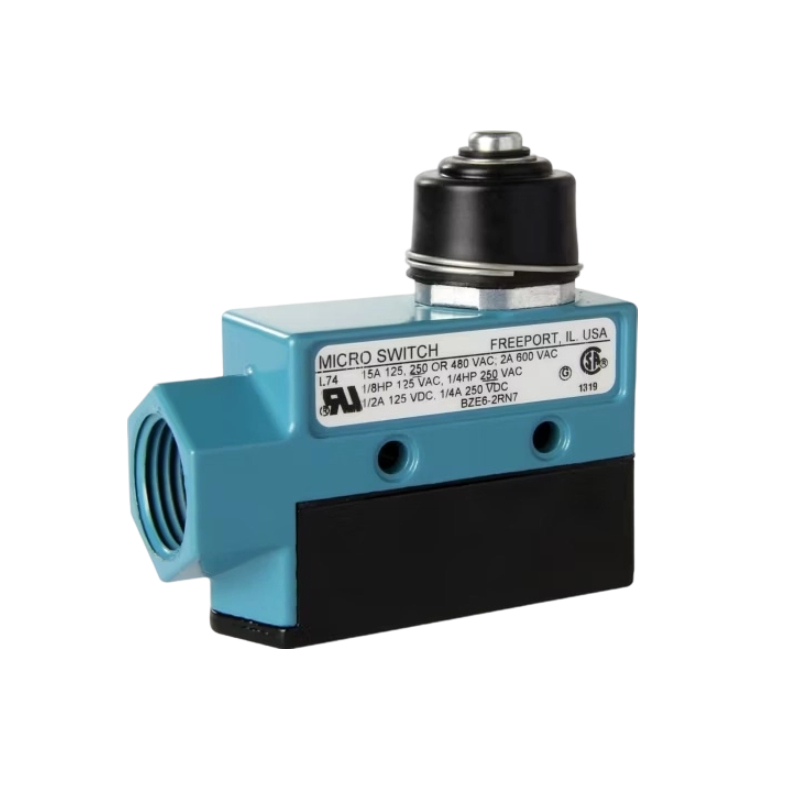

Honeywell MICRO SWITCH BZE6 Series Limit Switches
Honeywell MICRO SWITCH BZE6/V6 Series medium—duty limit switches are designed for a wide variety of indoor and outdoor applications. The electrostatic applied epoxy coating to the zinc housings enhance the durability of the product in most environments.
The E6/V6 family of switches incorporates the Honeywell MICRO SWITCH BZ switch element which has the reliable snap-spring mechanism with more than 60 years of proven service. E6 series switches feature a side mount: whereas,V6 series switches have flange mounting.
The sealed (actuators with boots) E6/V6 Series switches are preferred for applications where there could be exposure to liquid and/or particulate environments. The general purpose (actuators without boot seals) E6/V6 Series switches are ideal for applications where there will not be exposure to liquid or dust environments.
The compact size of these limit switches permits installation where there is limited space available on equipment. Most SPDT (Single Pole Double Throw) E6/V6 catalog listings are certified to UL, CSA, and CE while the DPDT (Double Pole Double Throw) E6/V6 catalog listings are certified to UL and CSA.
Features
1.Rugged zinc die-cast housing with electrostatic epoxy coating, providing excellent impact resistance and corrosion protection.
2.IP66 sealed construction with boot seal option, resistant to dust, oil, water splash and harsh industrial environments.
3.Precision snap-action mechanism for fast, positive and repeatable switching with high reliability.
4.Long mechanical and electrical life for stable long-term operation.
5.SPDT contact configuration, suitable for various control circuits and high load applications.
6.Wide selection of actuators including plunger, roller lever, adjustable lever and spring rod types.
7.Standard 25.4 mm side mounting holes for easy and flexible installation.
8.Wide operating temperature range for stable performance in different environments.
9.Built-in terminal block with 1/2" NPT conduit entry for convenient wiring.
10.UL, CSA, CE and RoHS certified for global industrial applications.
