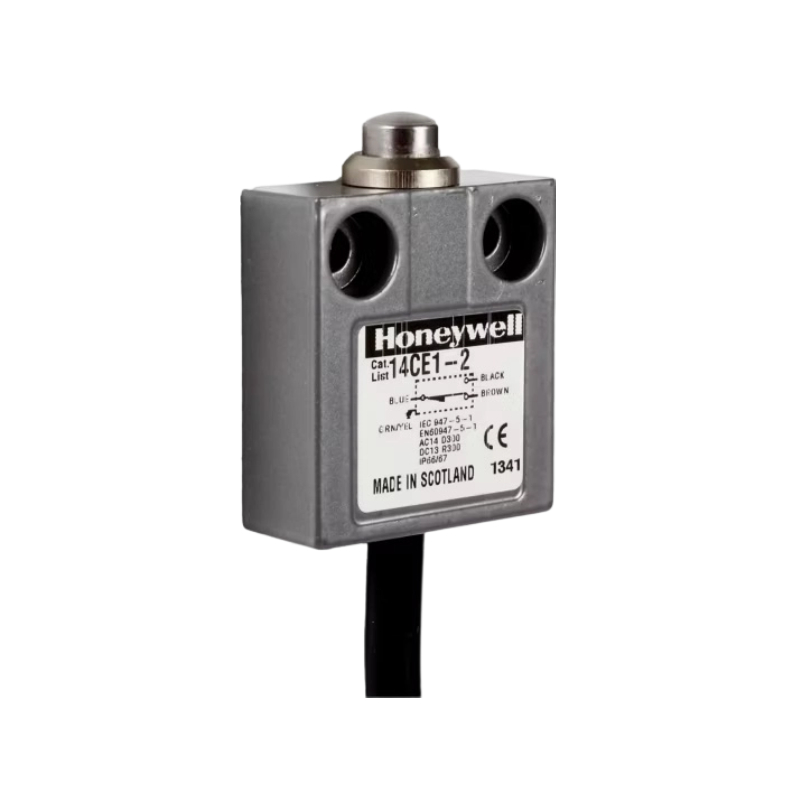

Honeywell MICRO SWITCH 14CE Series Limit Switches
For use in Europe,MICRO SWITCH 14CE Series compact enclosed swithes incorporate fluorocarbon diaphragm sealing to provide reliable protection, meeting IP65, IP66, IP67, and IP68, as well as NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13 requirements. Versions with a boot seal also meet NEMA 12 requirements (dust, falling dirt, liquid media with solid contaminates).
The cable or connector and basic switch terminals are encapsulated in an epoxy sealant, offering excellent resistance in harsh environments. For low temperature applications (down to -40 °C, -40 °F), CE Series switches can be supplied with low temperature seals and lubricant.
The CE Series switches are rugged and versatile switches which can be applied indoors in many harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including plain plungers, roller plungers, side rotary, multi-directional wire, and manually operated. The switches are also available with the industry standard, M12 micro-change 4-pin connector. MICRO SWITCH 14CE products meet worldwide CE requirements.
Features
1.High Sealing Performance
IP67 sealed construction to protect against dust, moisture, oil, and industrial contaminants, ensuring stable performance in tough working conditions.
2.Compact and Robust Design
Small but durable housing with strong mechanical resistance, suitable for space-limited installations.
3.Precision Snap-Action Mechanism
Precise contact mechanism with quick and positive switching action, high repeatability and long service life.
4.Wide Actuator Selection
Multiple actuator types available, including plunger, roller lever, adjustable lever, and hinge lever to meet different application needs.
5.Stable Contact Performance
SPDT contact configuration, suitable for both control circuits and low-level signal applications.
6.Flexible Mounting
Standard mounting dimensions for easy installation and versatile use in various equipment.
7.Wide Operating Temperature Range
Stable operation over a wide temperature range, adapting to different industrial environments.
8.Global Certifications
Certified by CE, UL, CSA and other international standards, suitable for global applications.
