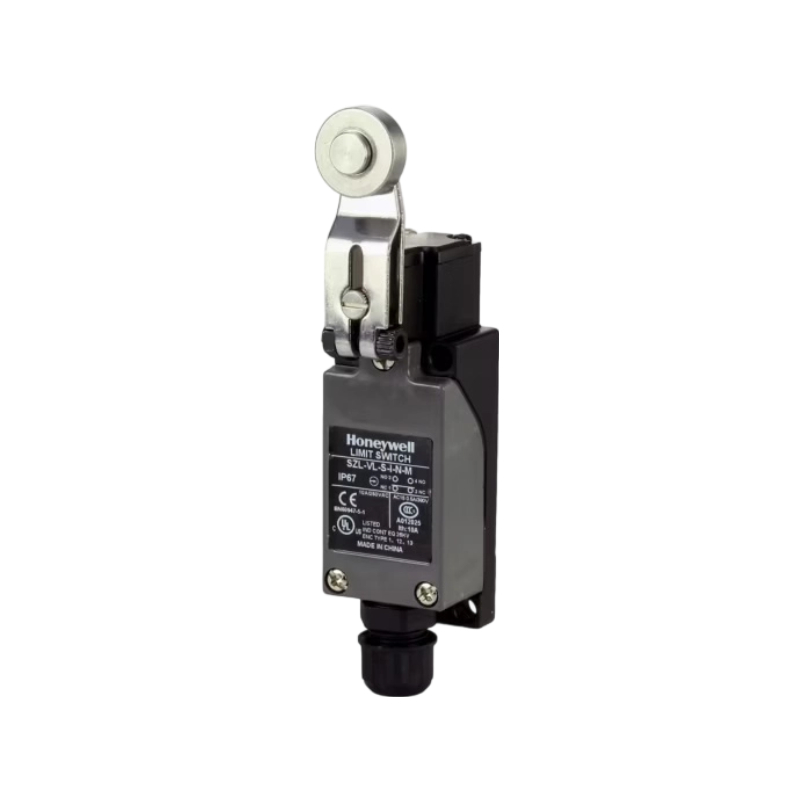

Honeywell MICRO SWITCH SZL-VL-S Series Limit Switches
The SZL-VL-S Series miniature-type limit switch is designed for use in applications where limited mounting space is available. With IP67 seal rating, these switches are suitable for OEM machinery that requires a rugged and reliable limit switch capable of being mounted in space restricted applications. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination.
The SZL-VL-S Series switches have a split-housing design made of a die-cast body and head with glass-filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet a variety of application needs. The SZL-VL-S are available globally and carry certifications for applications around the world.
Features
1.Compact and Lightweight Design
Small and lightweight structure, easy to install in limited space, suitable for various small equipment and automated mechanisms.
2.Stable Snap-Action Mechanism
Precise snap-action contact system ensures quick and reliable switching, stable actuation, and long service life.
3.Wide Range of Actuator Types
Multiple actuator options available, including plunger, roller lever, adjustable lever, and hinge lever to meet different application needs.
4.Good Sealing Performance
IP rating protection against dust, oil, and moisture, suitable for general industrial environments.
5.Flexible Wiring and Mounting
Standard mounting holes and convenient wiring terminals for fast installation and easy maintenance.
6.Wide Operating Temperature
Stable performance over a wide temperature range, adapting to different working environments.
7.Global Certifications
Approved by CE, UL, CSA, and other international certifications, suitable for worldwide applications.
