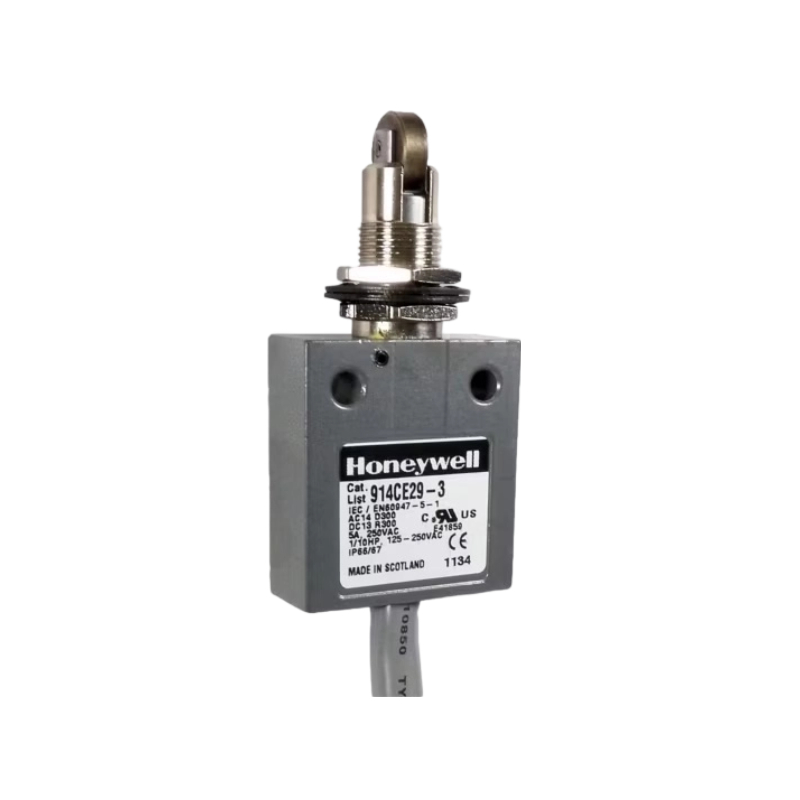

Honeywell MICRO SWITCH 914CE Series Limit Switches
MICRO SWITCH 914CE Series compact enclosed switches incorporate fluorocarbon diaphragm sealing to provide reliable protection, meeting NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13 as well as IP66, IP67, and IP68 requirements. Versions with boot seal also meet NEMA 12 requirements (dust, falling dirt, liquid media with solid contaminates).
The cable or connector and basic switch terminals are encapsulated in an epoxy sealant, offering excellent resistance in harsh environments. For low temperature applications (down to -40 °C, -40 °F), CE Series switches can be supplied with low temperature seals and lubricant.
The CE Series switches are rugged and versatile switches which can be applied indoors in many harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including plain plungers, roller plungers, side rotary, multi-directional wire, and manually operated.
The switches are also available with the industry standard, M12 micro-change 4-pin connector. MICRO SWITCH 914CE products meet North American, cURus standards, as well as European CE requirements.
Features
1. Superior Sealing & Environmental Resistance
Up to IP 67 ingress protection, dust-tight and waterproof, with sealed contact mechanism to resist dust, moisture, oil, and common industrial contaminants, suitable for indoor and outdoor harsh working conditions.
2. Compact & Versatile Form Factor
Ultra-compact body design with a small footprint, easy to install in space-constrained equipment and narrow mounting positions, widely adaptable to various compact automation scenarios.
3. Long-Lasting Durability
High-reliability snap-action contact mechanism, providing up to 10 million mechanical operating cycles and 1 million electrical cycles, extending service life and reducing frequent maintenance and replacement costs.
4. Stable & Consistent Switching
PerformanceStandard SPDT (NO/NC) contact configuration, with stable contact pressure and precise actuation points, ensuring repeatable and reliable on/off switching for both power circuits and low-level signal control.
5. Rich Actuator & Mounting Options
Diverse actuator types available, including top plunger, roller plunger, side rotary lever, adjustable roller lever, and hinge lever, to match different actuation directions and stroke requirements. Standard mounting dimensions for quick and flexible installation.
6. Wide Operating Temperature Range
Adaptable to a broad operating temperature range from -40°C to+85°C, maintains stable switching performance even in environments with frequent temperature changes and extreme climate conditions.
7. Global Standard Compliance
Certified with CE, UL, CSA, and cULus, meets international industrial safety and quality standards, suitable for global industrial automation applications across regions.
