Features

1.Flameproof & IP65 Design

①Ex d IIC T6 flameproof enclosure for Zone 1 / Zone 2 hazardous areas.

② IP65 (IEC 60529): dust‑tight and resistant to low‑pressure water jets, suitable for outdoor, dusty, humid, and wash‑down applications.

2.High‑Precision Smart Control

①One‑touch auto‑calibration: automatically identifies actuator stroke, action mode, and friction.

②Positioning accuracy ≤ ±0.5% F.S., hysteresis ≤ 0.5%, dead band ≤ 0.1%.

③Configurable flow characteristics: Linear / Equal Percentage / Quick Opening via local interface, no cam replacement needed.

3.Piezo‑Electric Pilot System

 Fast response, ultra‑low steady‑state air consumption, and long service life.

4.User‑Friendly Operation

①Local LCD display + 3 pushbuttons for configuration without opening the housing.

②HART 7.0 communication (standard) for remote setup, diagnostics, and monitoring.

5.Fault Safety & Self‑Diagnostics

①Configurable fail‑safe modes: hold, full open, full close on loss of air or power.

②Real‑time monitoring of valve position, air supply, and actuator health with alarm output.

6.Compact & Robust

Die‑cast aluminum housing, high vibration resistance, suitable for small actuators.

Associated Products

Honeywell Positioner

Honeywell limit switch

LS Series

General purpose limit switches with compact structure for industrial machinery.

200LS Series

Compact plug-in limit switches for installation and replacement.

SZL-WL Series

General purpose limit switches with metal housing and IP67 protection.

GLS Series (GLA, GLB, GLC, GLD, GLE, GLF, GLG, GLH, GLL)

Limit switches complying with IEC standards for industrial applications.

14CE Series

Micro limit switches with positive opening operation for safety circuits.

914CE Series

Compact miniature limit switches with high sensitivity.

NGC Series

Miniature limit switches with M12 connector and space-saving design.

SL1 Series

Ultra-slim limit switches for PCB mounting.

SSCE Series

Sealed miniature limit switches with IP67 protection.

SZL-VL-S Series

Compact limit switches with various actuator options.

LSX Series

Explosion-proof limit switches for hazardous areas.

BX / CX / EX Series

Limit switches suitable for explosive gas and dust environments.

GXS Series

Dust explosion-proof limit switches with IP67 protection.

HDLS Series

Heavy-duty limit switches for harsh industrial environments.

ZLS Series

General purpose limit switches with plastic housing.

EVN2000 Series

Compact limit switches for DIN rail mounting.

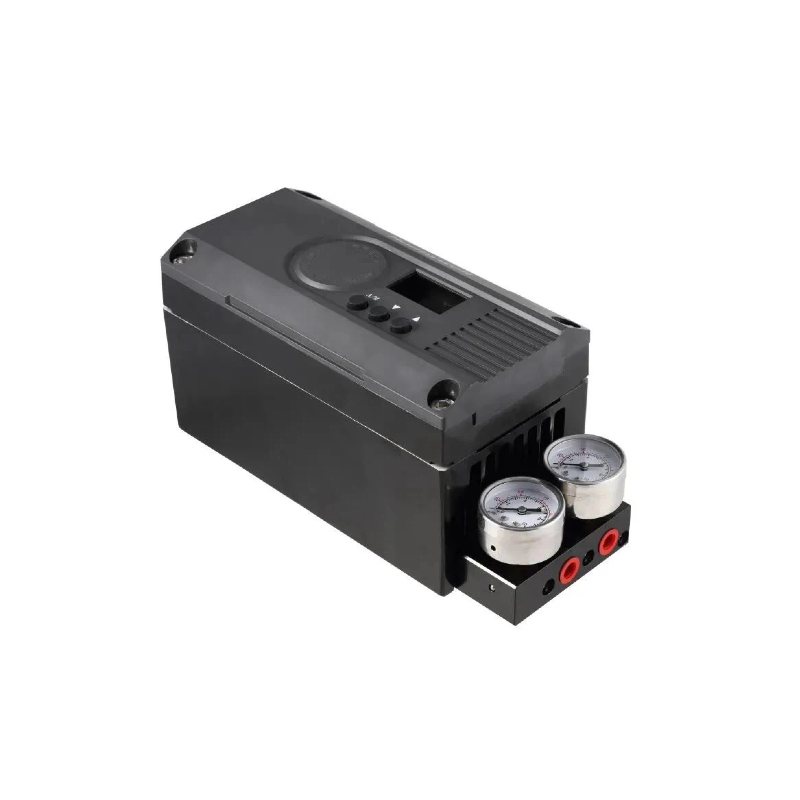

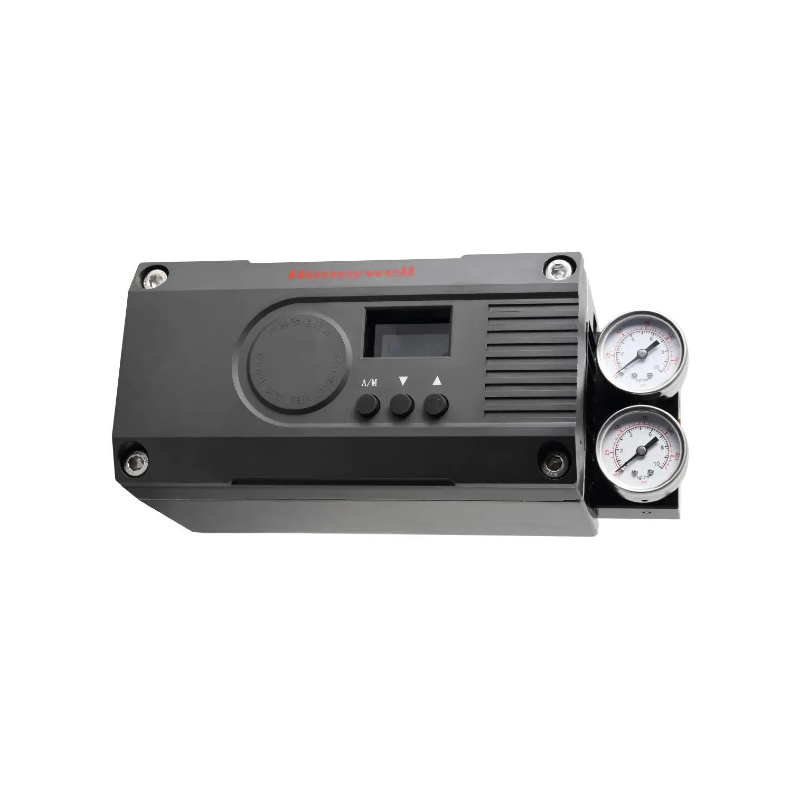

Pictures show
