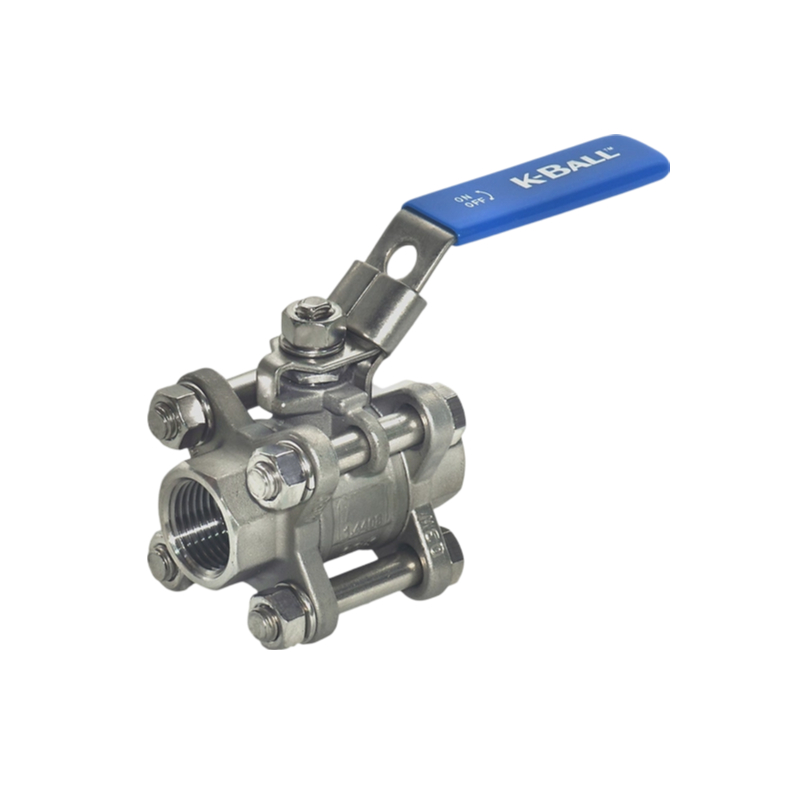

KTM K-Ball Series 155 Floating Ball Valve
Identical in construction with HP11.The K-Ball Series 155 is an economical, three-piece, full bore floating ball valve for use in a wide variety of industrial applications. The Series 155 is configurable in a number of material options with threaded, butt weld or socket weld end connections.
Features
1.Three-piece, swing-out design
2.Investment casting for body and end cap
3.Available in Carbon Steel (WCB / 1.0619) and Stainless Steel (CF8M / 1.4408) body materials
4.Blow-out proof stem
5.Locking device
6.Tightness to EN 12266-1 Rate A and API 598
7.Butt weld, socket weld and threaded ends to BSPP, BSPT and NPT
Specifications
Body Design | Three-Piece |
Material | Carbon Steel or Stainless Steel |
Operating Temperature | See data sheet under Documents below |
End Connection | Butt weld, socket weld and threaded to BSPP, BSPT and NPT |
Pressure Rating | Up to 1000 psi (PN 69) |
Valve Size | DN 8 - 50 (NPS ¼ - 2) |
Valve Size Standard | DN, NPS |
Valve Type | Ball Valve, Floating Ball Valve |
