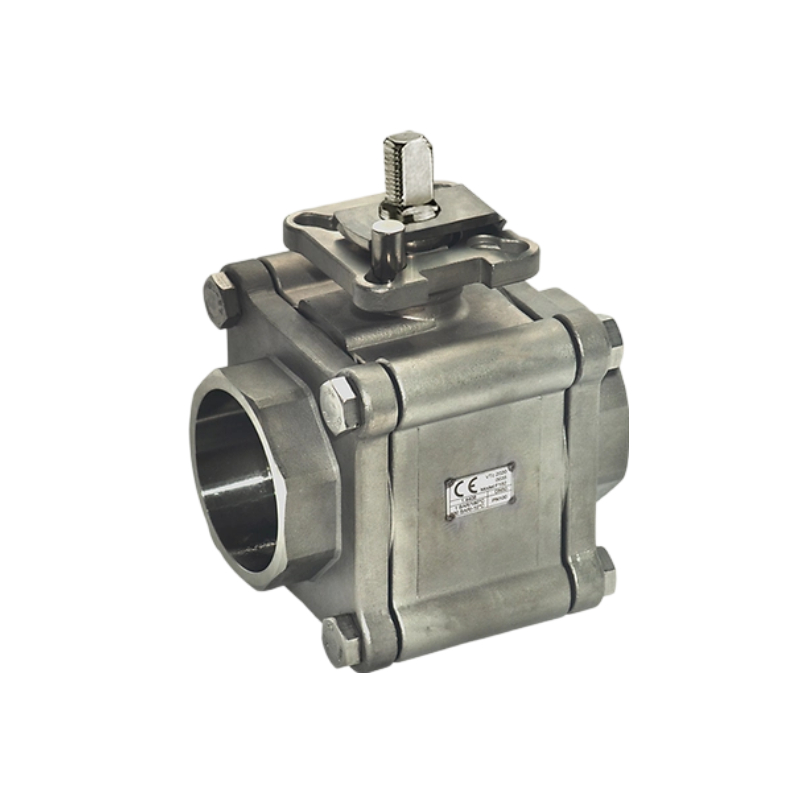

KTM K-Ball Series 182 Floating Ball Valve
The K-Ball Series 182 is a three-piece heavy duty floating ball valve for use in a wide variety of industrial applications. The Series 182 is available as firesafe certified in both full and reduced bore designs, with threaded, butt weld or socket weld end connections.
Features
1.Double shaft seal design
2.Heavy duty, three piece ball valve
3.ISO 5211 top mounting plate
4.Carbon steel or stainless steel bodies
5.Seat material options available
6.Fully enclosed bolting design
7.Full and reduced bore designs
8.Seat material options available.
9.Blow-out proof shaft and anti-static design
10.Tightness to EN 12266-1, Rate A and API 598
11.Firesafe configuration tested to API 607 7th Edition / ISO 10497:2010
Specifications
Body Design | Three-Piece |
Material | Carbon Steel or Stainless Steel |
Operating Temperature | See data sheet under Documents below |
End Connection | Butt weld, socket weld and threaded |
Pressure Rating | ASME 300 / 600 |
Valve Size | DN 8 - 100 (NPS ¼ - 4) |
Valve Size Standard | DN, NPS |
Valve Type | Ball Valve, Floating Ball Valve |
