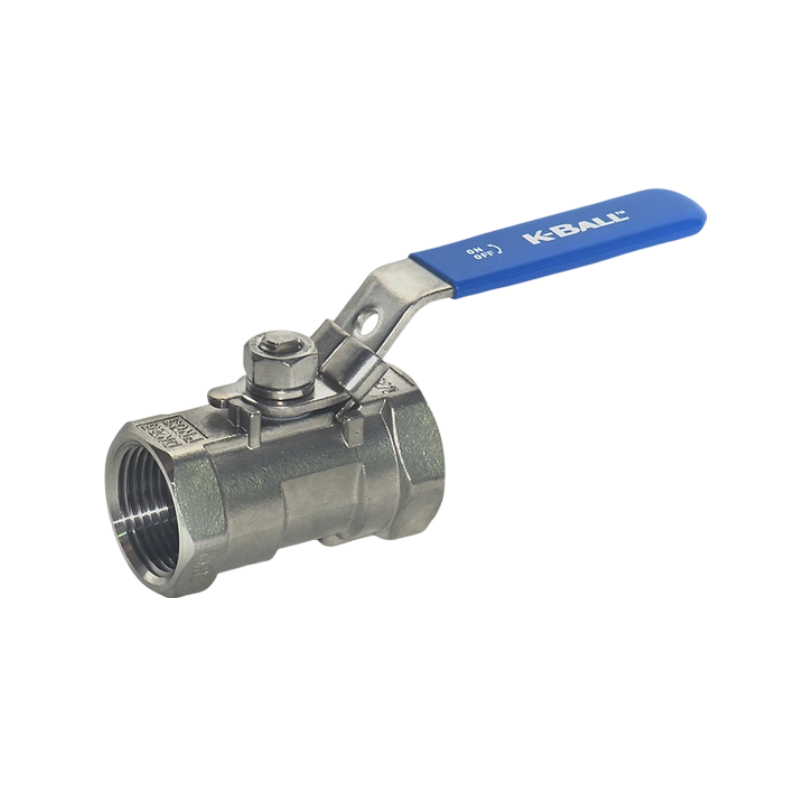

KTM K-Ball Series 110 Floating Ball Valve

The K-Ball Series 110 is an economical stainless steel floating ball valve for use in a wide variety of industrial applications. The Series 110 is available in a one-piece, reduced bore configuration.

Online consultation

Details

Features

1.Investment cast, one-piece body

2.Stainless steel construction

3.Threaded ends to BSPP, BSPT and NPT.

4.Blow-out proof shaft

5.Locking device

Specifications

Body Design	One-Piece
Material	Stainless Steel
Operating Temperature	See data sheet under Documents below
End Connection	Threaded to BSPP, BSPT and NPT
Pressure Rating	Up to 1000 psi (PN 69)
Valve Size	DN 8 - 50 (NPS ¼ - 2)
Valve Size Standard	DN, NPS
Valve Type	Ball Valve, Floating Ball Valve
