Features

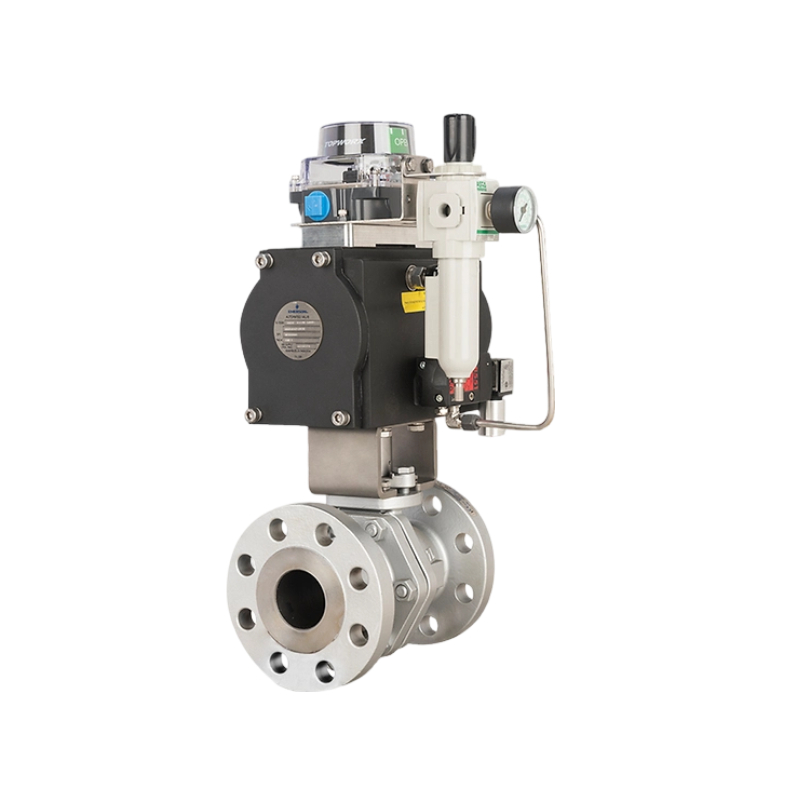

KTM Series EB1 OM-2 Split Body Floating Ball Valve

1.Superior valve design at a competitive price - The valve provides bidirectional shut-off for soft seat valves and diverse seat types, suitable for various applications.

2.The valve has been independently tested and proven to reduce emissions, contributing to a cleaner environment and compliance with regulations.

3.The valve has undergone fire testing and meets the requirements of two international standards, ensuring its safety and reliability in extreme conditions, such as those encountered in the oil and gas industry.

4.Bidirectional shut-off.

5.Valve fugitive emissions capability third party certified to ISO 15848-1.

6.Machined ISO actuator mounting pad.

7.Pure white E-seat (PTFE/PFA copolymer) seal relieves concern over product contamination.

8.Positive alignment of split body.

9.Fire test certified to API 607 5th edition and ISO 10497.

10.PTFE bearing and packing rings reduce wear.

11.Lower operating torque for ease of operation and reduced actuator cost.

12.Positive position indication.

Keystone F89 Pneumatic Quarter-Turn Actuator

1.Direct mounting to all Keystone butterfly valves and ball valves.

2.Valve connection compatible with Keystone (imperial and metric) and ISO 5211

3.Double Rack and Pinion design nullifies side loads on the pinion shaft, minimizing bearing wear and extending life.

4.Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).

5.Anodized aluminum body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.

6.Double acting and spring return versions available for cost effective and safe operation.

7.Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.

8.Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.

Emerson Powered Actuator

1.Direct mounting to all Keystone butterfly valves and ball valves.

2.Valve connection compatible with Keystone (imperial and metric) and ISO 5211.

3.Double Rack and Pinion design nullifies side loads on the pinion shaft, reducing bearing wear and extending life.

4.Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).

5Anodized aluminium body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.

6.Double acting and spring return versions available for cost effective and safe operation.

7.Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.

8.Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.

Specifications

Associated Products

KTM Series EF1

Split-body ball valves for general applications.

KTM Series EB1

Split-body ball valves with low emission certification.

KTM Series E01

Trunnion-mounted ball valves for high pressure and large flow conditions.

KTM Series PDS

Ball valves for powder discharge and bulk solids handling.

KTM Series NB / MB

3-way ball valves for flow diversion and mixing.

KTM Metaltite

Metal-seated ball valves for high temperature and erosive environments.

KTM Novatite Extreme

Ball valves suitable for cryogenic and low temperature services.
