Features

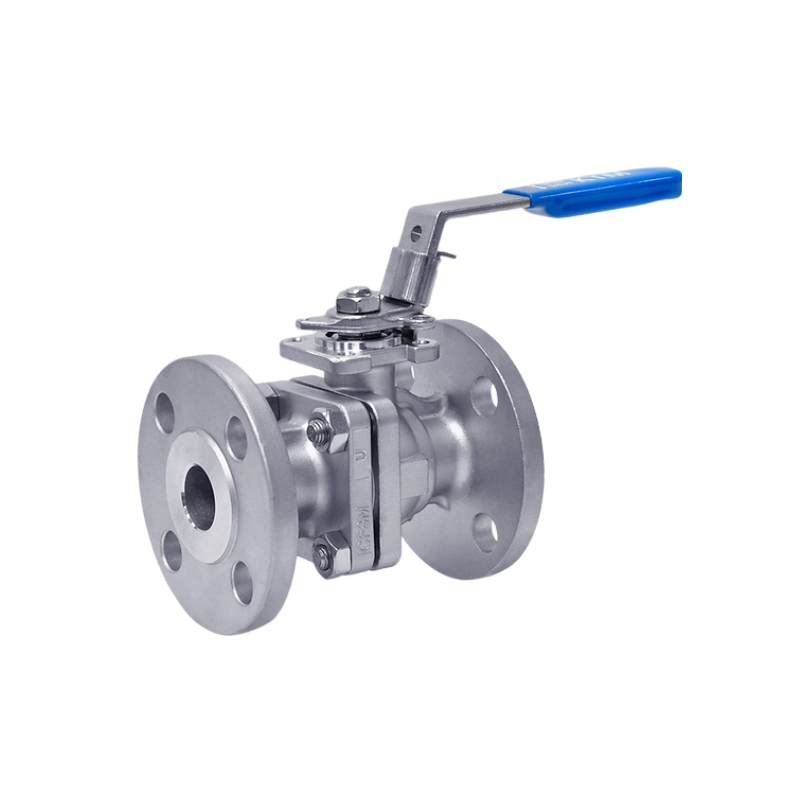

KTM Series EF1 Floating Ball Valve

1.Two piece split body valve design with flanged connections

2.Full compliance to ASME B16.34 and EN 12516-1

3.Firesafe design tested and certified to API 607 7th Edition and ISO 10497:2010

4.Fugitive emission compliant design features a double stem seal that complies with ISO 15848-1 Class BH C03 requirements (2500 cycles including thermal cycles)

5.Double shaft seal design complies with TA Luft VDI 2440 requirements

Emerson Manual Actuator

1.ENGINEERED FOR RELIABILTY – Robust construction in a variety of materials with features such as full and life-long lubrication available.

2.FLEXIBLE CONFIGURATION – Where available with the type of manual actuator, the solution can be configured with adjustable travel stops, worm and quadrant style gearboxes and anti-clockwise operation.

3.SIMPLE INSTALLATION – Modular mounting concept for easy attachment to Emerson valves and can be mounted in most orientations.

4.CUSTOMIZABLE OPTIONS – Achieve reliable efficient isolation to match your specific application with many available optional extras including chain wheels, limit switches, floor stands and security features.

Specifications

Associated Products

KTM Series EF1

Split-body ball valves for general applications.

KTM Series EB1

Split-body ball valves with low emission certification.

KTM Series E01

Trunnion-mounted ball valves for high pressure and large flow conditions.

KTM Series PDS

Ball valves for powder discharge and bulk solids handling.

KTM Series NB / MB

3-way ball valves for flow diversion and mixing.

KTM Metaltite

Metal-seated ball valves for high temperature and erosive environments.

KTM Novatite Extreme

Ball valves suitable for cryogenic and low temperature services.
