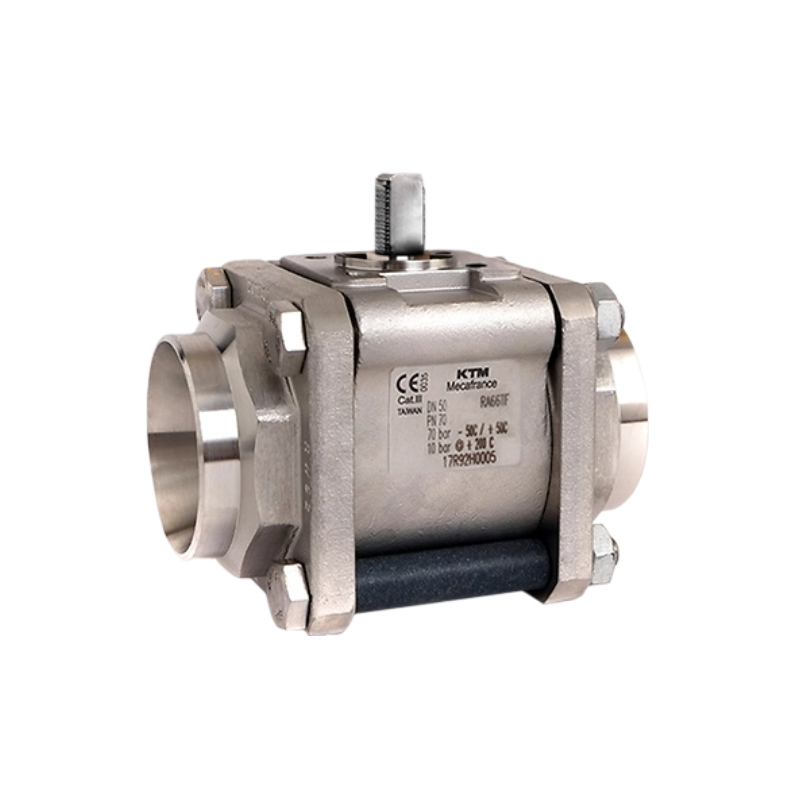

KTM Mecafrance Series RA Floating Ball Valve
The KTM Mecafrance Series RA is a three-piece ball valve with swing-out center section for easy seat and gasket replacement. The Series RA is available in full and reduced bore with a cast body in either carbon or stainless steel with an ISO top flange that allows for easy automation.
Features
1.Swing-out center section for easy seat and gasket replacement
2.Full and reduced bore configurations
3.ISO top flange for simple automation
4.Metal seated configuration for corrosive, abrasive or high temperature applications
5.Cryogenic configuration for applications to -196 °C
6.Available with antistatic device for environments with ATEX area classifications
7.Available with PED compliance
Specifications
Material | Carbon Steel, Stainless Steel |
Process Connection Type | Flanged, Socket Weld Flange, Threaded |
Seat/Seal Type | Metal, Resilient |
Valve Size | NPS 1/4 / DN 8, NPS 3/8 / DN 10, NPS 1/2 / DN 15, NPS 3/4 / DN 20, NPS 1 / DN 25, NPS 1-1/4 / DN 32, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 8 / DN 200 |
Valve Type | Ball |
