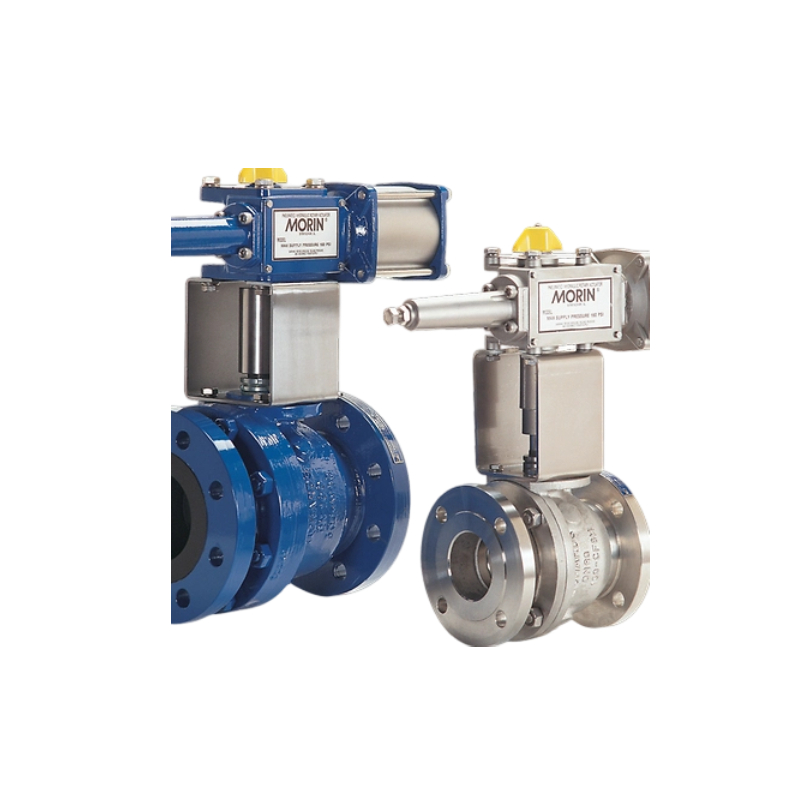

KTM R721/R723 Floating Ball Valves
A one and two piece fire safe and anti-static full bore, flanged ball valve for the chemical petroleum industries.• R721 - ASME Class 150• R723 - ASME Class 300.KTM R721/R723 are two-piece full-port flanged floating ball valves under Emerson, designed for harsh operating conditions such as petrochemical and oil & gas industries. They feature fire-safe design, low emission, anti-static properties and zero leakage, serving as the primary choice for isolation and shut-off in process pipelines.
Features
1.Designed to ASME B16.34, API 608 and ISO 17292. Optional testing to API 6D / ISO 14313
2.Two piece bolted body design complies with ASME B16.34 and ASME VIII.
3.ISO 5211 top mounting flange.
4.Face to face to ASME B16.10
5.Fire safe tested and certified to API 607 by Lloyd’s Register Asia.
6.Flange connection to ASME B 16.5 as standard.
7.Carbon steel or stainless steel body
8.All valves are factory hydro/air tested to API 598
9.Blow-out proof shouldered stem.
10.Anti-static to API 608.
11.A secondary metal “fire safe“ seat.
12.Cantilevered block seat as standard.
Associated Products
KTM Series EF1
Split-body ball valves for general applications.
KTM Series EB1
Split-body ball valves with low emission certification.
KTM Series E01
Trunnion-mounted ball valves for high pressure and large flow conditions.
Ball valves for powder discharge and bulk solids handling.
KTM Series NB / MB
3-way ball valves for flow diversion and mixing.
KTM Metaltite
Metal-seated ball valves for high temperature and erosive environments.
KTM Novatite Extreme
Ball valves suitable for cryogenic and low temperature services.
