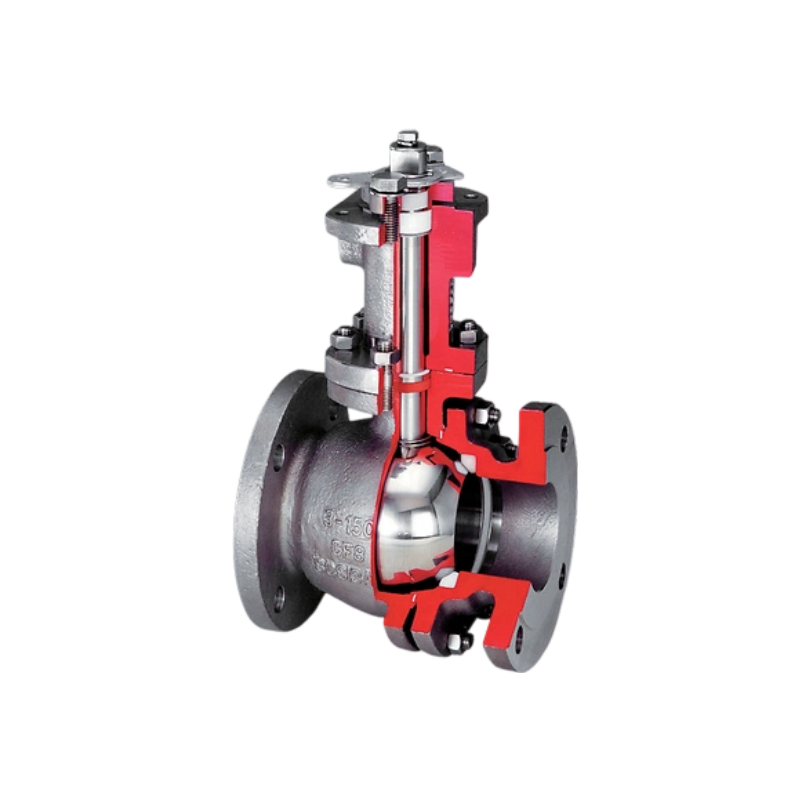

KTM Model Cryogenic
KTM ball valves have been widely used in low temperature and cryogenic applications, including LNG (Liquefied Natural Gas) which is fast becoming a better alternative source of energy.
Features
1.Two types of extension bonnet lengths available to optimize the location of the gland packing at ambient temperature thus preventing freeze-damage by low temperature fluid
2.Cavity pressure self relief construction
3.Excellent seat and seal design reduce leakage
4.Low operating torque for smooth operations
5.Fire safe design available for flammable applications
6.Fugitive emissions control for flammable and non-flammable applications
7.Rigid body construction to reduce thermal shrinkage
Specifications
Certifications | CE, CRN, Fire Safe, Fugitive Emission, Lloyd's Register, SIL capable, PED, KGS, NACE |
End Connection | Flanged |
Application | Low Temp, Cryogenics and Refrigeration, Fuel Management Systems, LNG Carrier, Low Temperature, Storage & Distribution |
Body Design | Long Pattern, Side Entry |
Material | 304 Stainless Steel, 316 Stainless Steel |
Operating Temperature | Cryogenic, Low Temperature, Less Than 200°C |
Pressure Class | ASME |
Process Connection Type | 150RF, CL150RF, 300RF, CL300RF |
Seat/Seal Type | Ball, Soft Seal |
Shutoff Class | API 598 |
Standards | API 608, ASME B16.34 |
Valve Size | NPS 1/2 / DN 15, NPS 3/4 / DN 20, NPS 1 / DN 25, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200 |
Valve Size Standard | DN, NPS |
Valve Type | Floating Ball Valve, Ball Valve |
Media | Cryogenic, Liquid Propane, Liquid Propane Gas |
