KTM Model Steam Jacketed

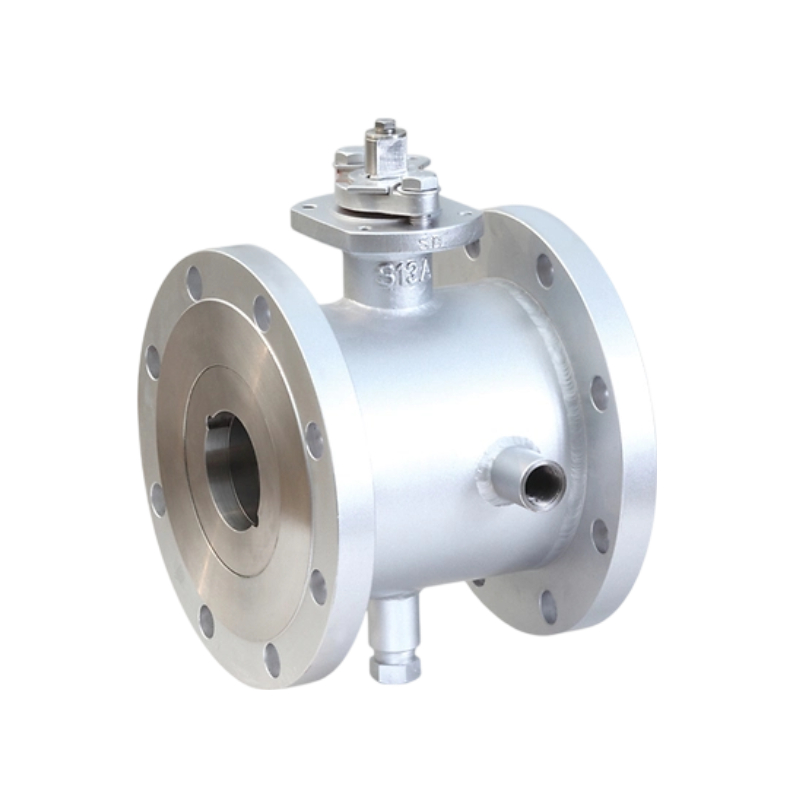

KTM jacketed ball valve, designed with full flange to flange welded jacket, to effectively maintain the temperature of the media.KTM Steam Jacketed is a fully jacketed insulated ball valve exclusively designed by Emerson for media that are prone to solidification, high-viscosity, and require constant temperature. Its core lies in the flange-to-flange fully welded jacket, which is temperature-controlled by steam or heat transfer oil, solving the problems of solidification and clogging of media such as asphalt, heavy oil, wax, and resin.
Features
1.Enhanced design with proven OM-II internal design features for safety, sealing integrity and reliability
2.Full jacketed design effectively maintains the temperature of the media
3.High-pressure resistant jacket for supply of steam or cooling media up to 1.0 MPa (145 psi)
4.Reinforced PTFE bearing and packing rings for superior performance
5.Split construction of cap and seat holder simplifies maintenance
6.Compact and light-weight design
7.Machined ISO 5211 top mounting flange
8.Positive position indicator
9.Blow-out proof shaft (DN 100/ NPS 4 and larger)
10.Shaft seals positioned low on the shaft to avoid fluid from sticking, reducing excessive torque and shaft torsion
11.In addition to standard E-seat, various seats are available. Each seat option will allow a wide range of performance, suitable for many applications
PTFE / PFA copolymer: E-seat (standard)
PEEK seat (option)
Gratite® seat (option)
Specifications
Certifications | Fire Safe, PED, Fugitive Emission, CE, SIL capable |
End Connection | Flanged |
Application | Asphalt Blending, Batch, Lube Blending, Machines, Product Blending, Mixing/Stirring, Product Transfer, Refining |
Body Design | Long Pattern |
Material | 316 Stainless Steel, Carbon Steel |
Pressure Class | ASME |
Process Connection Type | CL150RF, CL300RF, Flanged, 300RF, 150RF |
Seat/Seal Type | Ball, Metal-to-Metal, Soft Seal |
Shutoff Class | Class V (FCI 70-), API 598, Zero Leakage, Class VI (FCI 70-) |
Standards | ASME B16.34, API 608 |
Valve Size | NPS 1 / DN 25, NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 3/4 / DN 20, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200 |
Valve Size Standard | DN, NPS |
Valve Type | Ball, Floating Ball Valve |
Media | Aggressive Liquids/Gases, Liquids |
Associated Products
KTM Series EF1
Split-body ball valves for general applications.
KTM Series EB1
Split-body ball valves with low emission certification.
KTM Series E01
Trunnion-mounted ball valves for high pressure and large flow conditions.
KTM Series PDS
Ball valves for powder discharge and bulk solids handling.
KTM Series NB / MB
3-way ball valves for flow diversion and mixing.
KTM Metaltite
Metal-seated ball valves for high temperature and erosive environments.
KTM Novatite Extreme
Ball valves suitable for cryogenic and low temperature services.
