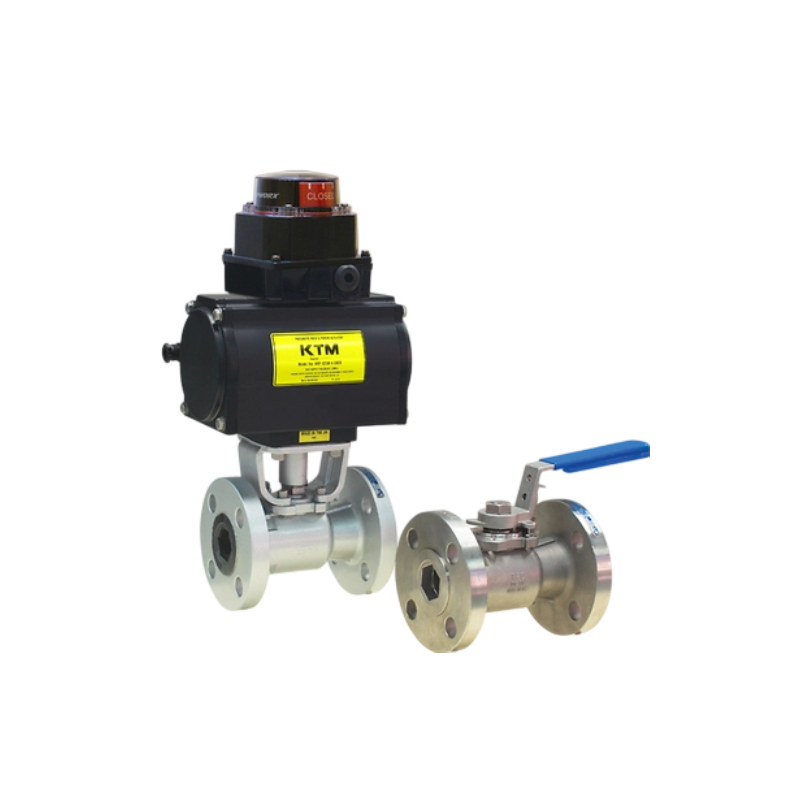

KTM Series EB7 Unibody Floating Ball Valve
The KTM EB7 is a unibody side‑mounted floating ball valve under Emerson. It features zero leakage, high rigidity, fire safety, and easy automation. Designed specifically for harsh process applications such as petroleum, natural gas, petrochemical, and chemical industries, its core advantages include a no‑middle‑flange structure and zero leakage path.
Features
1.Designed to ASME B16.34, API 608 and ISO 17292.
2.Optional testing to API 6D / ISO 14313.
3.Single piece end entry body design complies with ASME B16.34.
4.ISO 5211 top mounting flange.
5.Face to Face to API 6D/ASME B16.10/BS 2080/BS EN 558.2.
6.Fire tested to API 607 6th edition.
7.Flange connection to ASME B16.5 as standard.
8.One piece body offers total pipe integrity minimizing the number of potential leak paths.
9.Carbon steel or stainless steel body as standard.
10.Precision 316 stainless steel ball as standard.
11.Blowout proof shouldered stem.
12.Anti-static device.
Specifications
Certifications | Regional, PED, CE |
End Connection | Flanged |
Application | Evaporators & Recovery Boiler, Facilities & Process Utilities, Enhanced Oil Recovery, Waste to Energy, Dryers & Evaporators, Distillation & Fractionation |
Body Design | Long Pattern, Short Pattern, Side Entry |
Material | Carbon Steel, 316 Stainless Steel |
Pressure Class | ASME |
Process Connection Type | CL300RF, 300RF, CL150RF, 150RF, Flanged |
Seat/Seal Type | Ball, Soft Seal |
Shutoff Class | API 598, Zero Leakage |
Standards | API 608, ASME B16.34 |
Valve Size | NPS 1/2 / DN 15, NPS 3/4 / DN 20, NPS 1 / DN 25, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200 |
Valve Size Standard | NPS, DN |
Valve Type | Floating Ball Valve, Ball |
Media | Liquids, Liquid Propane, Liquid, Light Oil, Hot Water |
