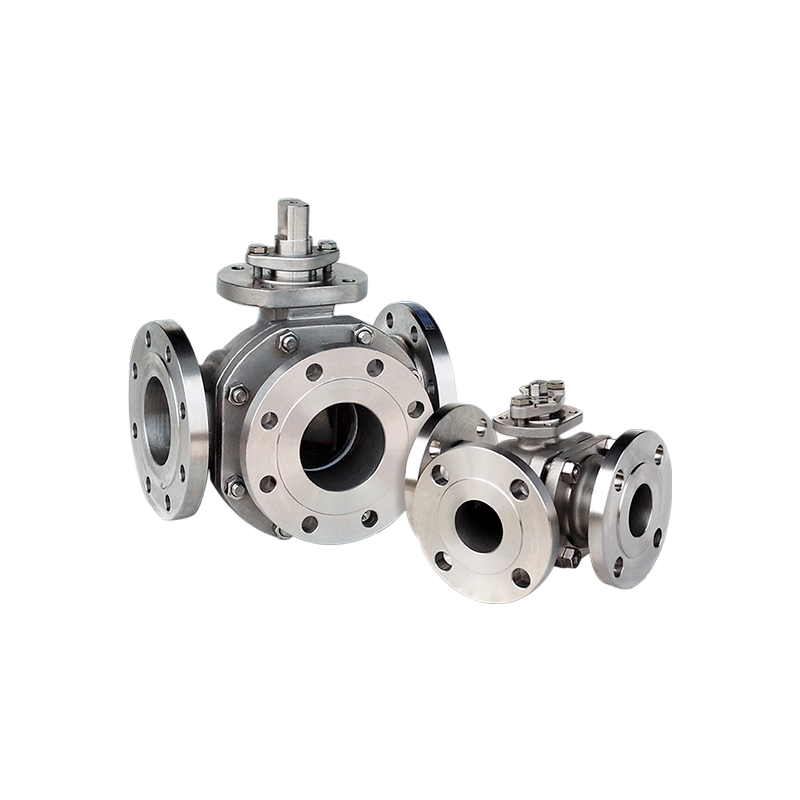

KTM Series MB1 Three Way Floating Ball Valve
The KTM MB1 is a four-seat, three-way floating ball valve under Emerson. It mainly features fluid splitting/combining, two-way sealing, and easy automation. It can replace multiple two-way valves, simplify pipelines, save space, and is suitable for process control scenarios in chemical, oil and gas, food, pharmaceutical, and other industries.
Features
1.Positive alignment of body.
2.Blow-out proof stem for safety.
3.Sphericity tolerance of the ball is unsurpassed.
4.Multiple layers of adjustable PTFE chevron packing rings for standard model enable excellent fugitive emission control.
5.Positive position indication.
6.Locking device capable.
7.Heavy duty body construction.
8.Machined ISO 5211 top mounting flange.
9.Live load springs keep constant force on stem-seal packing, ensuring seal integrity and extended valve life.
10.Dual shaft bearings for high cycle life operation.
11.Higher Cv values and less cost for diverting which can be normally done with multiple installation of valves.2 seats feature OM2 compatible, co-polymer E-seat as standard. Machined firesafe lip for metal touch to ball in case of fire. It also eliminates
Specifications
Certifications | CE, CRN, Fugitive Emission, SIL capable, PED |
End Connection | Flanged |
Application | Asphalt Blending, Batch, Beverages, Biofuels, Filling, Fluid Control, Geothermal, Industrial Service, Product Transfer, Product Blending, Mixing/Stirring, Lube Blending |
Body Design | Side Entry, Long Pattern |
Material | Carbon Steel, 316 Stainless Steel |
Operating Temperature | High Temperature |
Pressure Class | ASME |
Process Connection Type | CL150RF, 150RF, 300RF, CL300RF, Flanged |
Seat/Seal Type | Soft Seal, Ball |
Shutoff Class | API 598, Zero Leakage |
Standards | ASME B16.34, API 608 |
Valve Size | NPS 1 / DN 25, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 10 / DN 250 |
Valve Size Standard | NPS, DN |
Valve Type | Ball, Floating Ball Valve, Three-Way Valve |
Media | Aggressive Liquids/Gases, Air, Ammonia, CNG, Fuel Oil, Hot Water, Light Oil, Liquid, Liquid Propane, Liquid Propane Gas, Liquids, LPG, Mineral Oil, Natural Gas, NH3, NH3 (Anhydrous Ammonia), Specialty Gases |
