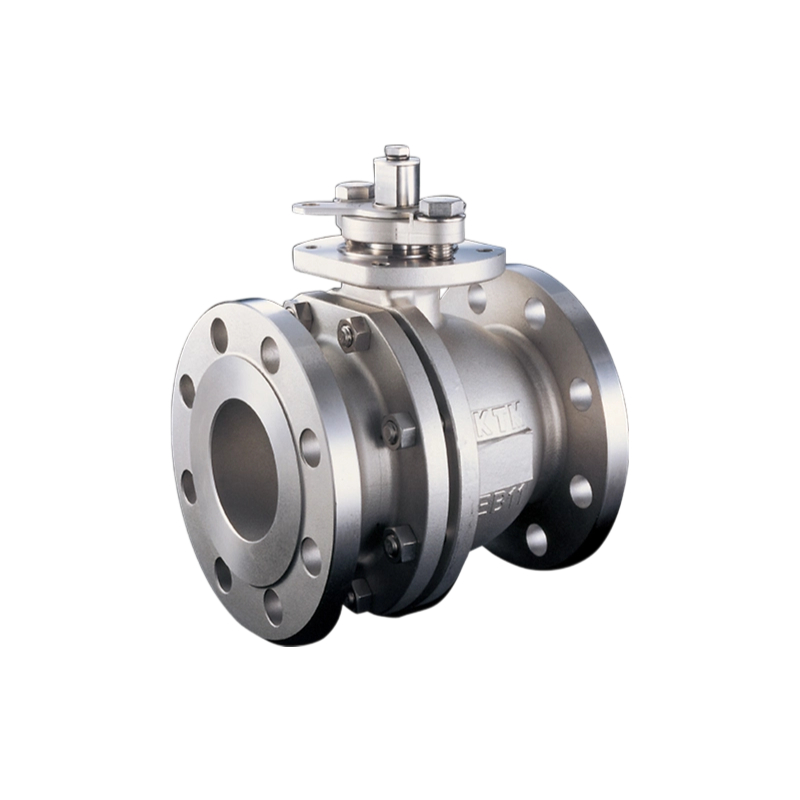

KTM Series EB1 OM-2 Split Body Floating Ball Valve
KTM EB1 OM‑2 is a split-body floating ball valve under Emerson. It mainly features low emission, bidirectional zero leakage, and easy automation. It is suitable for general and harsh working conditions with high requirements for sealing and environmental protection, such as chemical industry, oil and gas, petrochemical industry, and gas industry.
Features
1.Superior valve design at a competitive price.
2.Fugitive emissions control for flammable and non-flammable applications.
3.Valve fugitive emissions capability third party certified to ISO 15848-1.
4.Machined ISO actuator mounting pad.
5.Pure white E-seat (PTFE/PFA copolymer) seal relieves concern over product contamination.
6.Positive alignment of split body.
7.Fire test certified to API 607 5th edition and ISO 10497.
8.PTFE bearing and packing rings reduce wear.
9.Lower operating torque for ease of operation and reduced actuator cost.
10.Positive position indication.
11.Blowout-proof shaft.
12.NACE MR-01-75 available on request.
Specifications
Certifications | SIL capable, CE, PED, Fire Safe |
End Connection | Flanged |
Application | Blowers, Bioreactor, Biomass Boiler and Power Boiler, Boilers, Beverages, Brewing, Burners, Bulk Storage, High Temp, General Service, Gas Gathering and Compression, Fueling, Fuel Management Systems, Fuel Gas, FPSO, Facilities & Process |
Body Design | Side Entry, Long Pattern |
Material | Stainless Steel, Low Temp Carbon Steel, Inconel, Hastelloy, Carbon Steel, 316 Stainless Steel, 304 Stainless Steel, Alloy |
Operating Temperature | -330 to 842°F (-200 to 450°) |
Pressure Class | ASME |
Process Connection Type | Flanged, CL300RF, CL150RF, 300RF, 150FF |
Seat/Seal Type | Soft Seal, Metal-to-Metal, Ball |
Shutoff Class | API 598, Class VI (FCI 70-), Class V (FCI 70-), Zero Leakage, Rate D (ISO 520) |
Standards | ASME B16.34, API 608 |
Valve Size | NPS 1/2 / DN 15, NPS 3/4 / DN 20, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 10 / DN 250 |
Valve Size Standard | NPS, DN |
Valve Type | Floating Ball Valve, Ball Valve, Automated Ball Valve |
Media | Steam, Water Glycol, Aggressive Liquids/Gases, Air, Water, Vacuum, Specialty Gases, Solid, Oxygen, NH3 (Anhydrous Ammoni), Natural Gas, Mineral Oil, LPG, Liquid Propane Gas, Light Oil, Hot Water, Fuel Oil, Crude Oil |
