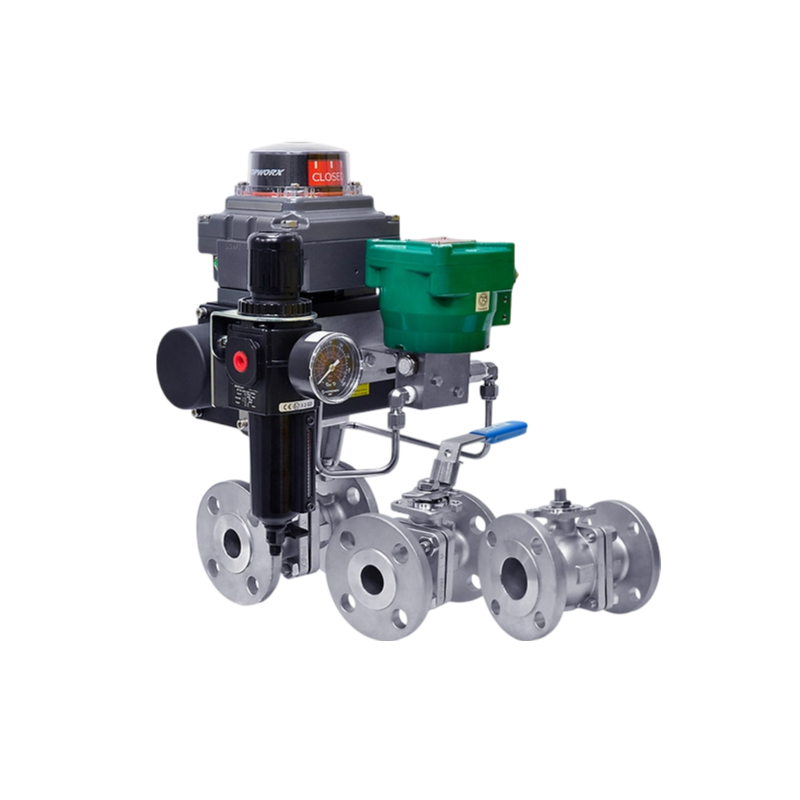

KTM Series EF1 Floating Ball Valves
The KTM Series EF1 split body flanged ball valve is a general purpose ball valve available in a variety of material configurations and features the patented SEALMASTER shaft seal that provides exceptional fugitive emissions performance.
Features
1.Two piece split body valve design with flanged connections
2.Full compliance to ASME B16.34 and EN 12516-1
3.Firesafe design tested and certified to API 607 7th Edition and ISO 10497:2010
4.Fugitive emission compliant design features a double stem seal that complies with ISO 15848-1 Class BH C03 requirements (2500 cycles including thermal cycles)
5.Double shaft seal design complies with TA Luft VDI 2440 requirements
Specifications
Body Design | Two-Piece |
Material | Carbon Steel or Stainless Steel |
Operating Temperature | See data sheet under Documents below |
End Connection | Flanged |
Pressure Rating | PN 10/16, PN 25/40, ASME 150/300 |
Valve Size | DN 15 - 300 (NPS ½ - 12) |
Valve Size Standard | DN, NPS |
Valve Type | Ball Valve, Floating Ball Valve |
