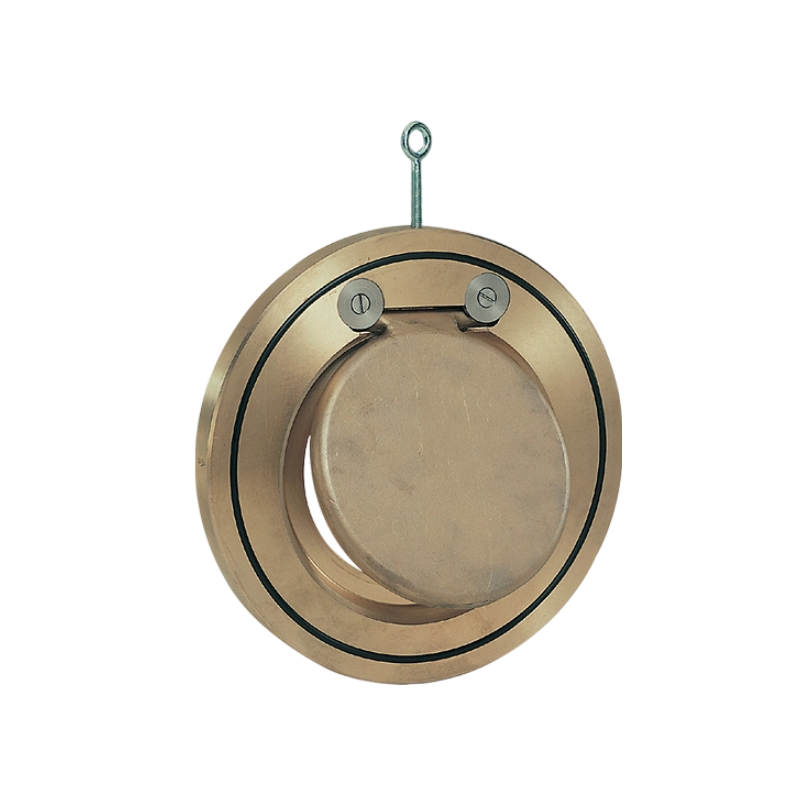

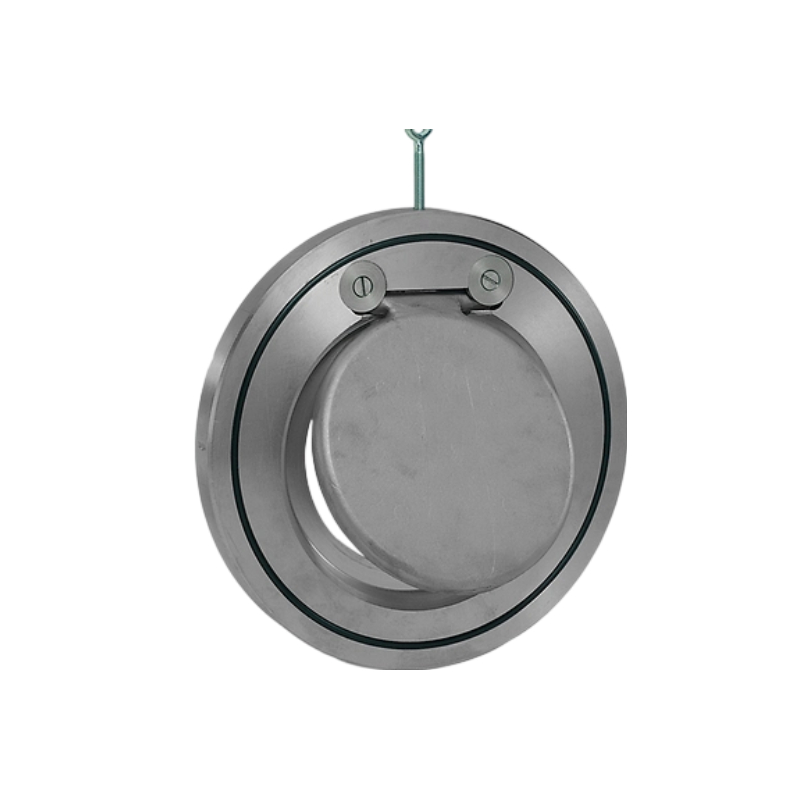

Keystone Figure 85 Check Valve
The Keystone Figure 85 is a wafer style swing check valve with short face-to-face dimensions and is suitable for use in a range of gas and liquid applications.
Features
1.The compact wafer thin body provides extreme low weight.
2.Small width of body allows installation between various flange standards.
3.Seating O-ring placed in dove-tail groove of disc is easily replaceable.
4.Low pressure shut-off.
5.This check valve offers positive shut-off even at very small differential pressure, due to rotational axis location. Disc weight acts to fully close valve.
Specifications
Sizes (DN) | 40-300 |
Temp. (°C) | -60 to +204 |
Pressure (bar) | 16 |
Flange accomm. | PN 10/16, ASME 150 |
