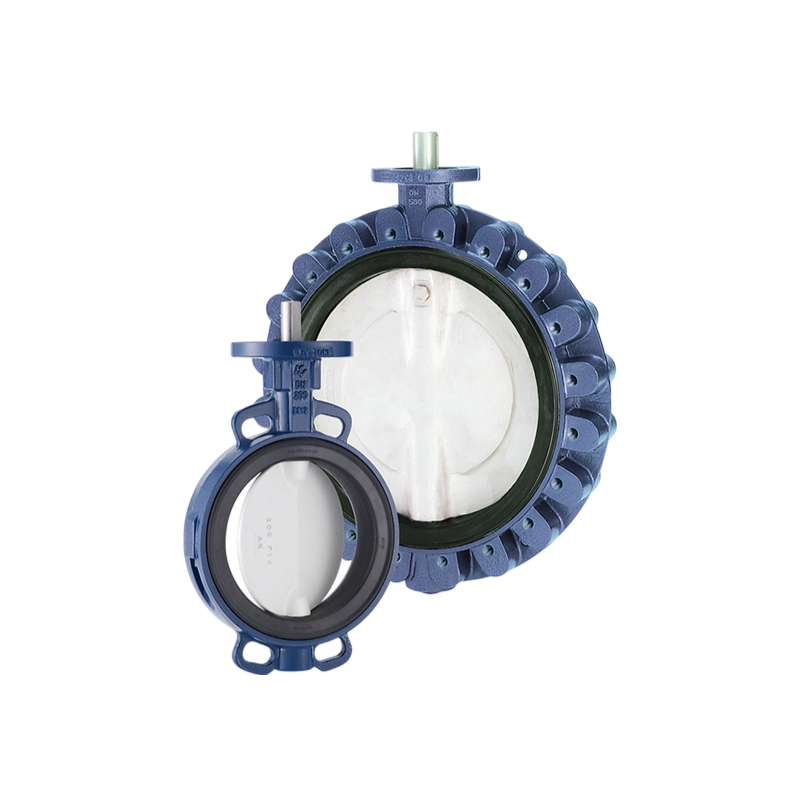

Features

1.Top bushing absorbs actuator side thrust loads.

2.Actuator flange acc. ISO 5211.

3.High solid, glossy, silicone free, paint system ensuring excellent corrosion resistance.

4.Extended body neck allows pipe insulation.

5.Body locating holes ease installation and centering between the flanges.

6.Rounded polished disc edge gives full concentric sealing, lower torques, longer seat life and bubble-tight shut-off.

7.The seat is field replaceable and fully isolates the body and stem from the flow.

8.Primary stem sealing exceeds the pressure rating of the valve and prevents leakage through shaft area to atmosphere.

9.A secondary shaft sealing provides back‑up safety.

10.No flange gaskets required.

11.High Cv value.

12.Top and bottom shaft bearings for optimized support and small friction in all body materials up to DN 300, except cast iron.
