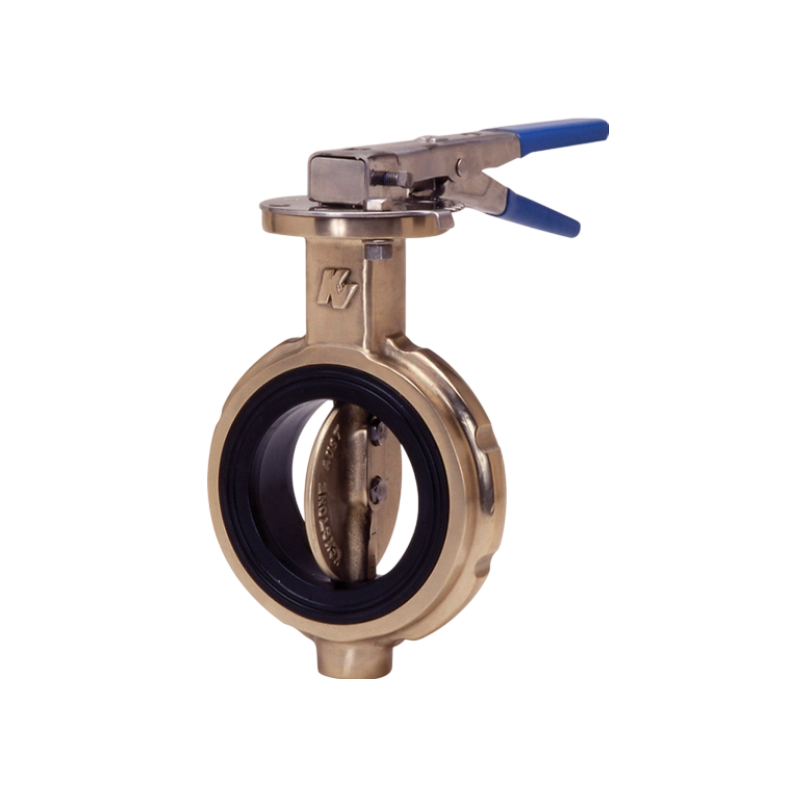

Keystone Figure 139 Butterfly Marine Valve
The F139 is a wafer-type resilient seated butterfly valve designed specifically for marine/offshore platforms, ballast water, fire sprinkler, and seawater systems. It features resistance to seawater corrosion, bubble-tight shutoff, military-grade shock and vibration resistance, and fire safety certification. It meets the MIL‑V‑22133C naval standard and is suitable for offshore platforms, ship ballast tanks, fire deluge systems, as well as onshore industrial working conditions.
Features
1.MIL-S-901C.
2.MIL-STD-167B.on selected trims only.Fire tested by Lloyds Register Certificate No. HOU-1094.
Specifications
Certifications | ABS |
End Connection | Wafer |
Application | Air Circulation, Ballast Control, Facilities & Process Utilities, Bulk Carrier |
Material | Cast Iron, Ductile Iron, EPDM Rubber, Buna-N, Aluminum Bronze, 316 Stainless Steel |
Operating Temperature | Up to 350 F (180 C) |
Pressure Class | ASME |
Process Connection Type | 150RF |
Seat/Seal Type | Resilient |
Shutoff Class | Zero Leakage |
Standards | ASME B16.34, API 609 |
Valve Size | NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 10 / DN 250, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 20 / DN 500, 5 inch |
Valve Size Standard | NPS |
Valve Type | Butterfly |
Media | Water, Vacuum, Air |
Stem | O-ring |
