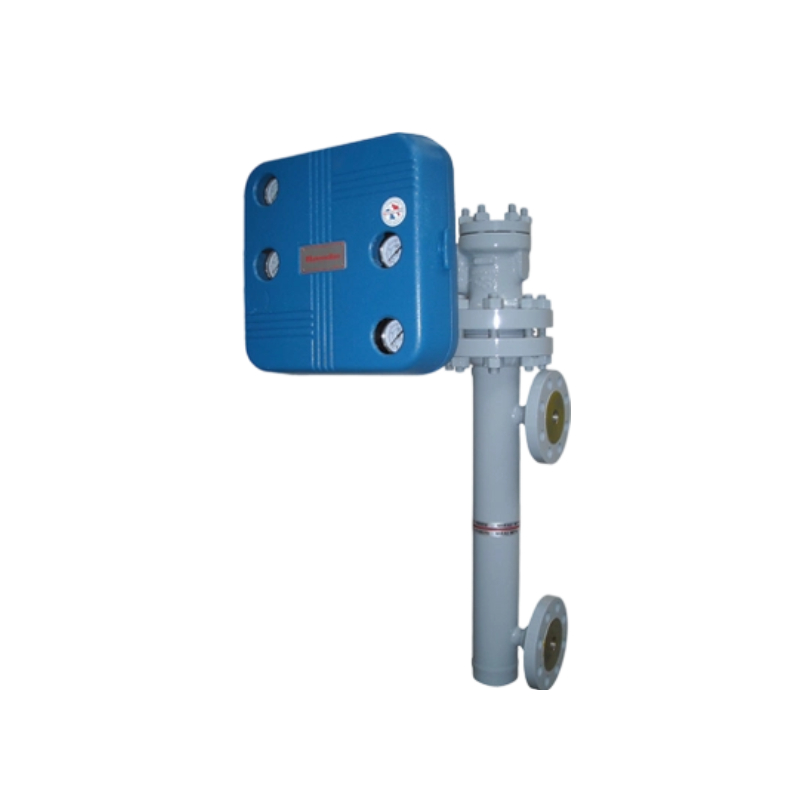

Masoneilan 12800 Series Pneumatic Level Transmitter / Controller
The 12800 Series pneumatic level controllers are used to control and/or transmit the level in a tank with one or two fluids (interface service).The Masoneilan 12800 Series is a pneumatic displacer‑type level transmitter and controller designed for stable liquid level, interface and density measurement in industrial process applications. Based on proven buoyancy and torque‑tube technology, it delivers reliable pneumatic output signals for level monitoring and control, suitable for use in non‑electrical, remote and hazardous locations across oil & gas, refining, petrochemical and utility systems.
Features
1.Pneumatic operation with no external electrical power required
2.Proven torque‑tube and displacer structure for stable measurement
3.Supports level, liquid‑liquid interface and density detection
4.Rugged construction for high pressure and temperature conditions
5.Wide material and pressure rating options for diverse applications
6.Simple field calibration and easy maintenance
7.Compact design for flexible installation in limited spaces
8.Compatible with standard industrial pneumatic control systems
9.Reliable performance in harsh and demanding environments
Specifications
Range:
14” through 120” (355 through 3048 mm)
Ratings and connections:
flanged: ANSI 150 – 2500, UNI-DIN 10 - 100; screwed: NPT-F (1 1/2”, 2”); welded
Body materials:
carbon steel; stainless steel; chrome-moly
Displacer materials:
stainless steel; other materials on request
Torque Tube materials:
Inconel; stainless steell other materials on request
