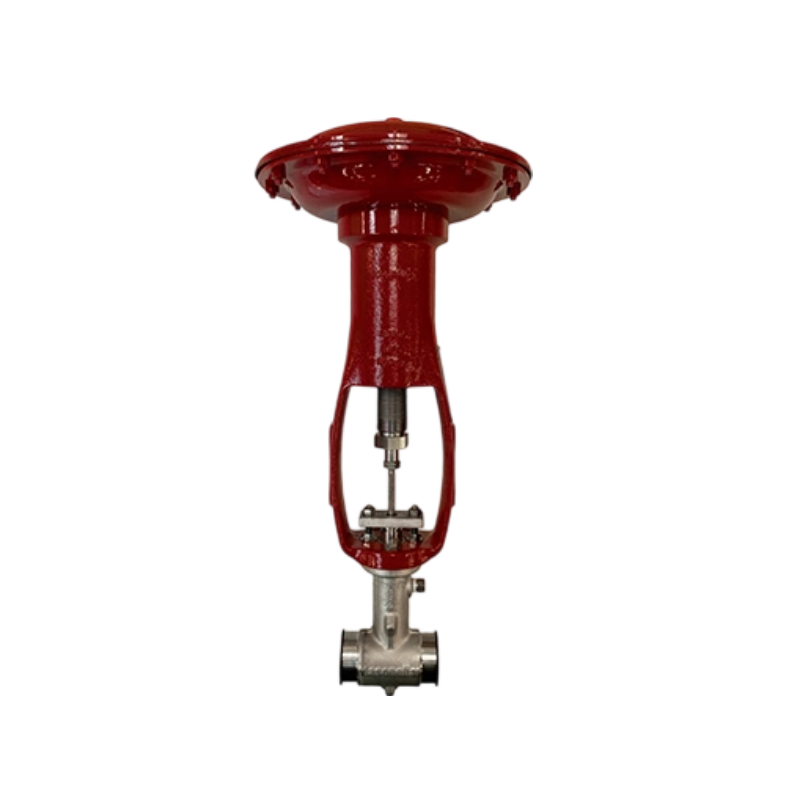

Masoneilan 535V Series Pressure Reducing & Differential Pressure Regulator
The Masoneilan Model 535V pressure regulators are designed to provide accurate reduced pressures of air, liquid, saturated and superheated steam. Model 535V is available in sizes ½” , ¾” and 1”, with full area and reduced trim to handle the small-to-moderate microflow flow applications. For temperatures over the rating of the diaphragm material, the regulator must be mounted with the actuator below the centerline of the regulator body. The diaphragm will be protected from the high temperature by a condensate barrier in the sensing line and actuator diaphragm case. If installed otherwise, an adequate condensate barrier must be incorporated. Consult factory for more information.
Features
1.Precision design optimized for micro-flow pressure reduction
2.Supports both pressure reducing and differential pressure control
3.High sensitivity for stable regulation at low flow rates
4.Compact structure for installation in small-scale systems
5.Self-contained operation without external power or air supply
6.Stable control with minimal hysteresis and overshoot
7.Simple adjustment and easy in-line maintenance
8.Corrosion-resistant construction for long service life
9.Suitable for clean liquids, gases, and light process fluids
Specifications
Function
Pressure Reducing 535V
535V -50 Differential Pressure
Service
Steam, Gas, Liquids
Size
1/2”, 3/4”, 1”
Body
Type : Standard 28000 Series Body with Integral Bonnet except for end-to-end 102mm Flanged body.
Flow Direction: Flow-to-Open
Bonnet
Type : Integral Bonnet
Body and Bonnet
Materials : Steel 316, Stainless Steel
Ratings & Connections
Flanged: ANSI 150 - 600
Flangeless
Screwed: NPT
Trim
Full stellite needle plug
Multistep anti-cavitation trim available
Inherent Characteristics
Linear
Actuator
Type : 10900 Series
Associated Products
SVI1000 Single-acting Intelligent Positioner, HART Protocol
SVI1000/G With Pressure Gauge
SVI1000G/IM With Pressure Gauge and Integrated Magnet
SVI1000G/IM/PR With Pressure Gauge, Integrated Magnet and Valve Position Feedback Module
SVI1000G/IM/SW With Pressure Gauge, Integrated Magnet and Limit Switch
SVI*FF Intelligent Positioner, FF Bus Protocol
SVI2AP-21113111 Single-acting Intelligent Positioner, HART Protocol
SVI2AP-21113121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback
SVI2AP-21123111 Single-acting Intelligent Positioner, HART Protocol, with On-site LCD Display
SVI2AP-21123121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display
SVI2AP-22113111 Double-acting Intelligent Positioner, HART Protocol
SVI2AP-22113121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback
SVI2AP-22123111 Double-acting Intelligent Positioner, HART Protocol, with On-site LCD Display
SVI2AP-22123121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display
SVI3 Series Newly Upgraded Intelligent Positioner
78-40 Filter Regulator, 08-80H Retainer Valve
4000/IP Electro-pneumatic Transducer
BR200 BR400 Pneumatic Amplifier
496 Series Electric Rotary Switch
