Features

1.Axial Flow LincolnLog™ design with tortuous flow path to distribute pressure drop along the plug axis

2.Multi-stage axial throttling at all plug lift positions to maintain stable staging ratios

3.Controlled flow velocity and pressure drop to prevent cavitation and trim damage

4.Stable and predictable throttling performance across operating range

5.Ideal for pump recirculation and high-pressure liquid letdown services

6.Suitable for hydrotreater and other high-pressure process applications

Specifications

Size

1” through 12” (25 through 300 mm)

Ratings & Connections

flanged: ANSI 600 - 2500 UNI-DIN 100 - 400; welded: BW or SW

Pressure Rating

API 6A 10K or 15K in sizes 1" through 6"

Body Materials

carbon steel; stainless steel; chrome-moly

Options include: F6NM Martensitic Stainless Steel, F51 Duplex Stainless Steel, F55 Duplex Stainless Steel and Nickel-Alloy Inconel 718

Actuators

model 51/52/53 pneumatic piston; model 87/88 multi-spring-opposed diaphragm; cylinder

Trim

axial flow technology; multi-stage, cage-guided, anti-cavitation trim; Class VI available on request

Inherent Characteristics

linear

Associated Products

SVI1000 Single-acting Intelligent Positioner, HART Protocol

SVI1000/G With Pressure Gauge

SVI1000G/IM With Pressure Gauge and Integrated Magnet

SVI1000G/IM/PR With Pressure Gauge, Integrated Magnet and Valve Position Feedback Module

SVI1000G/IM/SW With Pressure Gauge, Integrated Magnet and Limit Switch

SVI*FF Intelligent Positioner, FF Bus Protocol

SVI2AP-21113111 Single-acting Intelligent Positioner, HART Protocol

SVI2AP-21113121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback

SVI2AP-21123111 Single-acting Intelligent Positioner, HART Protocol, with On-site LCD Display

SVI2AP-21123121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display

SVI2AP-22113111 Double-acting Intelligent Positioner, HART Protocol

SVI2AP-22113121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback

SVI2AP-22123111 Double-acting Intelligent Positioner, HART Protocol, with On-site LCD Display

SVI2AP-22123121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display

SVI3 Series Newly Upgraded Intelligent Positioner

78-40 Filter Regulator, 08-80H Retainer Valve

4000/IP Electro-pneumatic Transducer

BR200 BR400 Pneumatic Amplifier

496 Series Electric Rotary Switch

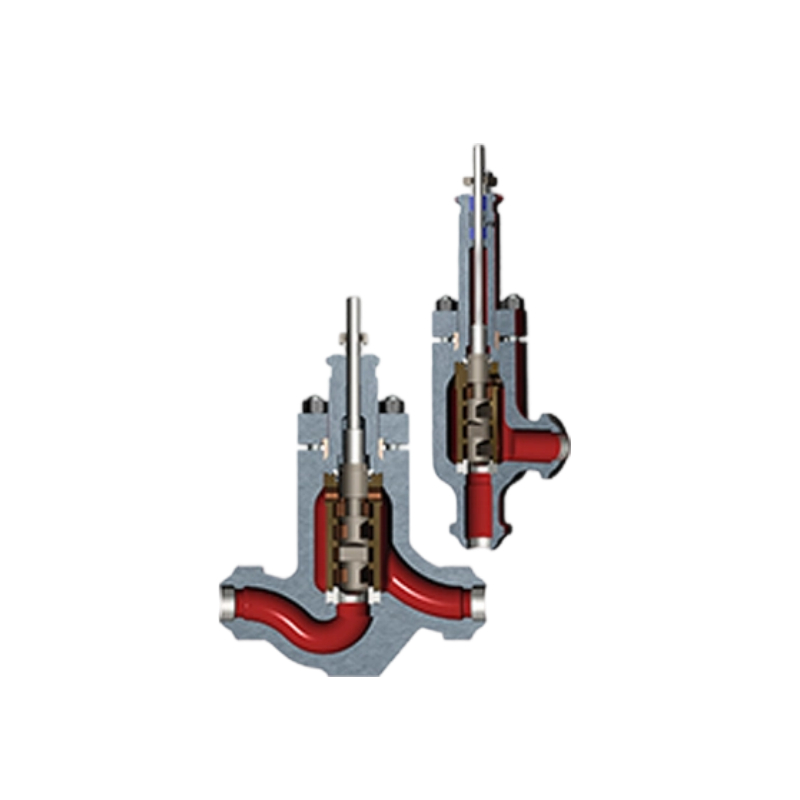

Pictures show
