Features

1.Multi‑stage expanding‑area axial flow trim for gradual pressure reduction across stages

2.Effective control in high‑pressure gas, flashing liquid, and two‑phase flow conditions

3.Reduced fluid velocity to lower erosion, vibration, cavitation, and noise levels

4.Heavy guiding system for stable alignment and consistent control performance

5.Short stroke design to support extended packing service life

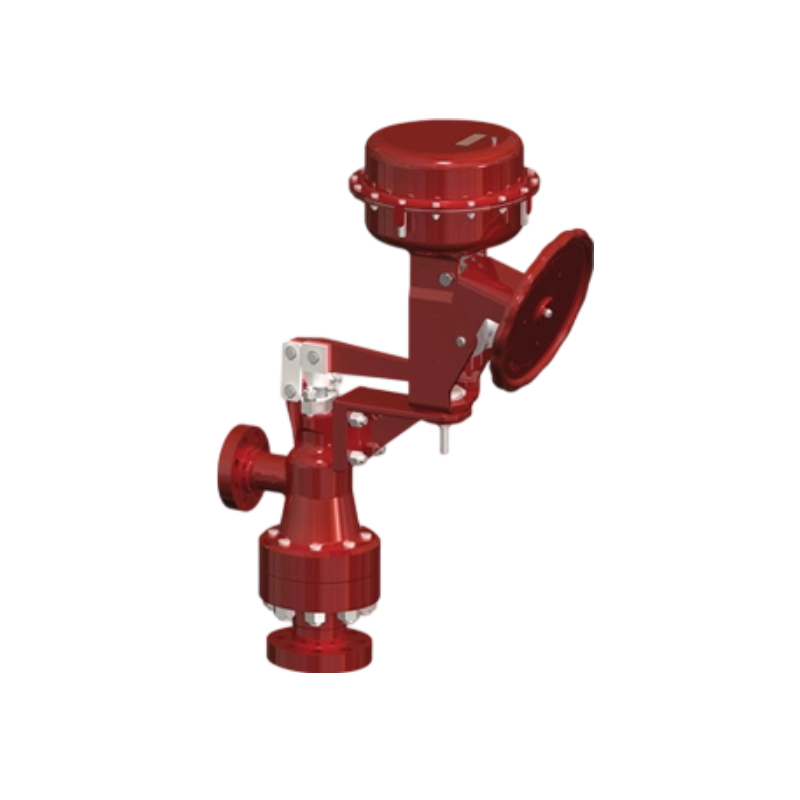

6.Available in angle valve configuration with top or bottom bonnet arrangements

7.Interchangeable trim options to match varying process conditions

8.Hardened seat and guiding surfaces for improved wear resistance

9.Compatible with high‑thrust diaphragm and cylinder actuators

10.Suitable for high‑pressure class ratings up to ANSI 2500

11.Compliant with NACE standards for sour service applications

12.Linear flow characteristic for stable and predictable process control

13.Expanding outlet passages to accommodate compressible flow expansion

14.Top‑entry trim for simplified in‑line service and maintenance

Specifications

Size

2” x 3” through 8” x 10” (50 x 80 through 200 x 250 mm)

Ratings & Connections

flanged: inlet ANSI 900-2500, outlet ANSI 900 – 2500, UNI-DIN 150 - 400; welded: BW or SW

Body Materials

carbon steel; stainless steel; chrome-moly

Actuators

model 37/38 spring-opposed diaphragm; cylinder

Trim

axial flow technology; multi-stage trim (expanding area type); anti-cavitation, flashing, de-gassing, and low noise

Inherent Characteristics

linear
