Features

1.Sweep‑Angle Erosion‑Resistant Body

Streamlined contoured angle design minimizes fluid impingement and wear, ideal for slurries, ash, black water, and erosive fluids.

2.Heavy Guiding & Stable Control

Oversized out‑of‑stream bearings and contoured plug ensure accurate throttling and alignment even with high solids content.

3.High‑Performance Severe‑Service Trim

High‑capacity single‑stage or reduced‑port venturi outlet; optional ceramic or tungsten carbide trim for maximum abrasion resistance.

4.Wide Pressure & Temperature Range

ANSI Class 150–2500 ratings accommodate high‑pressure let‑down, flashing, and steam services.

5.Expanded Outlet Configuration

Available with increasing outlet size to reduce velocity and erosion downstream.

6.Linear Flow Characteristic

Provides consistent and predictable control across the full operating range.

7.Robust Actuator CompatibilityDirect mounting for Model 87/88 multi‑spring diaphragm actuators and Model 51/52/53 cylinder actuators.

8.Low‑Emission & Fire‑Safe OptionsMeets global standards for fugitive emissions and fire‑safe service in critical hydrocarbon applications.

Specifications

• Size

  1” x 1” through 10” x 12” (25 x 25 mm through 250 x 300 mm)

  Ratings & Connections

  flanged: ANSI 150 - 2500

  Body Materials

  carbon steel; stainless steel; titanium; hastelloy; others

  Actuators

  model 87/88 multi-spring-opposed diaphragm; cylinder

  Trim

  high capacity single stage; reduced port venturi outlet; ceramic and tungsten carbide optional

  Inherent Characteristics

  linear

  Description

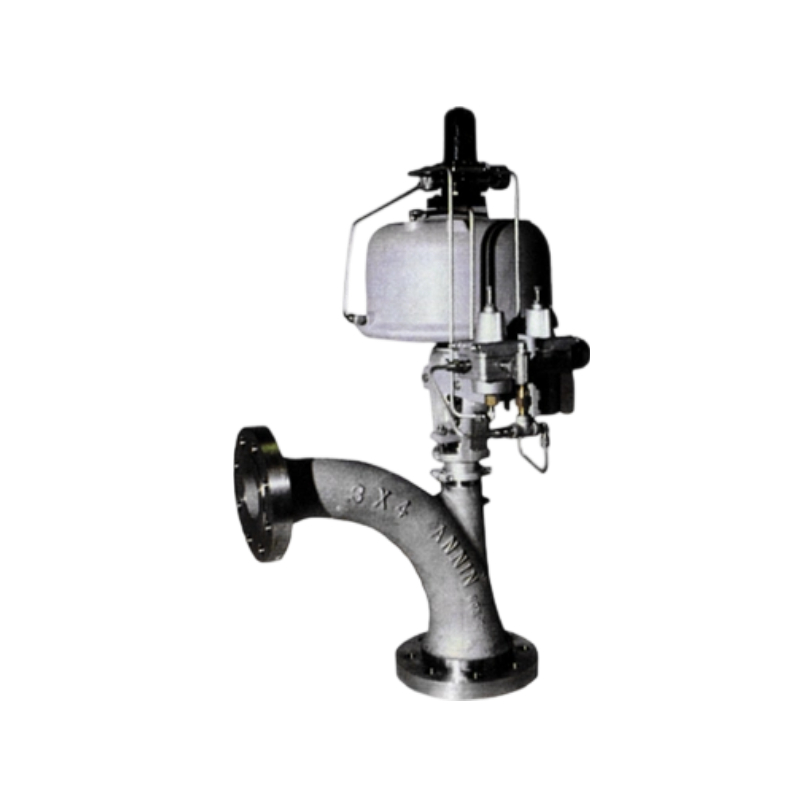

  The 73000 Series control valve can throttle highly erosive, flashing, and two-phase flows.
