Features

Streamlined Angle Body Design:

The unique angle body interiors are designed to minimize and prevent particulate build-up against the valve walls. With reduced fluid momentum change, particulate within the flow stream yield less impact energy against the valve, thus extending useful life in harsh service.

Heavy Guided, Hardened Plug Design:

The heavy duty plug design of the 71000 series includes a solid stainless steel base material, with a hardened surface to prevent premature application induced erosion. Combined with optional flushing connections, the 71000 series is designed to prevent crystallization, or coke, build up, with a robust plug to break through any residual formation when equipped with high force actuation. Heavy port guiding.

Corrosion Resistance Materials:

The 71000 Series is available for Severe Service Applications using materials and construction methods in accordance with ANSI/NACE MR0175/ISO 15156-1 & MR0103.g and stem guiding reduce trim vibration for longer installed life under severe service.

Low Emission Certification:

Using the Masoneilan Low-E series of low-emission packing, the 71000 series achieves ISO 15848 Class A, and far exceeds EPA CLLT requirements of <100 ppm.

Tight Shutoff:

Class IV leakage standard.  High thrust actuation options provided to meet IEC-534-60534-4 and ANSI/FCI 70.2 Class V.

Specifications

Size

1” through 12” (25mm through 300 mm)

Ratings & Connections

Flanged: ANSI 150 - 2500; JIS 10k-63k; PN 10-400

Body Materials

Carbon steel; stainless steel; chrome-moly

Actuators

Model 87/88 multi-spring diaphragm; 51/52/53 Piston Cylinder

Trim

Heavy top plug guiding coupled with a threaded seat ring design to form an outlet venturi flow path for outlet area protection

Inherent Characteristics

Equal Percentage

Associated Products

SVI1000 Single-acting Intelligent Positioner, HART Protocol

SVI1000/G With Pressure Gauge

SVI1000G/IM With Pressure Gauge and Integrated Magnet

SVI1000G/IM/PR With Pressure Gauge, Integrated Magnet and Valve Position Feedback Module

SVI1000G/IM/SW With Pressure Gauge, Integrated Magnet and Limit Switch

SVI*FF Intelligent Positioner, FF Bus Protocol

SVI2AP-21113111 Single-acting Intelligent Positioner, HART Protocol

SVI2AP-21113121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback

SVI2AP-21123111 Single-acting Intelligent Positioner, HART Protocol, with On-site LCD Display

SVI2AP-21123121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display

SVI2AP-22113111 Double-acting Intelligent Positioner, HART Protocol

SVI2AP-22113121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback

SVI2AP-22123111 Double-acting Intelligent Positioner, HART Protocol, with On-site LCD Display

SVI2AP-22123121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display

SVI3 Series Newly Upgraded Intelligent Positioner

78-40 Filter Regulator, 08-80H Retainer Valve

4000/IP Electro-pneumatic Transducer

BR200 BR400 Pneumatic Amplifier

496 Series Electric Rotary Switch

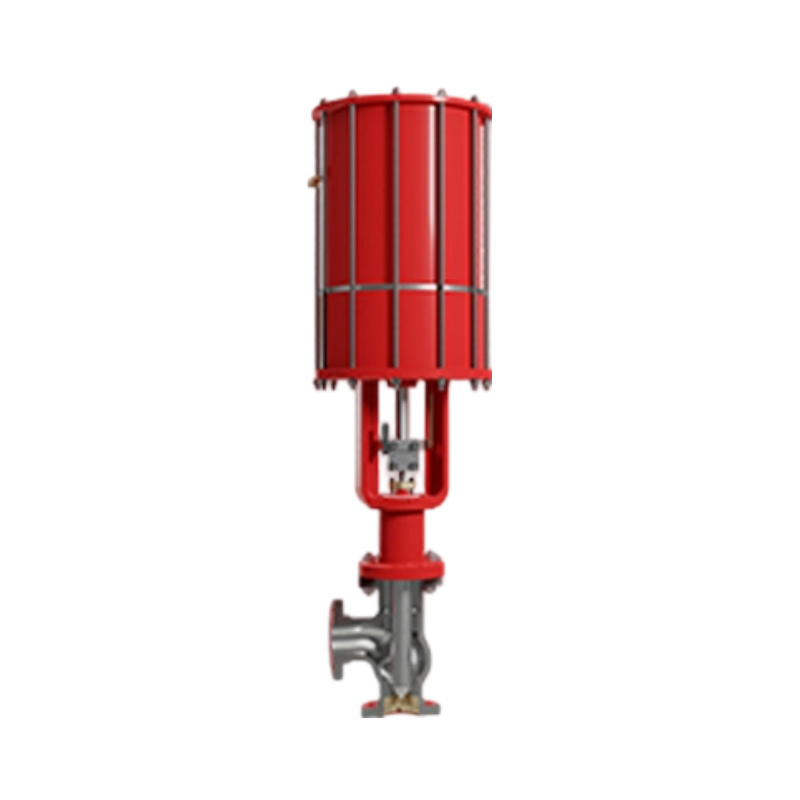

Pictures show
