Masoneilan 49000 Series V-LOG Low-Noise Anti-Cavitation Valve
The 49000 Series V-LOG high pressure drop valve features an enlarged body gallery to accommodate gas expansion and up to 36 stages of pressure reduction via a stacked disk trim design. It offers optimized severe service solutions for high-pressure drop applications with potential damaging noise or cavitating fluid conditions. Built around the Masoneilan V-LOG Energy Management Trim, the 49000 Series is capable of handling a wide range of both liquid and gas services in a variety of process industries.
Features
1.Compared to forged or fabricated bodies, the cast globe-style body of the 49000 Series offers lower in weight and overall dimensions which helps reduce installation costs.
2.Enlarged body galleries and expanded outlets provide velocity control for expanding gases.
3.Galleries sized to accept "typical" V-LOG trim dimensions for a standardized body platform and an optimized solution.
4.V-LOG trim for use with either compressible or incompressible fluids under severe service conditions.
5.V-LOG and Lo-dB trim provide reduced noise and cavitation that could negatively affect the valve and/or surrounding equipment.
Specifications
Size
4” through 36” (100 through 900 mm)
Ratings & Connections
flanged: ANSI 150-2500, UNI-DIN 10 - 400; welded: BW
Body Materials
carbon steel; stainless steel; chrome-moly
Actuators
model 37/38 spring-opposed diaphragm; model 87/88 multi-spring-opposed diaphragm; cylinder
Trim
single or double stage Lo-dB and V-LOG energy management trim; low noise flow-to-open designs or anti-cavitation flow-to-close
Inherent Characteristics
linear or equal percentage
Associated Products
SVI1000 Single-acting Intelligent Positioner, HART Protocol
SVI1000/G With Pressure Gauge
SVI1000G/IM With Pressure Gauge and Integrated Magnet
SVI1000G/IM/PR With Pressure Gauge, Integrated Magnet and Valve Position Feedback Module
SVI1000G/IM/SW With Pressure Gauge, Integrated Magnet and Limit Switch
SVI*FF Intelligent Positioner, FF Bus Protocol
SVI2AP-21113111 Single-acting Intelligent Positioner, HART Protocol
SVI2AP-21113121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback
SVI2AP-21123111 Single-acting Intelligent Positioner, HART Protocol, with On-site LCD Display
SVI2AP-21123121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display
SVI2AP-22113111 Double-acting Intelligent Positioner, HART Protocol
SVI2AP-22113121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback
SVI2AP-22123111 Double-acting Intelligent Positioner, HART Protocol, with On-site LCD Display
SVI2AP-22123121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display
SVI3 Series Newly Upgraded Intelligent Positioner
78-40 Filter Regulator, 08-80H Retainer Valve
4000/IP Electro-pneumatic Transducer
BR200 BR400 Pneumatic Amplifier
496 Series Electric Rotary Switch

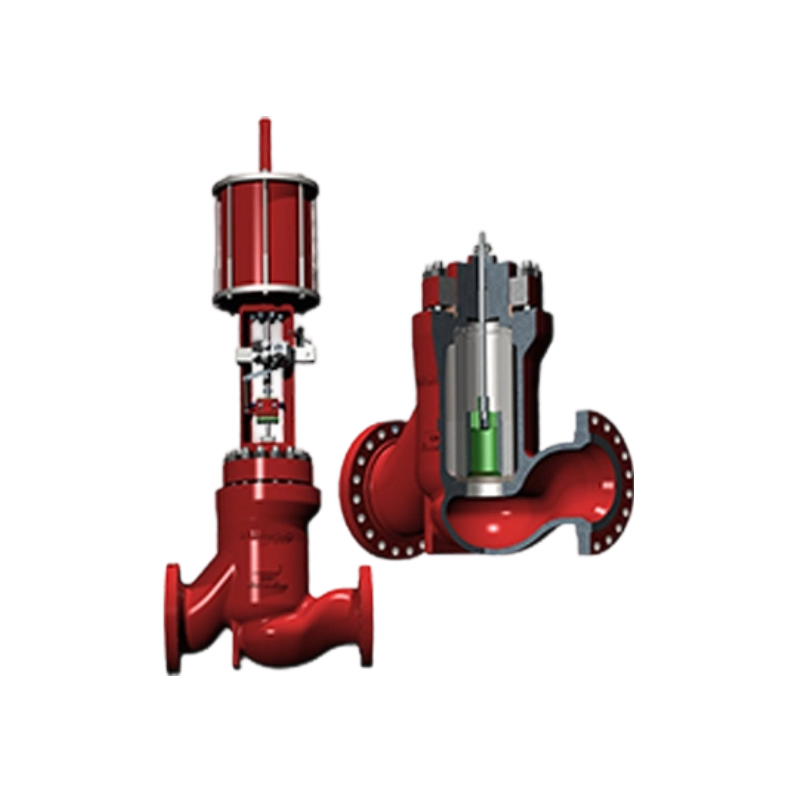

Pictures show
