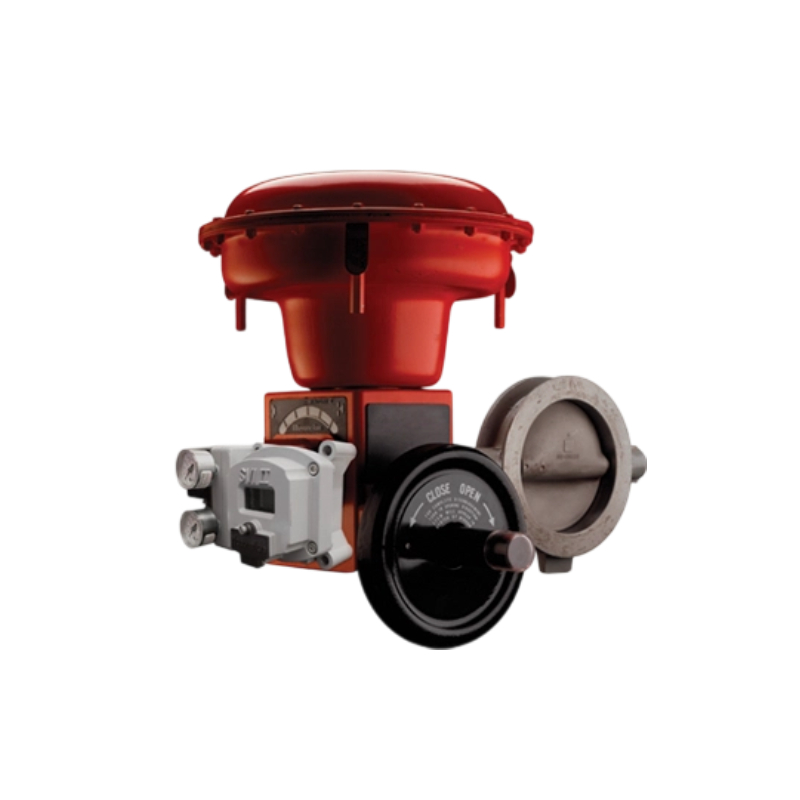

Masoneilan Conventional Butterfly Control Valves 37002 Series Minitork* II
The Masoneilan 37002 Series Minitork II is a high-performance rotary butterfly control valve engineered for precise flow regulation, reliable tight shut-off, and long service life in general industrial and process applications. Designed with an advanced concentric disc structure, low-emission sealing system, and high turndown control capability, it delivers stable throttling performance, low operating torque, and easy maintenance. Ideal for liquid, gas, steam, and light slurry services, the Minitork II series combines compact size, high flow capacity, and cost-effective operation for global process automation systems.
Features
1.Low Dynamic Torque – the unique cupped shape disc results in a dynamic torque considerably lower than conventional butterfly valves.
2.Bi-Directional Flow – The reverse cupped construction of the Minitork disc is not self-limiting. Accordingly, the low torque can be maintained regardless of flow direction.
3.Deflection-free and backlash-free operation. Splined and clamped construction with an ouboard ball bearing and a rigid bracket assembly provide the structural rigidity required for precise positioning.
4.Direct Mounted Positioners – Position feedback is directly connected to the valve shaft eliminating potential lost motion and providing improved positioning accuracy.
5.Triple Bearing System – provides exceptional support and guiding for the shaft.
6.Valve Position Indicator – highly visible, which allows quick visual inspection of disc position.
7.Integrally Cast Extension Bonnet – provides ability to handle wide range of process temperatures.
8.Spring Diaphragm Actuator – with total enclosure of all moving parts provides increased resistance to environmental corrosion.
Specifications
Sizes:
2" through 12" (50 through 600 mm)
Ratings and Connections:
Wafer for mounting between flanges: ANSI 150 – 300 UNI-DIN 10 – 40
Body Materials:
Carbon steel Stainless steel Liners in Buna-N, Viton, and Nordel
Actuator:
Model 33 spring diaphragm
Trim:
Low torque butterfly
Inherent Characteristics:
Equal percentage
Associated Products
SVI1000 Single-acting Intelligent Positioner, HART Protocol
SVI1000/G With Pressure Gauge
SVI1000G/IM With Pressure Gauge and Integrated Magnet
SVI1000G/IM/PR With Pressure Gauge, Integrated Magnet and Valve Position Feedback Module
SVI1000G/IM/SW With Pressure Gauge, Integrated Magnet and Limit Switch
SVI*FF Intelligent Positioner, FF Bus Protocol
SVI2AP-21113111 Single-acting Intelligent Positioner, HART Protocol
SVI2AP-21113121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback
SVI2AP-21123111 Single-acting Intelligent Positioner, HART Protocol, with On-site LCD Display
SVI2AP-21123121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display
SVI2AP-22113111 Double-acting Intelligent Positioner, HART Protocol
SVI2AP-22113121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback
SVI2AP-22123111 Double-acting Intelligent Positioner, HART Protocol, with On-site LCD Display
SVI2AP-22123121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display
SVI3 Series Newly Upgraded Intelligent Positioner
78-40 Filter Regulator, 08-80H Retainer Valve
4000/IP Electro-pneumatic Transducer
BR200 BR400 Pneumatic Amplifier
496 Series Electric Rotary Switch
