Features

1.Simplified alignment. The valve’s integrally cast raised face flanges (in compliance with ASME 150 or 300 Class standards) eliminate the need for long tie rods, significantly simplifying the alignment process.

2.Installation flexibility. To meet a variety of application needs, the valve is available with two different face-to-face dimensions: standard construction complies with ISA S75.04 and IEC 534-3-2 standards and a short pattern complies with the ANSI B16.

3.Enhanced flow capacities. A straight-through flow pattern provides exceptional capacities, while the patented dual-characterized V-port ball combines an equal percentage flow characteristic with highcapacities and greater than 500:1 rangeability.

4.Excellent leakage control: A standard EF(emission free) seal packing system provides long-term, zero leakage† shaft sealing performance.

Specifications

Sizes:

1" through 12" (25 through 300 mm)

Ratings and Connections:

Flanged: ANSI 150 – 300

Body Materials:

Carbon steel Stainless steel

Actuator:

Model 33 spring diaphragm

Model 31/32 spring diaphragm

Trim:

Dual characterized V-Ported segmented ball

Inherent Characteristics:

Equal percentage

Associated Products

SVI1000 Single-acting Intelligent Positioner, HART Protocol

SVI1000/G With Pressure Gauge

SVI1000G/IM With Pressure Gauge and Integrated Magnet

SVI1000G/IM/PR With Pressure Gauge, Integrated Magnet and Valve Position Feedback Module

SVI1000G/IM/SW With Pressure Gauge, Integrated Magnet and Limit Switch

SVI*FF Intelligent Positioner, FF Bus Protocol

SVI2AP-21113111 Single-acting Intelligent Positioner, HART Protocol

SVI2AP-21113121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback

SVI2AP-21123111 Single-acting Intelligent Positioner, HART Protocol, with On-site LCD Display

SVI2AP-21123121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display

SVI2AP-22113111 Double-acting Intelligent Positioner, HART Protocol

SVI2AP-22113121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback

SVI2AP-22123111 Double-acting Intelligent Positioner, HART Protocol, with On-site LCD Display

SVI2AP-22123121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display

SVI3 Series Newly Upgraded Intelligent Positioner

78-40 Filter Regulator, 08-80H Retainer Valve

4000/IP Electro-pneumatic Transducer

BR200 BR400 Pneumatic Amplifier

496 Series Electric Rotary Switch

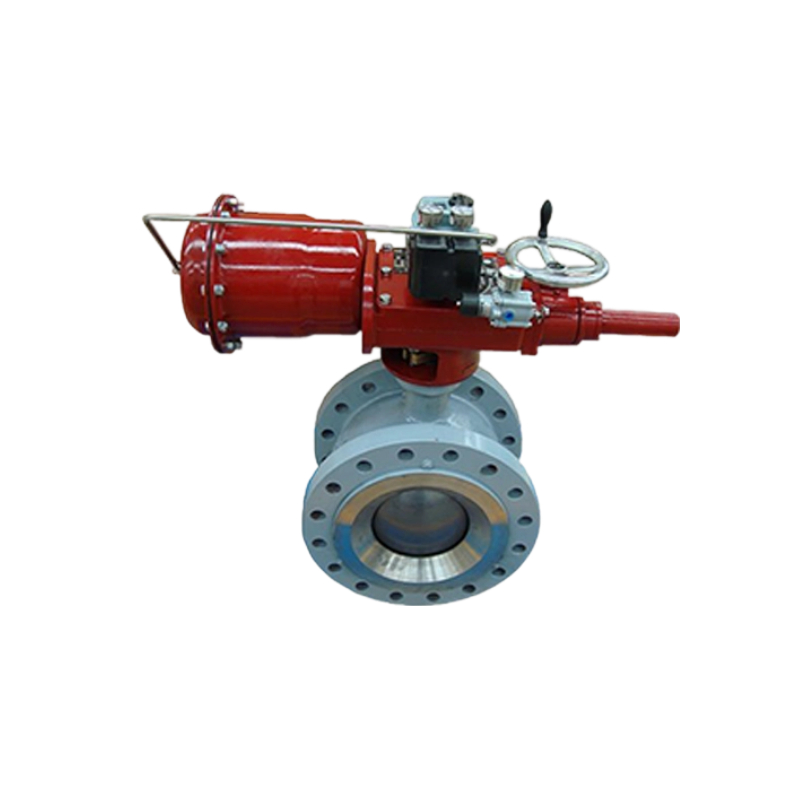

Pictures show
