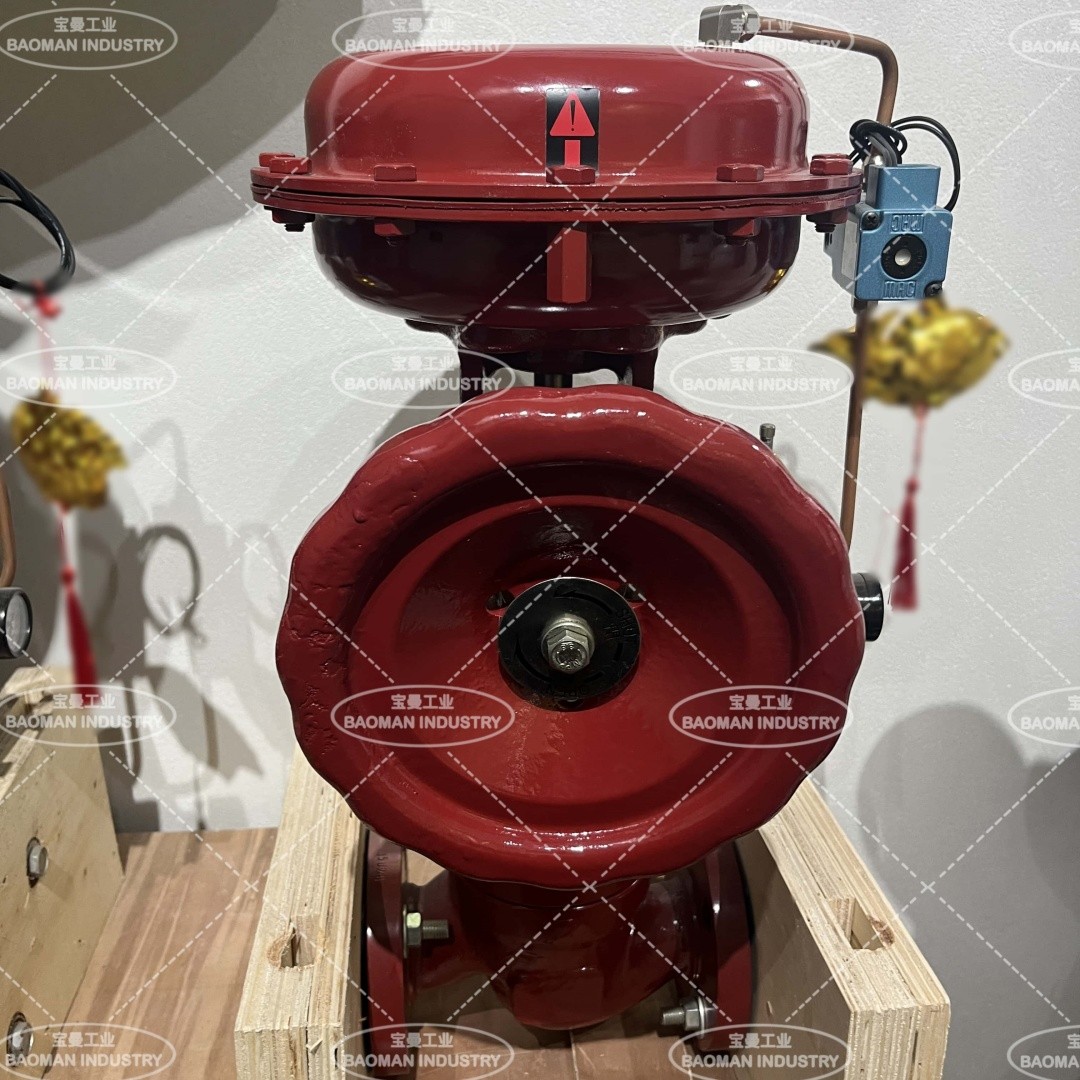

Features

Linear Flow Characteristic with Higher Turndown

Camflex’s linear flow characteristic provides a slight modification as the plug approaches the seat.  As the plug cams into the seat, the rate of change in flow is reduced gradually until the plug contacts the seat.  This provides a Cv ratio of 100:1 for stable operation over a wider range in flow.  Most traditional globe style control valves offer 50:1 maximum.

Wide Application Range

The standard construction of the Masoneilan Camflex valve includes features that are either optional or simply not available in competing valves.

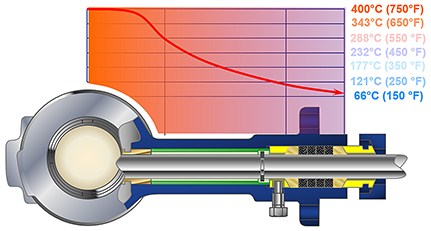

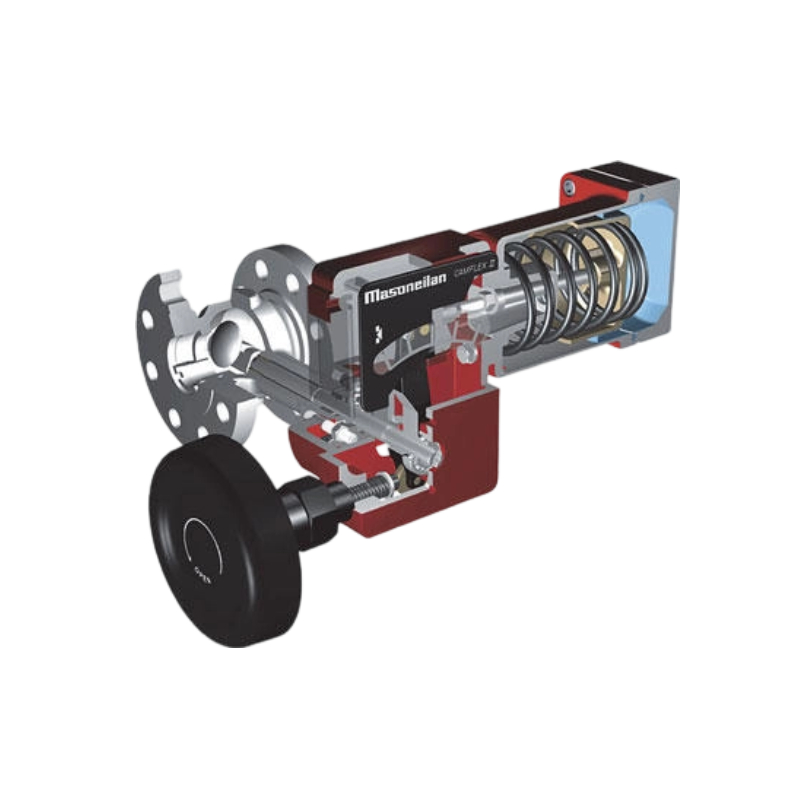

Integral Extension Bonnet

The integrally cast extension bonnet provides effective radiation of heat in high temperature applications to allow the use of low-friction TFE packing materials across the full rated service temperatures of -196˚C to 400˚C (-320˚F to 750˚F).  Graphite based packing is available as an option for fire-safe applications.

Standard Low-Emissions Packing

One of the biggest sources of fugitive emissions in plants and pipelines are valves, specifically, emissions leakage from the packing box and sealing gaskets. With an integral bonnet design, the Camflex completely eliminates emissions from the bonnet joint, a huge differentiated benefit over globe valves of similar pressure class.

The Camflex further stands out minimizing packing leakage as every valve produced today comes standard with the EF Seal, low-emissions packing system.  This simple double O-Ring sealed packing system satisfies FCI 91-1 (EPA) requirements.

In addition, the Optional Low-E packing system has been independently certified to the ISO 15848-1 Class A requirements with both Helium and Methane gas tests. Measured results are more than 25x tighter than the <100 ppm requirement. This system also satisfies the U.S. EPA Certified Low Leak Technology (CLLT) requirements.

Designed to Resist Erosion

Hardfaced or solid Stellite plug is standard in every Camflex with optional seat rings and retainers available for erosive applications.

Guide bushings are located outside flowstream to prevent impingement of damaging debris on critical guiding surfaces.

These features help provide extended service life in harsh services.

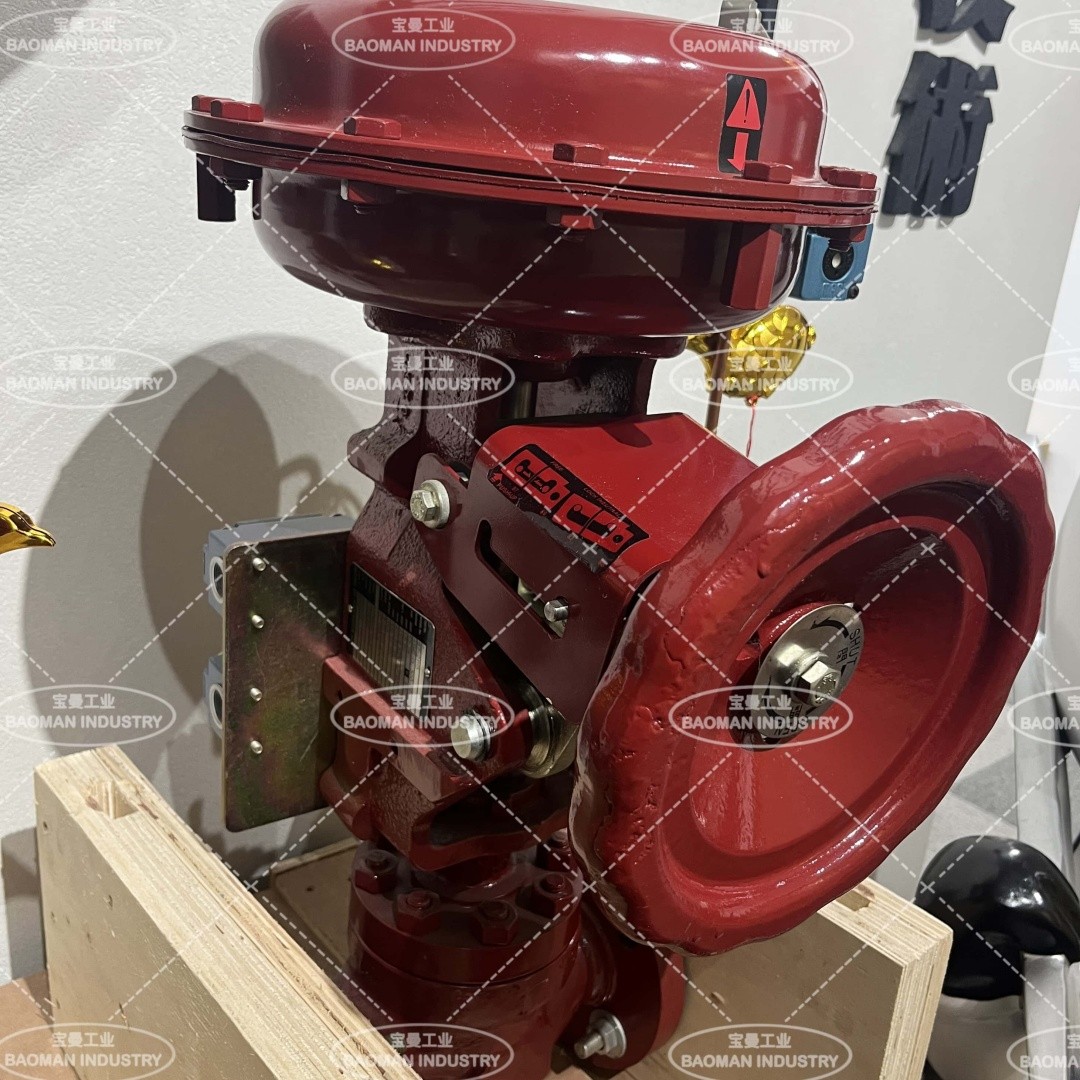

Smaller, Lighter, Easy to Handle

The Masoneilan Camflex II is also much easier to install and maintain thanks to its flexible body options.  Available in Threaded, Flangeless or Flanged ends to match pipe connection requirements.  The flanged construction is also offered in the Camflex GR configuration, which matches the face to face dimension of most standard globe valves allowing simplified replacement of existing valves.

Regardless of end connections option, Camflex valves are much smaller and lighter than globe valve products – typically half the size and half the weight.

Minimized Parts

The Masoneilan Camflex II incorporated product stewardship from initial concept.  Not only does it eliminate a bonnet gasket in the standard design, it only requires one plug across a single valve line size.  The design features different seat rings to achieve a variety of flow conditions without the hassle of changing a plug, cage and/or stem size.  This will help minimize the required inventory on the shelf and share a common part among other Camflex installations of the same body size.

Low-Noise Trim Option

An optional patented differential velocity device (DVD) separates compressible flow streams into a high velocity core and a low velocity envelope flow stream. This differential velocity concept is similar to that used in commercial jet engines and provides up to 18 dBA noise attenuation.

Specifications

Sizes:

1" through 16" (25 through 400 mm)

Ratings and Connections:

Flanged: ANSI 150 – 600

Flangeless: ANSI 150 – 600 UNI-DIN 10 – 100

Screwed: NPT (1" through 2")

Body Materials:

Carbon steel Stainless steel High nickel alloy

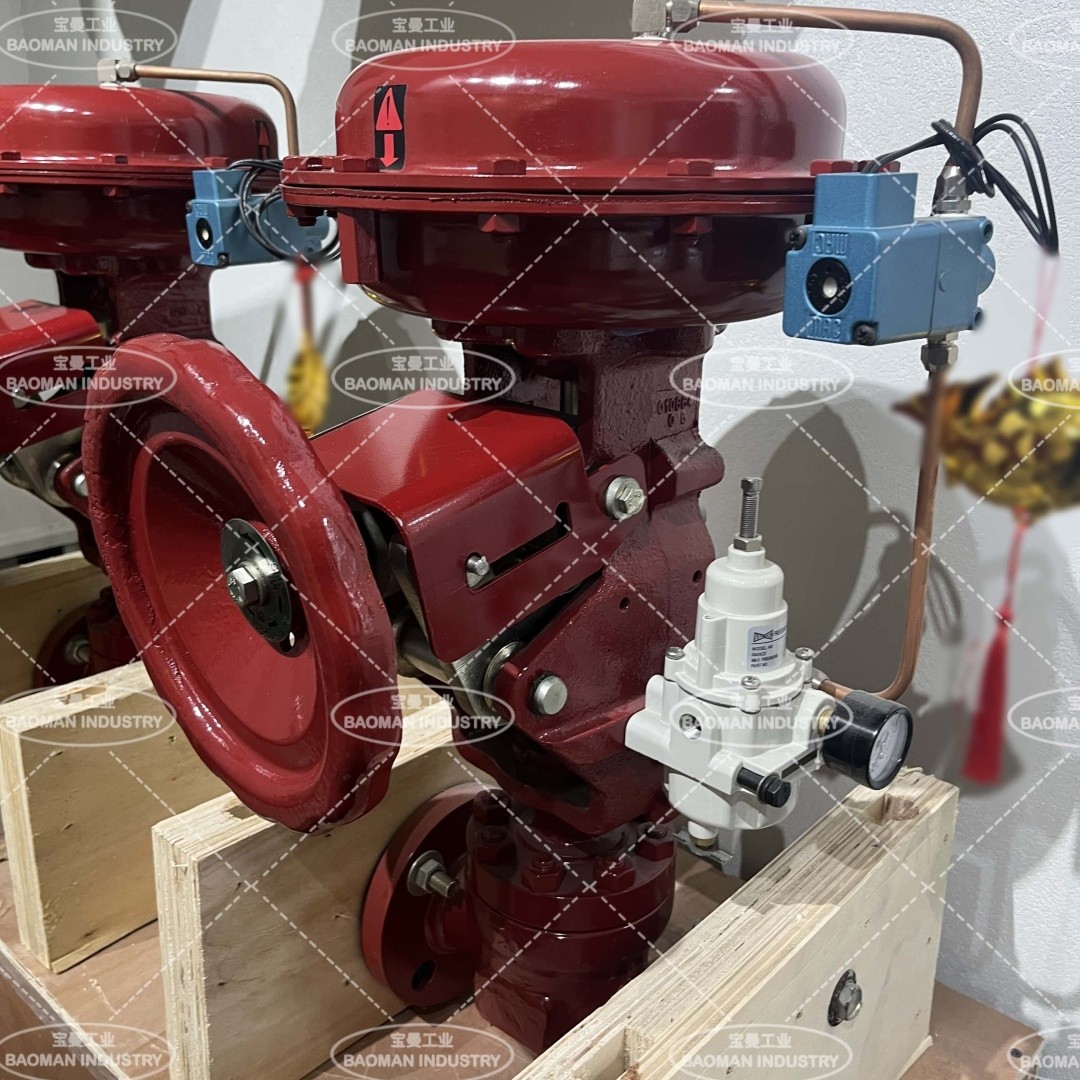

Actuator:

Model 35 spring diaphragm

Model 70 Series cylinder

Trim:

Eccentric rotary plug

Inherent Characteristics:

Linear
