Features

Excellent Performance:

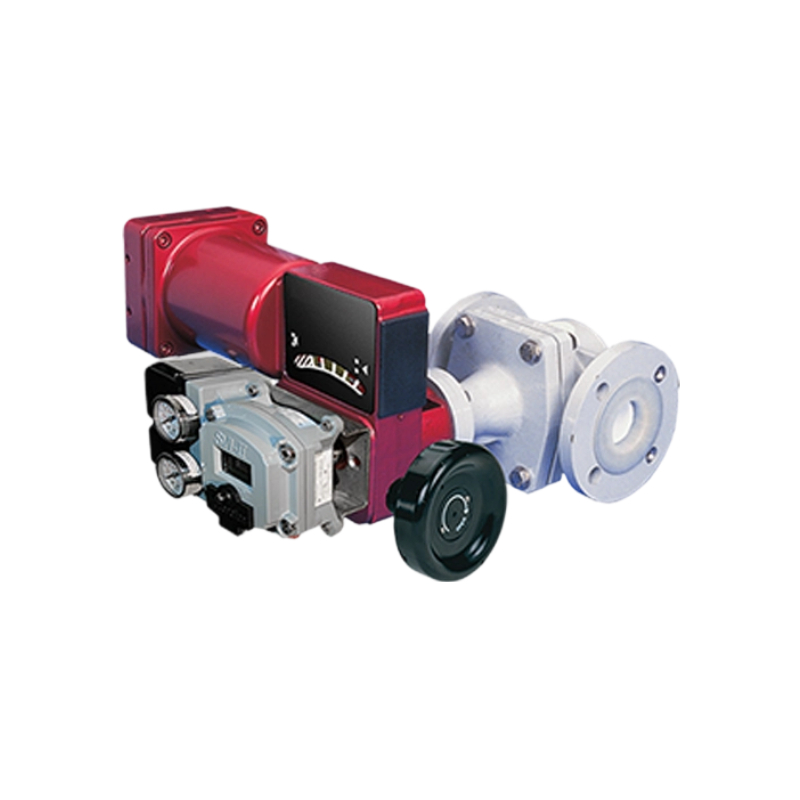

The eccentric rotary plug design provides excellent throttling control accuracy, low dynamic forces and tight shut off. The straight through flow pattern results in high flow capacities.

Corrosion Resistance:

PFA lining with guaranteed small wall thickness provides resistance to most corrosive fluids.

Reduced Fugitive Emissions:

The rotary design inherently reduces wear on the packing as compared to a typical linear valve. Additionally, the standard design includes PTFE/Graphite packing, chevron rings, backedup by a double O-ring follower to provide further reliability in corrosive applications.

Ease of Maintenance:

The compact dimensions and low weight design allows for easy installation and removal without compromising piping forces.

Reliability:

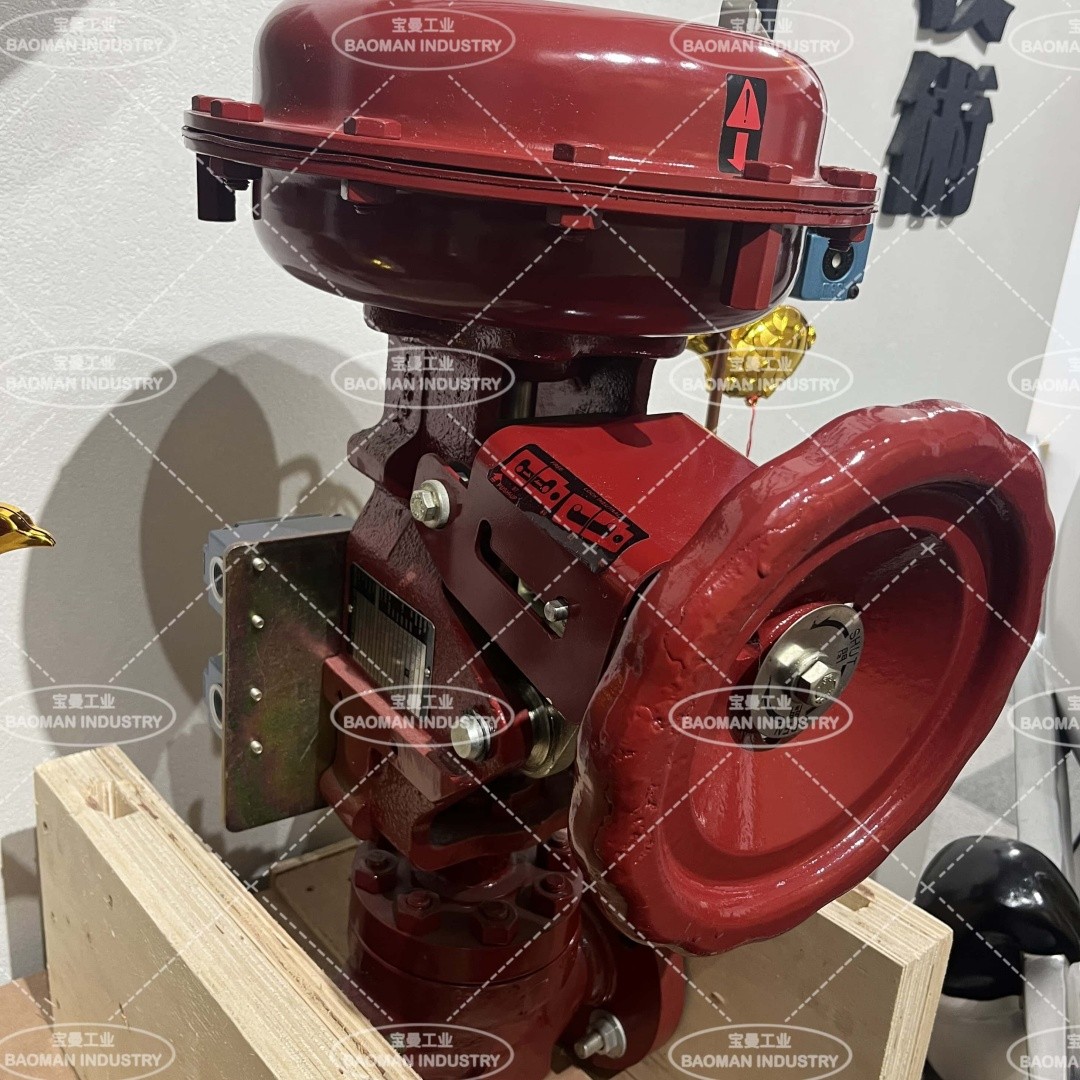

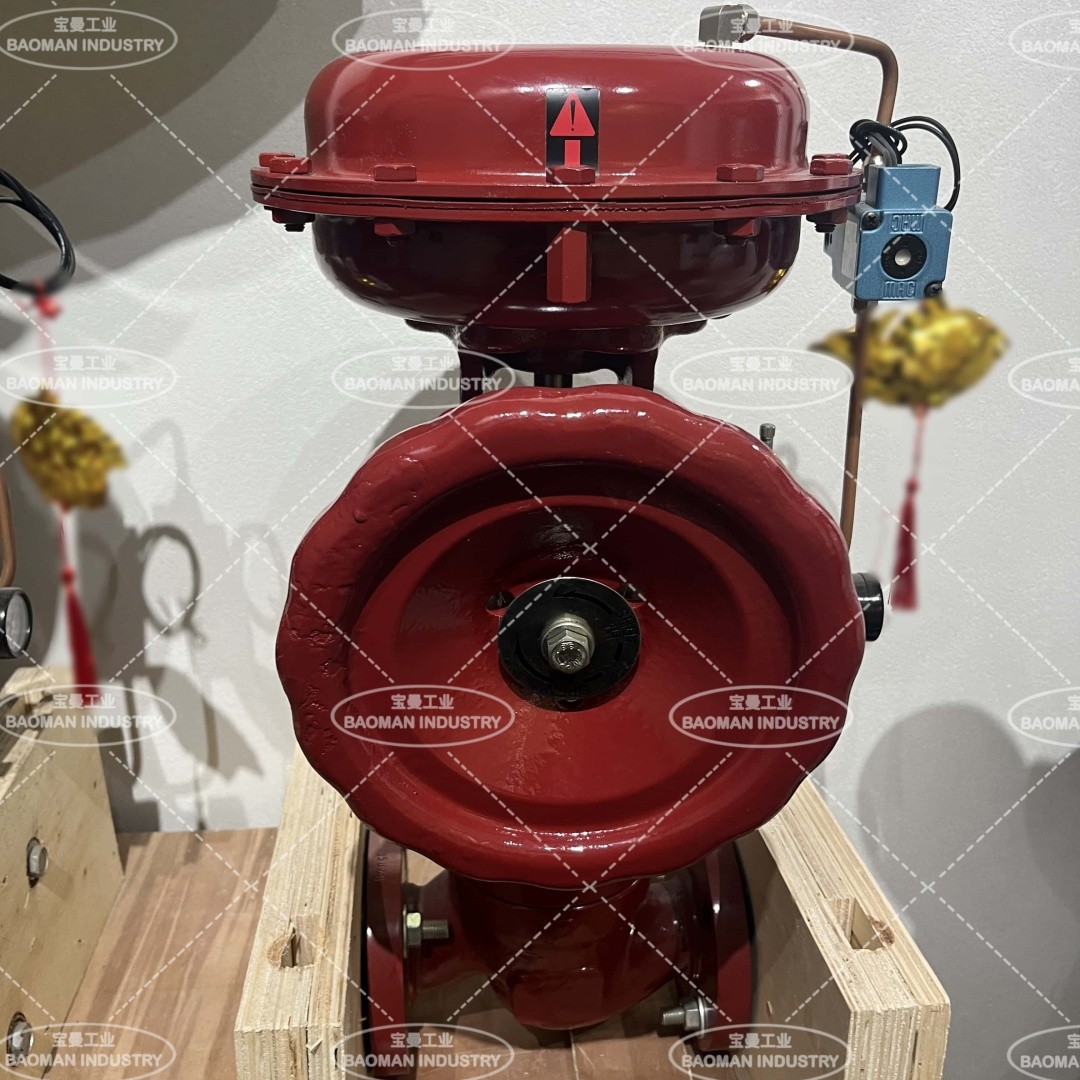

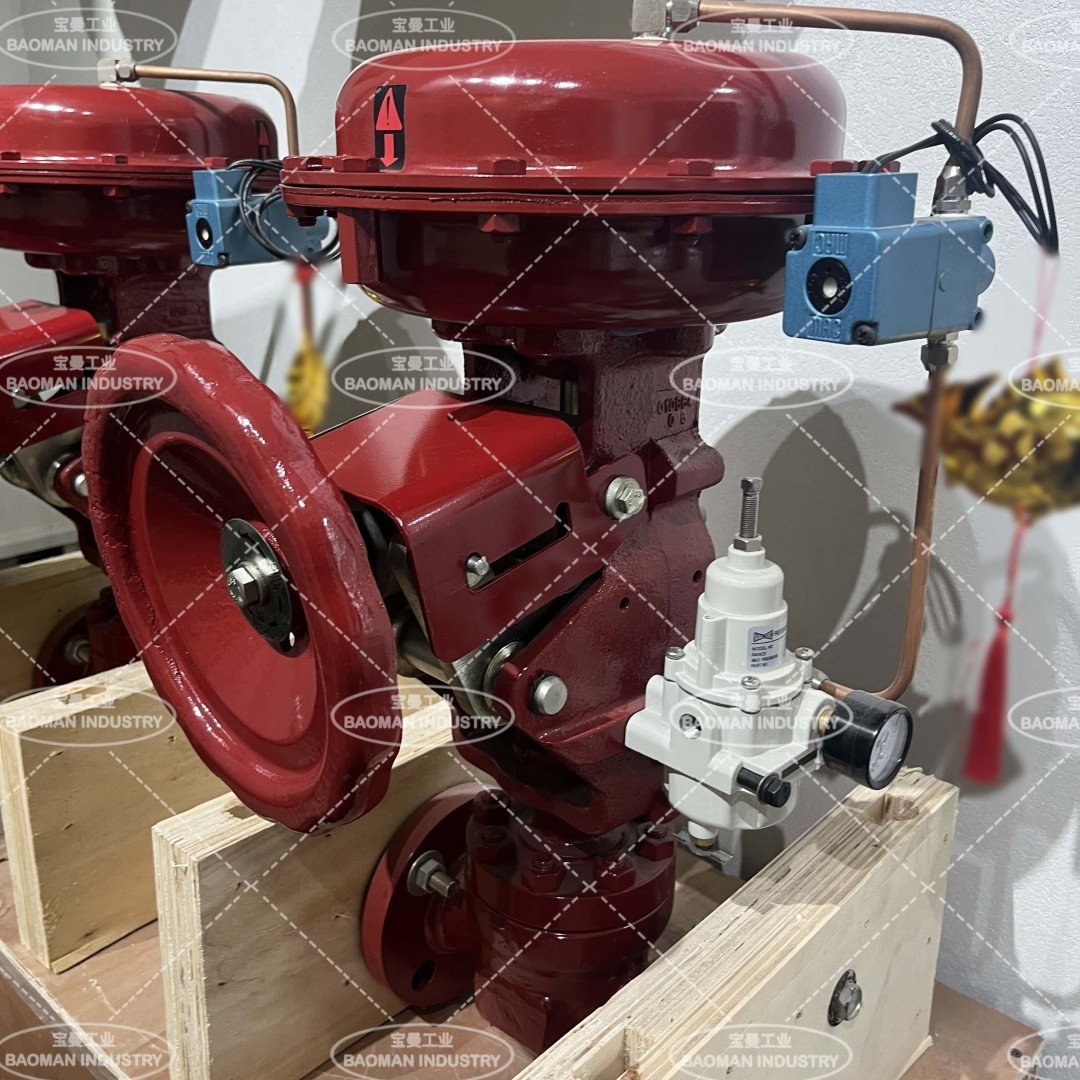

The dovetail grooves provide mechanical anchoring between metal body and PFA lining to ensure high performance under vacuum and at high temperature. The powerful, field proven rolling diaphragm actuator provides positive fail-safe action. The actuator linkage is totally enclosed that comes with a combination handwheel and adjustable limit stop with locking mechanism. All actuators are available with a complete line of options and accessories.

Specifications

Sizes:

1" through 3" (25 through 80 mm)

Ratings and Connections:

Flanged ANSI 150, UNI-DIN 10 – 16

Body Materials:

Cast iron PFA lined

Actuator:

Model 35 spring-opposed rolling diaphragm

Trim:

Eccentric rotary plug

Inherent Characteristics:

Linear

Associated Products

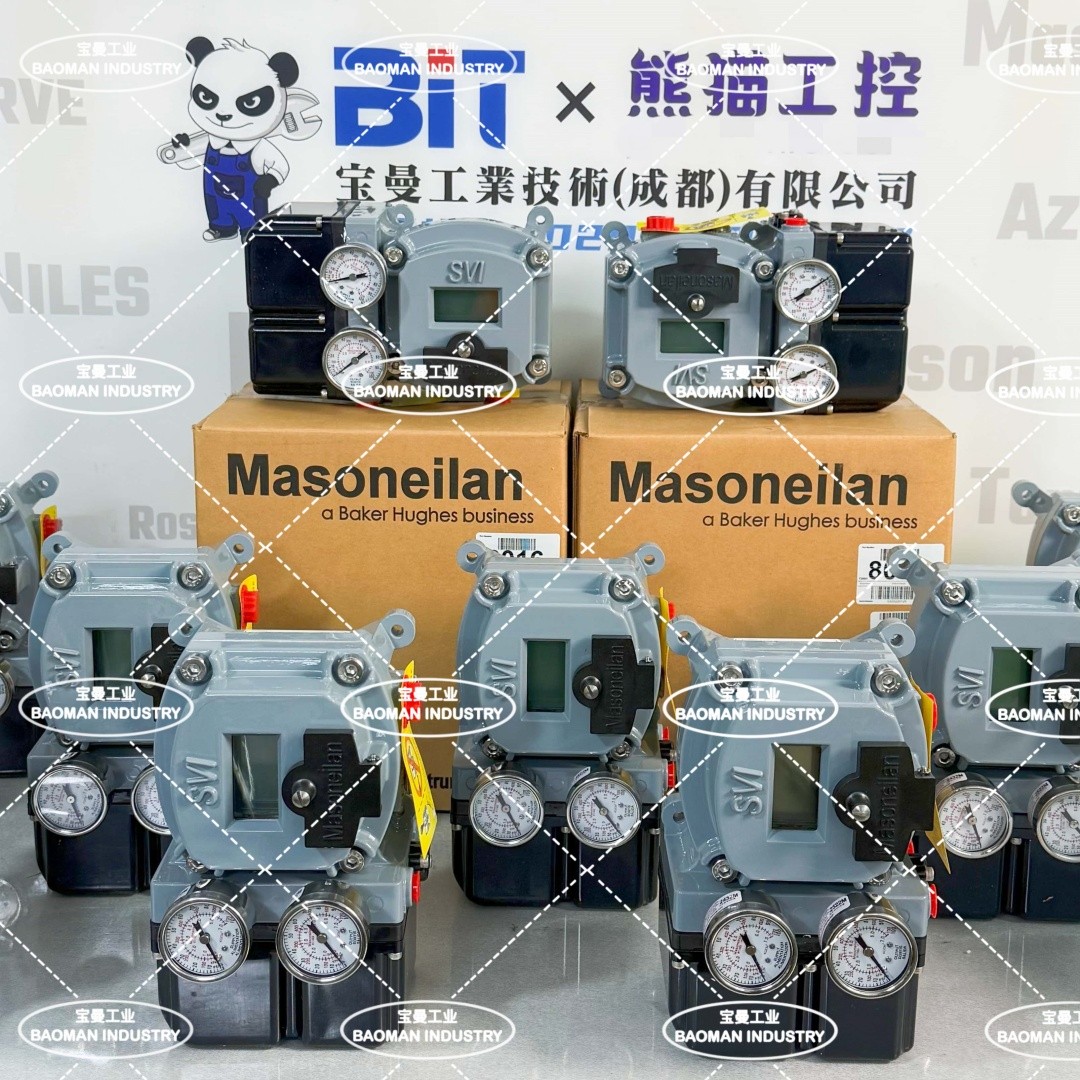

SVI1000 Single-acting Intelligent Positioner, HART Protocol

SVI1000/G With Pressure Gauge

SVI1000G/IM With Pressure Gauge and Integrated Magnet

SVI1000G/IM/PR With Pressure Gauge, Integrated Magnet and Valve Position Feedback Module

SVI1000G/IM/SW With Pressure Gauge, Integrated Magnet and Limit Switch

SVI*FF Intelligent Positioner, FF Bus Protocol

SVI2AP-21113111 Single-acting Intelligent Positioner, HART Protocol

SVI2AP-21113121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback

SVI2AP-21123111 Single-acting Intelligent Positioner, HART Protocol, with On-site LCD Display

SVI2AP-21123121 Single-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display

SVI2AP-22113111 Double-acting Intelligent Positioner, HART Protocol

SVI2AP-22113121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback

SVI2AP-22123111 Double-acting Intelligent Positioner, HART Protocol, with On-site LCD Display

SVI2AP-22123121 Double-acting Intelligent Positioner, HART Protocol, with Valve Position Feedback and On-site LCD Display

SVI3 Series Newly Upgraded Intelligent Positioner

78-40 Filter Regulator, 08-80H Retainer Valve

4000/IP Electro-pneumatic Transducer

BR200 BR400 Pneumatic Amplifier

496 Series Electric Rotary Switch
