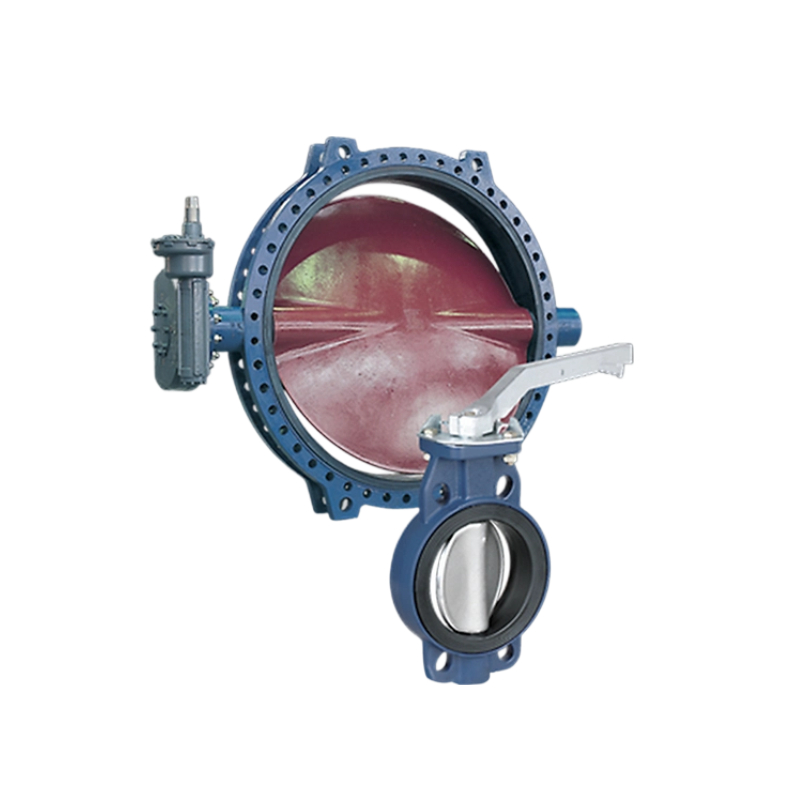

Keystone Model ParaSeal Butterfly Valves
Keystone Model ParaSeal Butterfly Valves are premium resilient seated butterfly valves, engineered by Emerson to deliver exceptional sealing performance and long-term reliability in diverse fluid control applications. Building on the proven design of the V11 series, the ParaSeal model features an advanced resilient seat technology that enhances bi-directional shut-off capabilities, making it ideal for critical systems where zero leakage is essential.
Features
1.Available in wafer, lugged and double flanged
2.One piece body design acc. ISO 5752 series 20 (DIN 3202 K1)
3.Suitable for severe vacuum and up to 25 bar bubble tight shut off
4.The field replaceable seat fully isolates the body and shaft from the media
5.Bed grooved seat construction for tight shut off at full rated pressure, also for end of line service
6.Suitable for Bördel and slip-on flanges
7.A molded-in O-ring in the seat face for flange sealing. No flange gaskets required
8.Lenticular shaped disc to improve flow capacity
9.Splined, squared or key shaped disc/shaft connection
10.Dry shaft design
11.PTFE lined bearings to minimize friction
12.Actuator flange acc. ISO 5211
Specifications
Certifications | DVWG, PED |
End Connection | Flanged, Lugged, Wafer |
Application | Desalination, Water distribution, Chillers, Balance of Plant, Water Treatment |
Body Design | Short Pattern |
Material | EPDM Rubber, Duplex, Ductile Iron, Cast Iron, Carbon Steel, Buna-N, Bronze, 316L Stainless Steel, 316 Stainless Steel, 304 Stainless Steel, Aluminum Bronze |
Operating Temperature | Less Than 200 C |
Pressure Class | ASME, PN |
Process Connection Type | 125FF, 150RF, PN16, PN25, 150FF |
Seat/Seal Type | Resilient |
Shutoff Class | Zero Leakage |
Valve Size | NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 20 / DN 500, NPS 24 / DN 600 |
Valve Size Standard | NPS, DN |
Valve Type | Butterfly |
Media | Air, Inert Gas, Water |
Stem | O-ring |
Associated Products
KPU063HVPDOP2U4 | KPU125LVPEOP2U4 | KPU250HVPDOP2U4 |
KPU500LVPEOP2U4 | KPU1K0HVPDOP2U4 | KPU2K0HPPEOP2U4 |
KPD063HVPDOP2U4 | KPD125LVPEOP2U4 | KPD250HVPDOP2U4 |
KPD500LVPEOP2U4 | KPD1K0HVPDOP2U4 | KPD2K0LVPEOP2U4 |
KPU06BHVPEOP2U4 | KPU12BHVPDOP2U4 | KPU25BHVPEOP2U4 |
KPU50BHVPEOP2U4 | KPU1KBHVPDOP2U4 | KPU2KBHVPEOP2U4 |
KPE063HVPDOP2U4 | KPE125LVPDOP2U4 | KPE250HVPEOP2U4 |
KPE1K0HVPDOP2U4 | KPE2K0HVPDOP2U4 | KPE06BHVPEOP2U4 |
KPE12BHVPEOP2U4 | KPE25BLVPDOP2U4 | KPE50BHVPEOP2U4 |
KPE1KBLVPDOP2U4 | KPE2KBHVPEOP2U4 | KPB063HVPDOP2U4 |
KPB125HVPDOP2U4 | KPB250LVPEOP2U4 | KPB500LVPDOP2U4 |
KPB1K0HVPEOP2U4 | KPB2K0LVPDOP2U4 | KPB06BHVPEOP2U4 |
KPB12BLVPDOP2U4 | KPB25BHVPEOP2U4 | KPB50BLVPDOP2U4 |
KPB1KBHVPDOP2U4 | KPB2KBHVPDOP2U4 |
