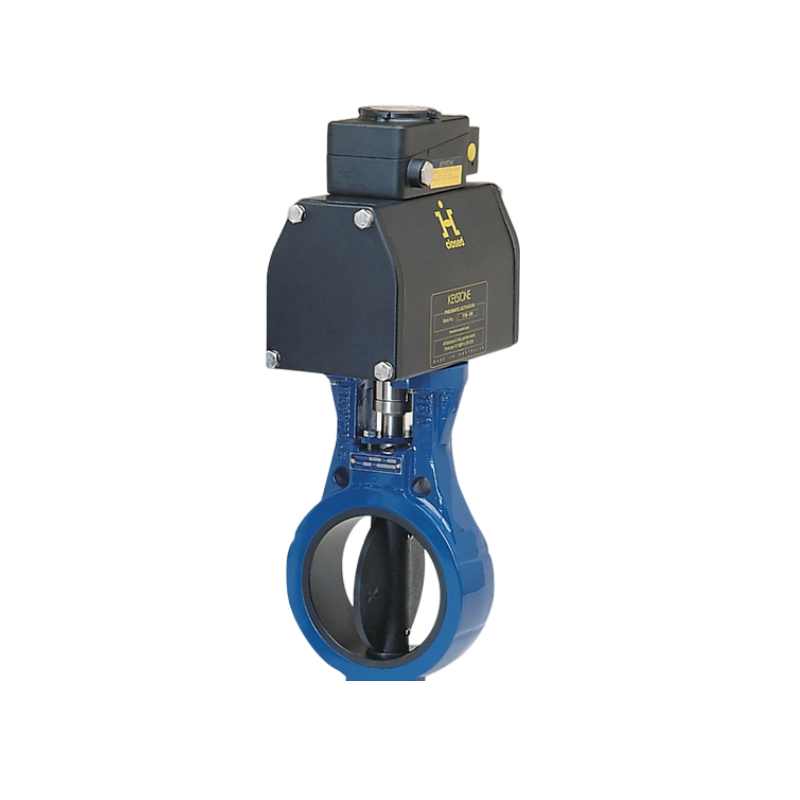

Keystone Figure 637 Slurry Control Valve
The F637 is a medium duty slurry control valve, short body style with replaceable body sleeve.This is a short-body, replaceable sleeve regulating ball valve (disc structure) designed by Emerson Keystone specifically for moderately abrasive slurry applications. It features bi-directional flow and online maintainability, and is widely used for the control of thick, particle-laden media in industries such as mining, metallurgy, power generation, and papermaking.
Features
1.Robust construction.
2.High wear resistant materials.
3.Bi-directional slurry control valve.
4.Swing through disc for samll leakage.
5.Hardened tool steel disc end spacers to protect the shaft from erosion.
6.Extensive size range available.
7.Multiple viton stem seals.
8.Full repairability with replaceable internals for significantly extended valve life.
9.Adjustable PTFE gland packing.
10.Standardised mounting and drive adaptor connection allowing direct mounting of Keystone actuators and also allows for actuator removal while in-line.
11.Manufactured under quality system ISO 9001:2008. Certificate No Mel 0400133.
12.Available with PED approval. Cert No: 0038/PED/MUM/0710020/1.
Specifications
Material | Carbon Steel |
Pressure Class | ASME |
Valve Size | NPS 6 / DN 150, NPS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 2 / DN 50, NPS 20 / DN 500, NPS 2-1/2 / DN 65, NPS 24 / DN 600, NPS 3 / DN 80, NPS 4 / DN 100, NPS 8 / DN 200 |
Associated Products
KPU063HVPDOP2U4 | KPU125LVPEOP2U4 | KPU250HVPDOP2U4 |
KPU500LVPEOP2U4 | KPU1K0HVPDOP2U4 | KPU2K0HPPEOP2U4 |
KPD063HVPDOP2U4 | KPD125LVPEOP2U4 | KPD250HVPDOP2U4 |
KPD500LVPEOP2U4 | KPD1K0HVPDOP2U4 | KPD2K0LVPEOP2U4 |
KPU06BHVPEOP2U4 | KPU12BHVPDOP2U4 | KPU25BHVPEOP2U4 |
KPU50BHVPEOP2U4 | KPU1KBHVPDOP2U4 | KPU2KBHVPEOP2U4 |
KPE063HVPDOP2U4 | KPE125LVPDOP2U4 | KPE250HVPEOP2U4 |
KPE1K0HVPDOP2U4 | KPE2K0HVPDOP2U4 | KPE06BHVPEOP2U4 |
KPE12BHVPEOP2U4 | KPE25BLVPDOP2U4 | KPE50BHVPEOP2U4 |
KPE1KBLVPDOP2U4 | KPE2KBHVPEOP2U4 | KPB063HVPDOP2U4 |
KPB125HVPDOP2U4 | KPB250LVPEOP2U4 | KPB500LVPDOP2U4 |
KPB1K0HVPEOP2U4 | KPB2K0LVPDOP2U4 | KPB06BHVPEOP2U4 |
KPB12BLVPDOP2U4 | KPB25BHVPEOP2U4 | KPB50BLVPDOP2U4 |
KPB1KBHVPDOP2U4 | KPB2KBHVPDOP2U4 |
