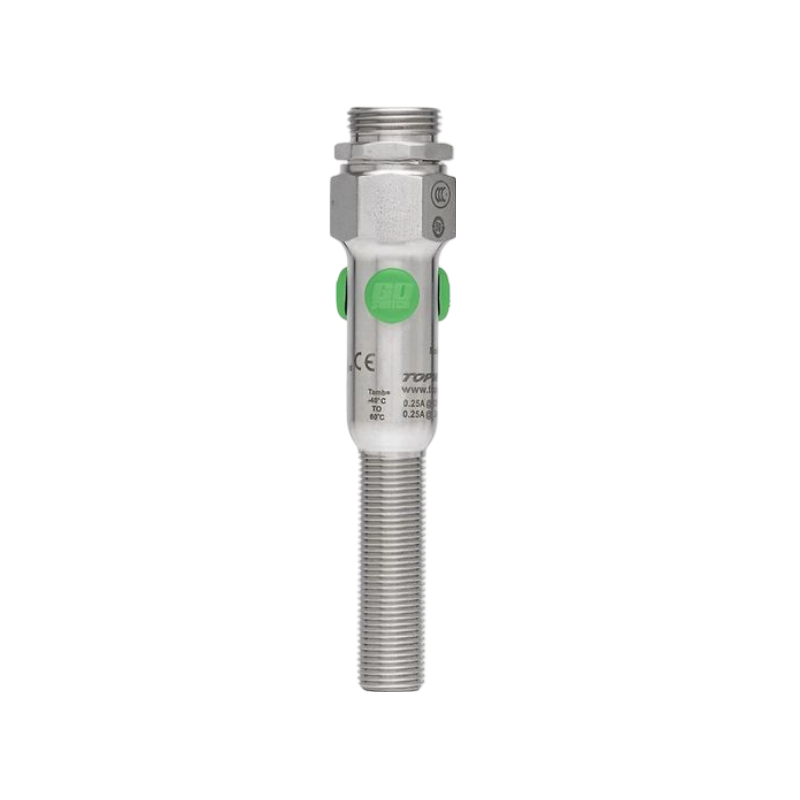

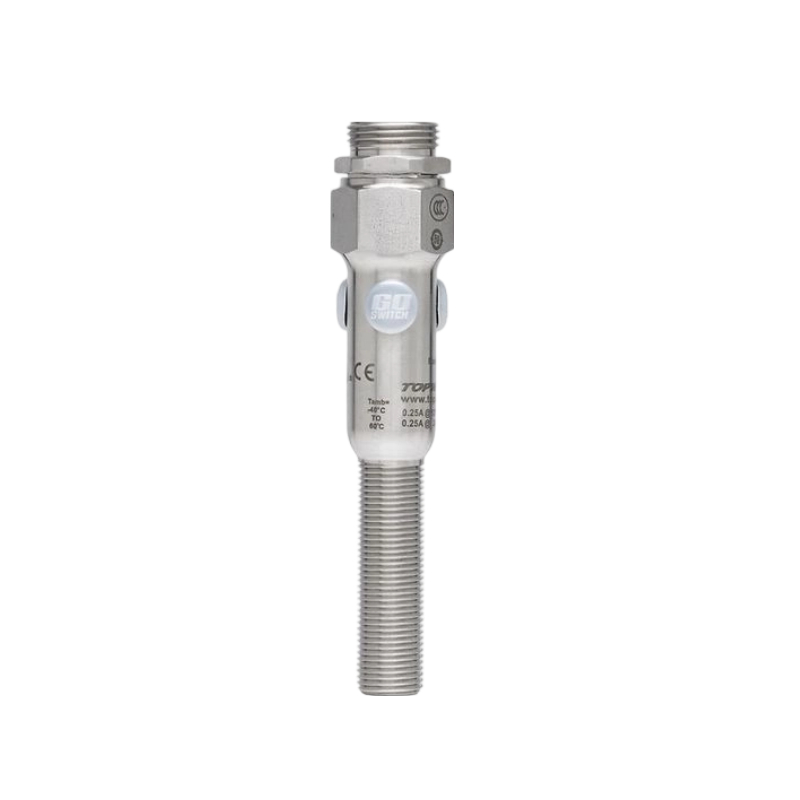

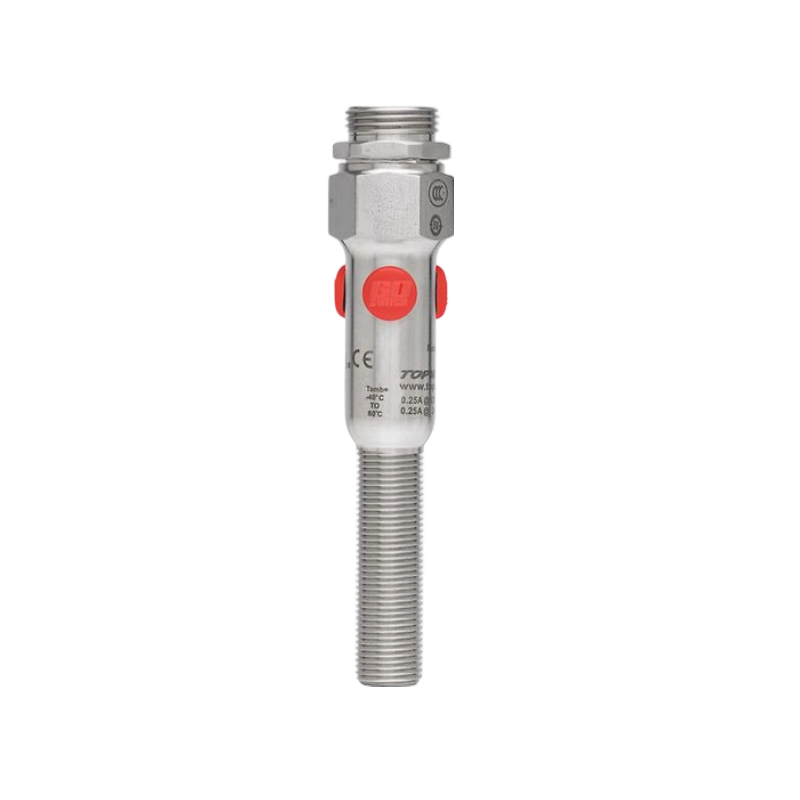

TopWorx GO Switch Model 7LY with Dual Red/Green LED Indicators
The TopWorx 7LY switch is a dual proximity sensor with bright dual LED domes — visible from a long distance. It can be easily adapted to NPN or PNP circuits and can be wired as normally open (Type A), normally closed (Type B), or normally open/normally closed (Type C). The 7LY switch is highly durable in physically harsh environments and has a pressure rating (sensing surface) of up to 140 bar (2000 psi).
Features
1.Single Pole Double Throw (SPDT)
2.Palladium-silver contacts
3.5/8" diameter, 316L stainless steel housing
4.1/2" NPT conduit entry device
5.Class I, Division 2; Class II, Division 2; Class III certification
6.Stainless steel sensing surface
7.5/8" — 18 or M18 mounting threads
8.Integrated increased safety terminal block
Specification
Nominal Sensing Distance | 2.5 mm (0.100 in) |
Hysteresis | 0.2 mm (0.008 in) |
Actuating Member | Ferrous metal or magnet (N) |
Maximum AC Operating Voltage | 120 VAC |
Maximum Load Current | 250 mA |
Minimum Load Current | 10 mA |
Typical Voltage Drop | 5 V |
DC Operating Voltage | 10–30 VDC |
Maximum Initial Contact Resistance | 0.5 Ohm |
Maximum Switching Frequency | 10 Hz |
Operating Temperature Range | -40 °C to 60 °C (-40 °F to 140 °F) |
Housing Material | 316L Stainless Steel |
Housing Protection | IP66 / IP68 |
Vibration Resistance | 10–55 Hz, 1.5-mm double amplitude |
Pressure Rating (Sensing Face) | 140 Bar (2000 PSI) |
