TopWorx GO Switch Model 74

GO Switch Models 73 and 74 are commonly used and widely praised rodless limit switches. They have no external moving parts, no springs or cams, and no reed elements. Therefore, the product has no wear or failure issues.

Online consultation

Details

Features

1.Single-pole double-throw C contactor

2.2A/240VAC, 3A/120VAC, 1A/24VDC

3. 0.100 ″ terminal sensing

4. 316 stainless steel housing

5. Operating temperature: -50° to 105°C (-58° to 221°F)

6. Suitable for hazardous areas of Zone 0 or 1

7. 5/8″ - 18 or M18 mounting threads

Associated Products

11-11110-00	11-12110-00	11-12124-A3
11-12526-DCG	11-12128-F3	21-11528-B3
21-11524-A2	21-12124-A3	21-12526-00
21-12128-F3	73-13523-A3	73-13524-B3
73-13526-B3	73-13528-F3	73-13529-H3
73-1352T-DCA	74-13523-A3	74-13524-B3
74-13526-B3	74-13528-F3	74-13529-H3
74-1352T-DCA	7C-23658-DCA	7C-43658-B3
7D-53658-A3	7D-43658-B3	7E-23658-A3
7E-43658-B3	31-17528-B3	7G-23529-A3
7G-23529-A25	7G-23523-B3	7G-23526-B3
7G-23528-A3	7G-2352T-F3	35-13319-B3
7LR-1356E-A3	81-20514-A3	81-20526-B3
81-20516-A2	LPS-DZ1G-A3	LPS-DZ2R-DCD

Pictures show

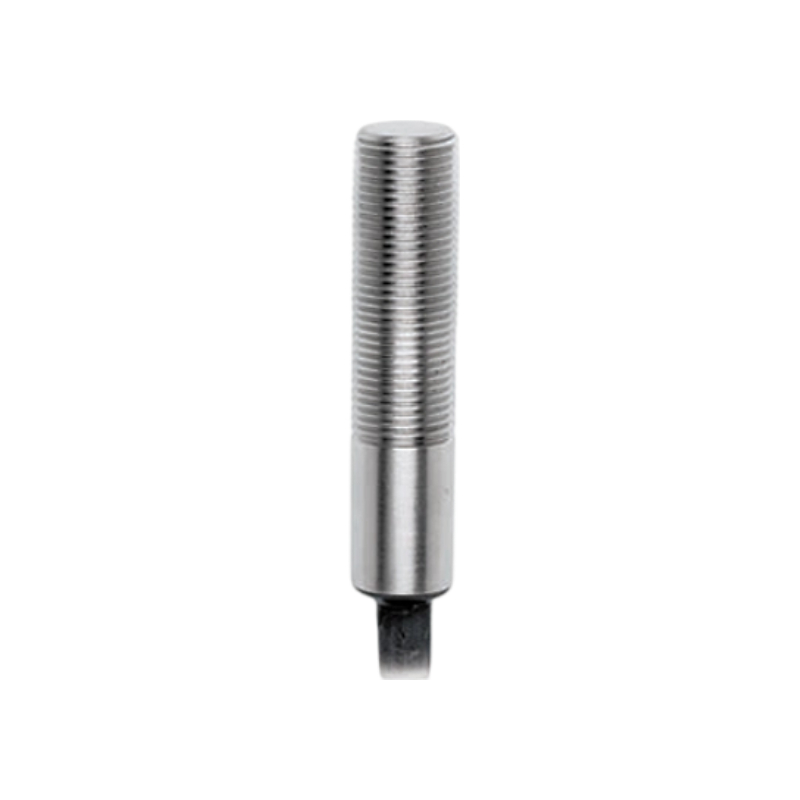

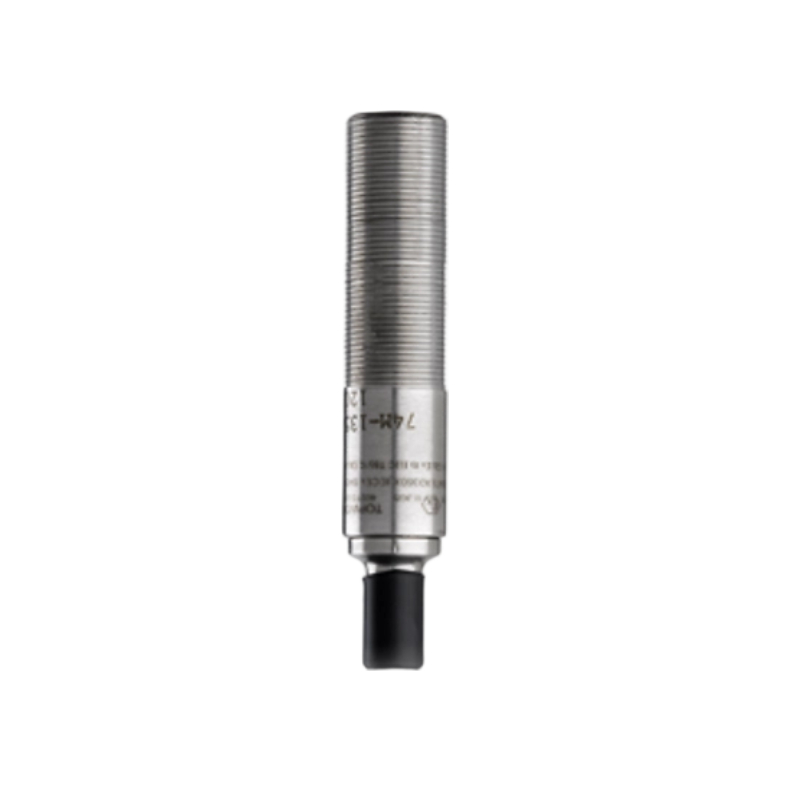

TopWorx GO Switch Model 74
