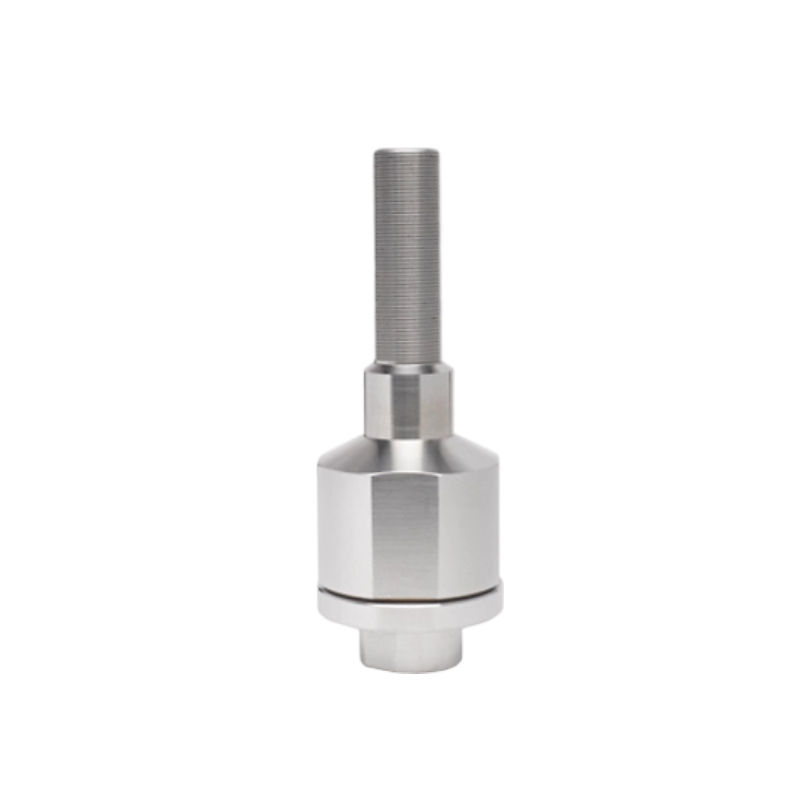

TopWorx GO Switch Model 7J with Integral Junction Box
The GO Switch Model 7J utilizes two mature technologies and combines them into one. The 7J is a one-piece proximity sensor and junction box assembly, allowing end-users to terminate it directly on the sensor, thus reducing re-wiring time.
Features
1.Single-pole double-throw C contactor
2. 2A/240VAC, 3A/120VAC, 1A/24VDC
3. 0.100" terminal sensing
4. 316L stainless steel housing
5. Operating temperature: -50° to 105°C (-58° to 221°F)
6. 1/2" NPT or M20 conduit entry device
7. 5/8" — 18 or M18 mounting thread
8. Integrated increased safety terminal block
Associated Products
11-11110-00 | 11-12110-00 | 11-12124-A3 |
11-12526-DCG | 11-12128-F3 | 21-11528-B3 |
21-11524-A2 | 21-12124-A3 | 21-12526-00 |
21-12128-F3 | 73-13523-A3 | 73-13524-B3 |
73-13526-B3 | 73-13528-F3 | 73-13529-H3 |
73-1352T-DCA | 74-13523-A3 | 74-13524-B3 |
74-13526-B3 | 74-13528-F3 | 74-13529-H3 |
74-1352T-DCA | 7C-23658-DCA | 7C-43658-B3 |
7D-53658-A3 | 7D-43658-B3 | 7E-23658-A3 |
7E-43658-B3 | 31-17528-B3 | 7G-23529-A3 |
7G-23529-A25 | 7G-23523-B3 | 7G-23526-B3 |
7G-23528-A3 | 7G-2352T-F3 | 35-13319-B3 |
7LR-1356E-A3 | 81-20514-A3 | 81-20526-B3 |
81-20516-A2 | LPS-DZ1G-A3 | LPS-DZ2R-DCD |
