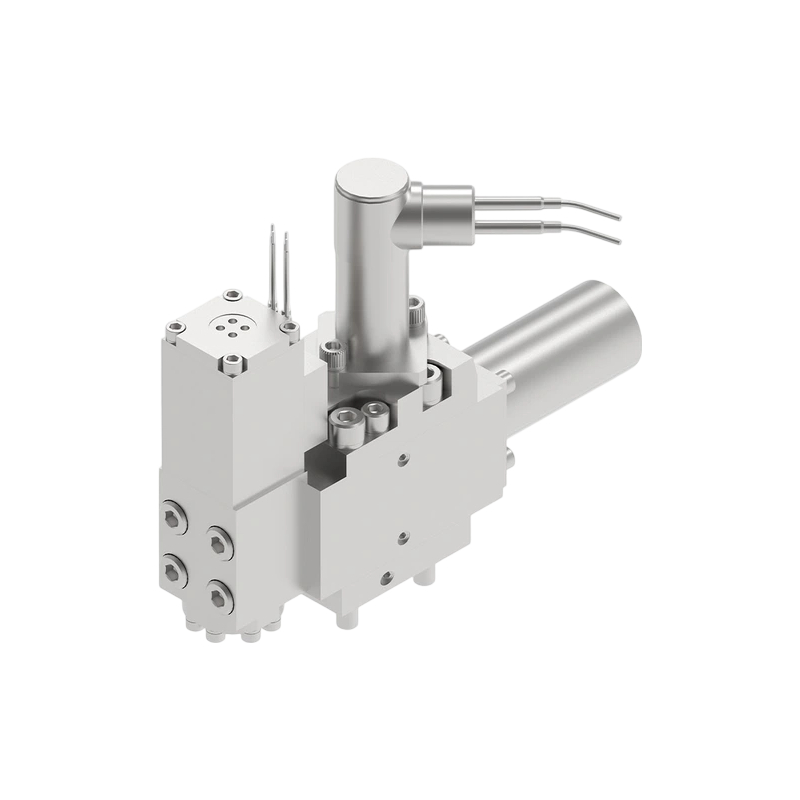

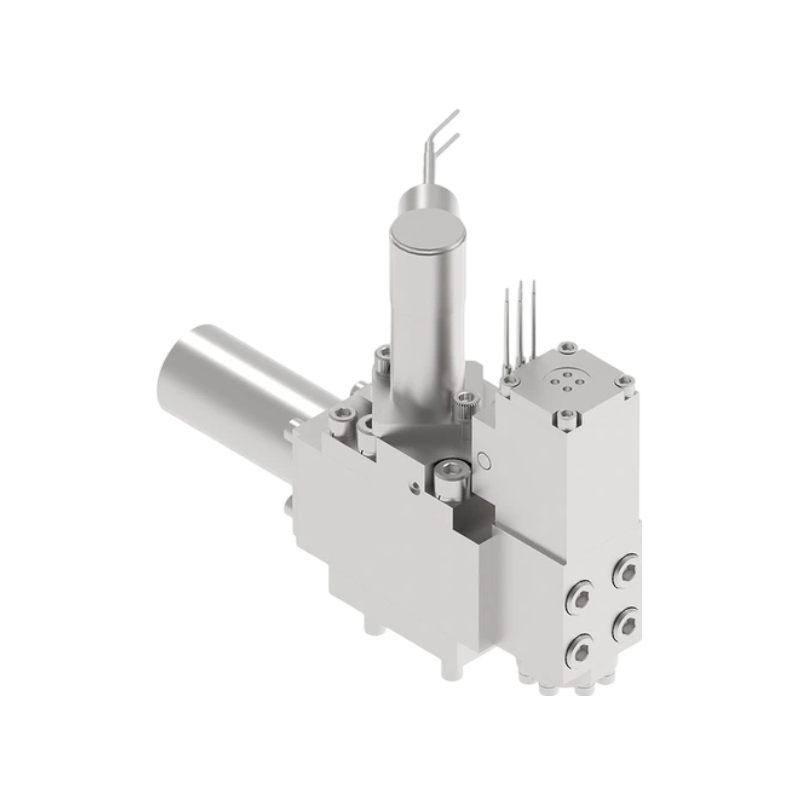

Bifold FPS10 Shear Seal Solenoid Valve API 17F 10000psi 0.22Cv Subsea
Shear seal type hydraulic force-balanced solenoid operated valves Designed to comply with API 17F and ISO 13628-6 Flow - up to 0.22 Cv / 11.5 l/min Working pressure up to 10,000psi / 690 bar Endurance tested up to 1 million cycles Designed for up to 16,400 feet / 5,000 metres operating depth Direct seawater immersion Typical applications include: subsea control modules.
Features
Shear Seal & Force-Balanced Design:
Adopts shear seal type and hydraulic force-balanced structure, ensuring tight sealing performance and stable operation even in harsh subsea environments, effectively preventing leakage and ensuring reliable hydraulic control.
Compliant with International Standards:
Strictly designed to comply with API 17F and ISO 13628-6 standards, meeting the technical requirements of subsea hydraulic systems and ensuring compatibility and interchangeability with global subsea equipment.
Medium Flow Capacity:
Boasts a flow rate of up to 0.22 Cv / 11.5 L/Min, perfectly matching the flow demands of subsea control modules and other subsea hydraulic applications, ensuring efficient and stable fluid control.
High Pressure Rating:
Rated working pressure up to 10,000 psi (≈690 bar), capable of withstanding high-pressure conditions in deep-sea environments, ensuring stable operation without leakage in extreme subsea working conditions.
Excellent Endurance Performance:
Endurance tested up to 1 million cycles, featuring strong wear resistance and long service life, reducing maintenance frequency and operational costs in long-term subsea applications.
Subsea-Adaptable Design:
Designed for direct seawater immersion and operating depths up to 16,400 feet (5,000 metres), with excellent corrosion resistance and sealing performance, adapting to harsh subsea environmental conditions.
Targeted for Subsea Applications:
Specifically optimized for subsea control modules and other subsea hydraulic systems, with strong compatibility and reliable performance, meeting the professional needs of cross-border subsea equipment customers.
Specifications
Model | Bifold FPS10 |
Valve Type | Shear Seal Type Hydraulic Force-Balanced Solenoid Operated Valve |
Compliance Standards | API 17F, ISO 13628-6 |
Working Pressure | Up to 10,000 psi (≈690 bar) |
Flow Coefficient (Cv) | Up to 0.22 Cv / 11.5 L/Min |
Endurance Performance | Endurance tested up to 1 million cycles |
Operating Depth | Up to 16,400 feet / 5,000 metres |
Special Design | Direct seawater immersion, shear seal, hydraulic force-balanced |
Typical Applications | Subsea control modules |
Body Material | High-Strength 316L Stainless Steel (Hydraulic & Subsea Grade) |
Seal Material | FKM (Viton) (Seawater Resistant), NBR (Configurable) |
Media | Hydraulic Oil, Hydraulic Fluid, Seawater Compatible |
Protection Grade | IP68 (Subsea Sealing, Explosion-Proof Coils Optional) |
Electrical Voltage | 24V DC, 48V DC, 110V AC, 230V AC (Per Order) |
Key Features | Shear Seal, Hydraulic Force-Balanced, API 17F, ISO 13628-6, 10000psi, 0.22Cv/11.5L/Min, Subsea |
