Bifold FP01 Hydraulic Solenoid Valve 5000psi 1.2Cv 80L/Min High Cycle
The Bifold FP01 is an entry-level high-performance hydraulic solenoid valve available in both direct acting and indirect (pilot) acting versions, designed for low to medium pressure, medium flow hydraulic control scenarios. Equipped with a ceramic ball spool, it is specifically tailored for high-cycle operating applications, delivering stable and reliable performance in industrial hydraulic systems.
Features
Available in both direct acting and indirect (pilot) acting versions, providing flexible adaptation to different hydraulic system configurations and operating requirements, suitable for various low to medium pressure hydraulic scenarios.
Boasts a flow rate of up to 1.2 Cv / 80 L/Min, effectively meeting the flow demands of basic to medium performance hydraulic systems and ensuring efficient operation of industrial equipment, with lower flow than FP10P.
Rated pressure of 5,000 psi (≈345 bar), capable of withstanding low to medium pressure conditions in hydraulic systems, ensuring stable operation without leakage, with lower pressure resistance than FP10P.
Equipped with a ceramic ball spool structure, which enhances wear resistance and stability, enabling reliable performance in high-cycle operating applications and extending the valve's service life in frequent operation scenarios.
Optimized for hydraulic oil and hydraulic fluid media, with excellent compatibility and sealing performance, suitable for various industrial hydraulic system environments, reducing maintenance frequency and improving operational efficiency.
Valve body crafted from high-strength 316L stainless steel (hydraulic grade), paired with high-quality FKM (Viton) seals, ensuring corrosion resistance, wear resistance, and long-term stable operation in harsh hydraulic working conditions.
Suitable for high-cycle hydraulic applications, compatible with small to medium hydraulic power units, low to medium pressure hydraulic control systems, and various light to medium industrial machinery hydraulic circuits, with strong versatility.
Specifications
Model | Bifold FP01 |
Valve Type | Hydraulic Solenoid Valve (Direct Acting & Indirect/Pilot Acting) |
Function | 3/2 Way (Hydraulic Specific Control) |
Pressure Rating | 5,000 psi (≈345 bar) |
Flow Coefficient (Cv) | Up to 1.2 Cv / 80 L/Min |
Port Size | 1/4" (Standard, Hydraulic-Specific Interface) |
Body Material | High-Strength 316L Stainless Steel (Hydraulic Grade) |
Spool Type | Ceramic Ball |
Seal Material | FKM (Viton) (Standard), NBR (Configurable) |
Media | Hydraulic Oil, Hydraulic Fluid |
Ambient Temp Range | -20°C ~ +85°C (Hydraulic System Adaptable) |
Certification | ATEX, IECEx (Optional, for Hazardous Hydraulic Environments) |
Protection Grade | IP67 (Hydraulic-Specific Sealing, Explosion-Proof Coils Optional) |
Electrical Voltage | 24V DC, 48V DC, 110V AC, 230V AC (Per Order) |
Key Features | Direct/Indirect Acting, 5000psi, 1.2Cv/80L/Min, Ceramic Ball, High Cycle |
Associated Products
FP06P-S1-04-32-NU-SA-77A-24D-35-K85-R1
SH12-FR-SR-MD-10-X1-L217
FP06P-S1-04-32-NU-SA-77A-24D-35-K85-L209
FP06P-S1-A04-32-NU-SA-27A-24D-35-K85-L209
FP06P-S1-04-32-NU-SA-77A-24D-ML-30-K85-L209
FP06P-S1-04-32-NU-AL-77A-24D-MLT-57
FP06P-S1-04-32-NU-AL-27A-24D-57
FP06P-S1-04-32-NU-AL-27A-110D-M-57
FP06P-S1-04-32-NU-AL-77A-24D-57-K85
FP06P-S1-A04-32-NU-AL-27A-24D-57
ASH12-FR-SR-AD-10-X1, 1/2"NPT
FP06P-S1-04-32-NU-V-77A-24D-35-K85-L209
FP10P-S1-04-32-NU-V-77A-48D-57
FP06P-S1-04-32-NU-V-77A-24D-MLT-57
FP06P-S1-M1-32-NC-V-77A-24D-57
BXS-04-N4-E1-52-XX-00-AL-77A-24D-30-L142
BXS-04-04-E1-52-XX-00-AL-77A-24D-30-L142
BXS-04-04-E1-52-XX-00-SA-77A-24D-30-K85-L205
SPR-08-08-E3-52-XX-00-AL-77A-24D-30-L150
BXS-04-N4-E1-52-XX-00-AL-77G-24D-57-L142
SPR-08-08-E1-52-XX-00-AL-77A-24D-30-L150
SPR-08-08-E1-32-NC-00-V-78A-260-K6

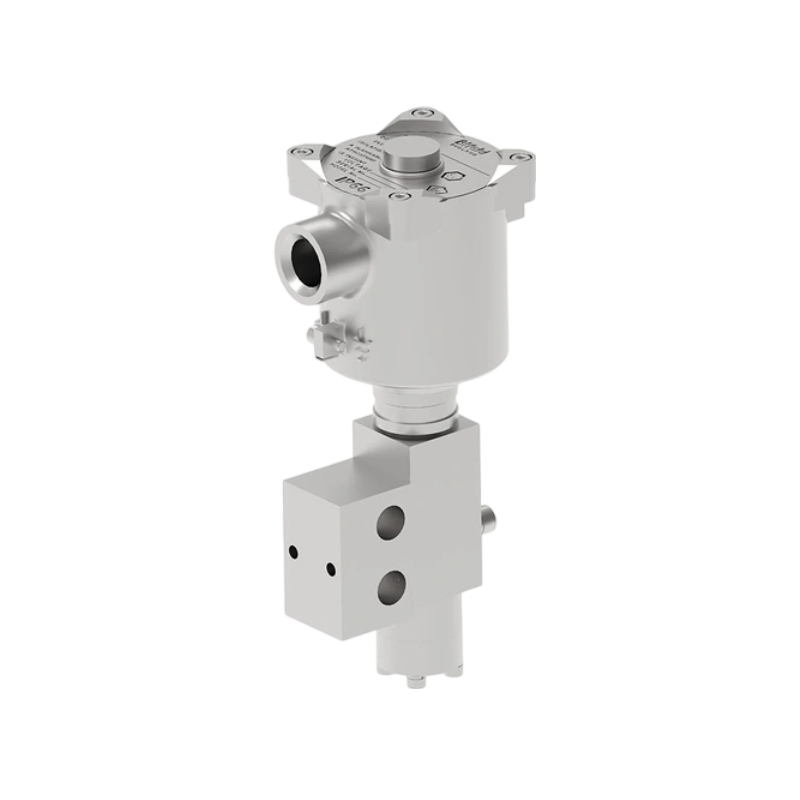

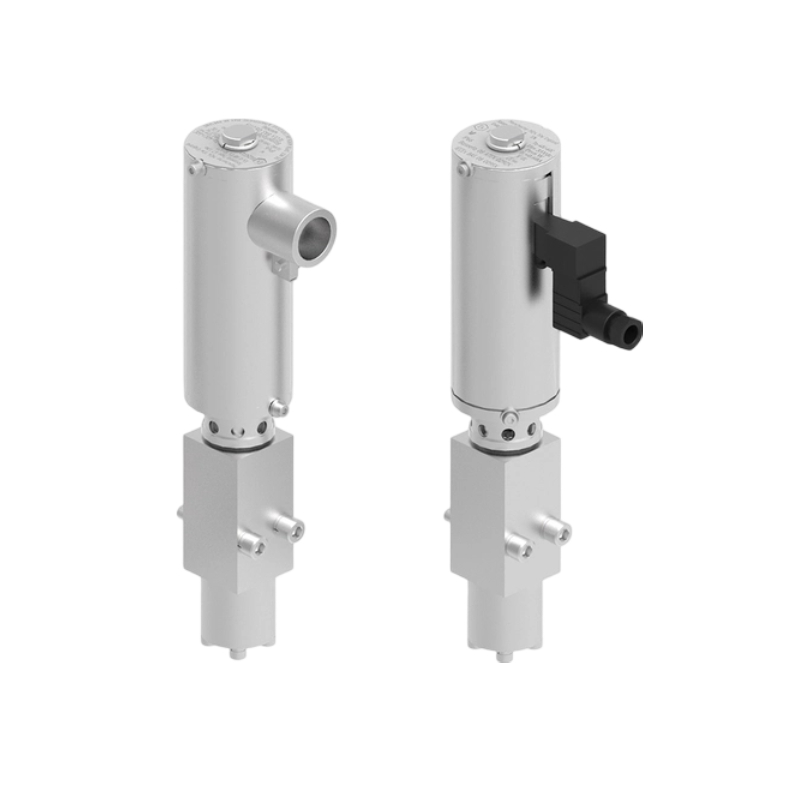

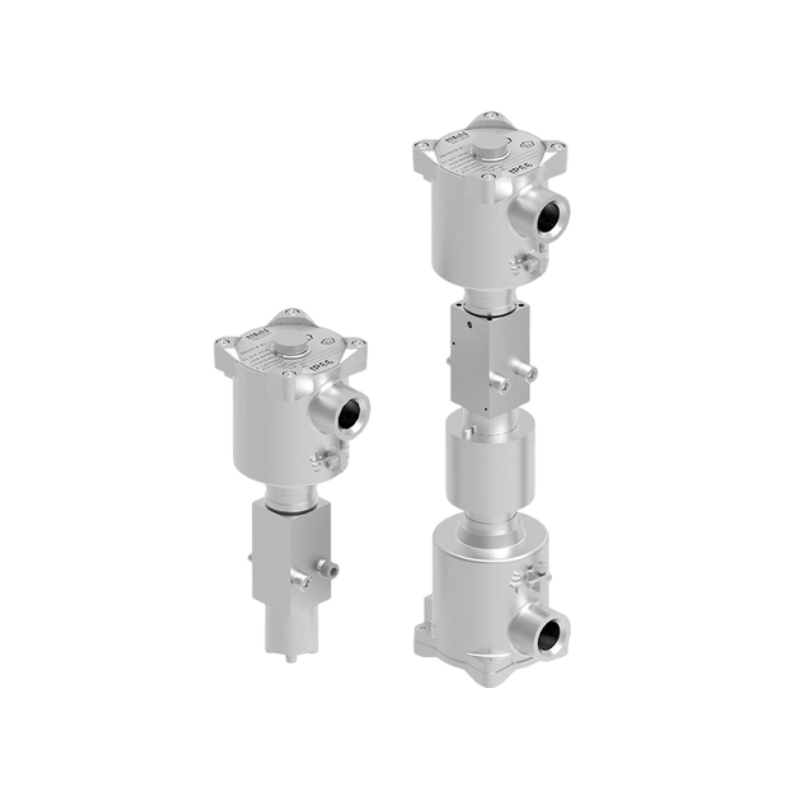

Pictures show
