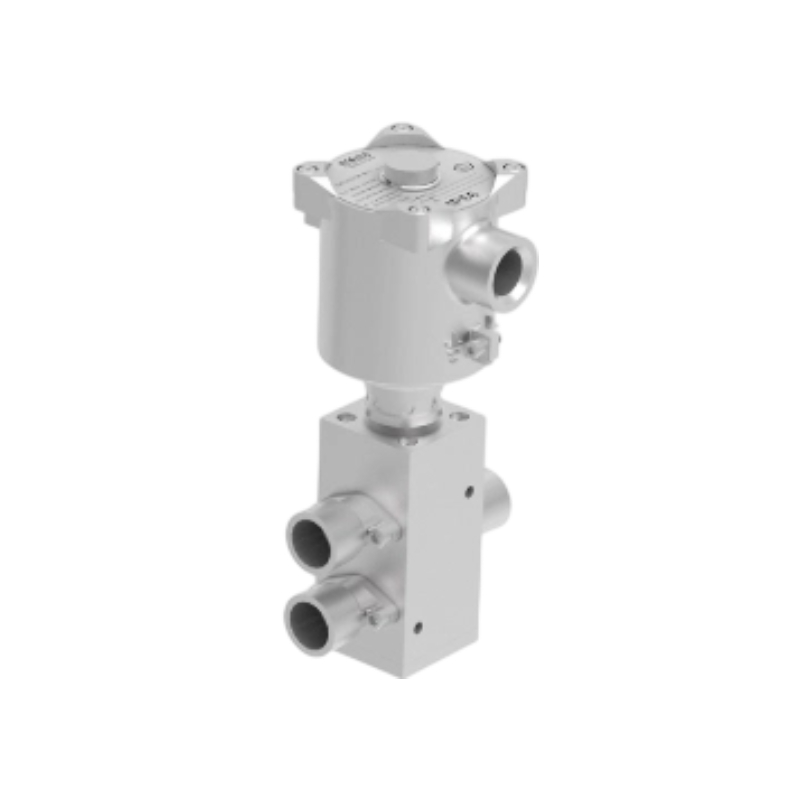

Bifold FP12P Hydraulic Solenoid Valve 15000psi 3.0Cv 180L/Min High Cycle
The Bifold FP12P is a high-performance hydraulic solenoid valve available in both direct acting and indirect (pilot) acting versions, designed for high-pressure, high-flow hydraulic control scenarios. As an intermediate model between FP10P and FP50(B), it is equipped with a ceramic ball spool, specifically tailored for high-cycle operating applications, delivering stable and reliable performance in harsh industrial hydraulic systems.
Features
Dual Operation Modes:
Available in both direct acting and indirect (pilot) acting versions, providing flexible adaptation to different hydraulic system configurations and operating requirements, suitable for various high-pressure hydraulic scenarios.
High Flow Capacity:
Boasts a high flow rate of up to 3.0 Cv / 180 L/Min, effectively meeting the flow demands of high-performance hydraulic systems and ensuring efficient operation of industrial equipment, with higher flow than FP10P.
High Pressure Rating:
Rated pressure of 15,000 psi (≈1034 bar), capable of withstanding high-pressure conditions in hydraulic systems, ensuring stable operation without leakage, with higher pressure resistance than FP10P and lower than FP50(B).
Ceramic Ball Spool:
Equipped with a ceramic ball spool structure, which enhances wear resistance and stability, enabling reliable performance in high-cycle operating applications and extending the valve's service life in frequent operation scenarios.
Hydraulic-Specific Design:
Optimized for hydraulic oil and hydraulic fluid media, with excellent compatibility and sealing performance, suitable for various industrial hydraulic system environments, reducing maintenance frequency and improving operational efficiency.
Durable & Reliable:
Valve body crafted from high-strength 316L stainless steel (hydraulic grade), paired with high-quality FKM (Viton) seals, ensuring corrosion resistance, wear resistance, and long-term stable operation in harsh hydraulic working conditions.
Broad Compatibility:
Suitable for high-cycle hydraulic applications, compatible with hydraulic power units, high-pressure hydraulic control systems, and various industrial machinery hydraulic circuits, with strong versatility and interchangeability.
Specifications
Model | Bifold FP12P |
Valve Type | Hydraulic Solenoid Valve (Direct Acting & Indirect/Pilot Acting) |
Function | 3/2 Way (Hydraulic Specific Control) |
Pressure Rating | 15,000 psi (≈1034 bar) |
Flow Coefficient (Cv) | Up to 3.0 Cv / 180 L/Min |
Port Size | 3/4" (Standard, Hydraulic-Specific Interface) |
Body Material | High-Strength 316L Stainless Steel (Hydraulic Grade) |
Spool Type | Ceramic Ball |
Seal Material | FKM (Viton) (Standard), NBR (Configurable) |
Media | Hydraulic Oil, Hydraulic Fluid |
Ambient Temp Range | -20°C ~ +85°C (Hydraulic System Adaptable) |
Certification | ATEX, IECEx (Optional, for Hazardous Hydraulic Environments) |
Protection Grade | IP67 (Hydraulic-Specific Sealing, Explosion-Proof Coils Optional) |
Electrical Voltage | 24V DC, 48V DC, 110V AC, 230V AC (Per Order) |
Key Features | Direct/Indirect Acting, 15000psi, 3.0Cv/180L/Min, Ceramic Ball, High Cycle |
