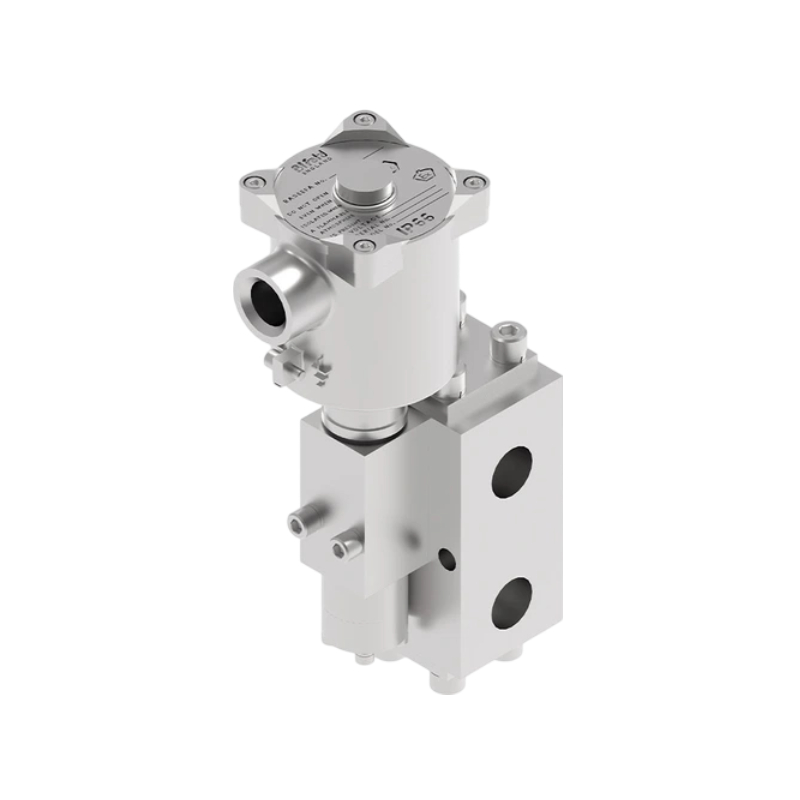

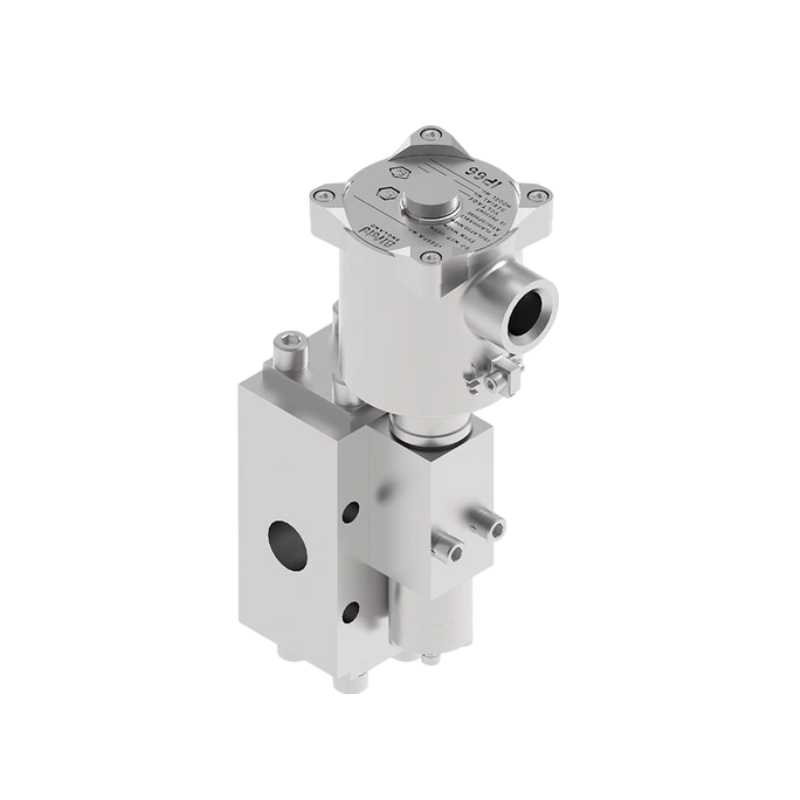

Bifold FP50(B) Hydraulic Solenoid Valve 20000psi 3.8Cv 200L/Min High Cycle
Hydraulic direct and indirect acting solenoid with high flow up to 3.8 cv/ 200 L/Min. 20,000 psi rated, suitable for high cycle applications due to ceramic ball.
Features
Dual Operation Modes:
Available in both direct acting and indirect (pilot) acting versions, providing flexible adaptation to different hydraulic system configurations and operating requirements.
High Flow Capacity:
Boasts a high flow rate of up to 3.8 Cv / 200 L/Min, effectively meeting the flow demands of high-performance hydraulic systems and ensuring efficient operation.
High Pressure Rating:
Rated pressure of 20,000 psi (≈1379 bar), capable of withstanding extreme high-pressure conditions in hydraulic systems, ensuring stable operation without leakage.
Ceramic Ball Spool:
Equipped with a ceramic ball spool structure, which enhances wear resistance and stability, enabling reliable performance in high-cycle operating applications and extending the valve's service life.
Hydraulic-Specific Design:
Optimized for hydraulic oil and hydraulic fluid media, with excellent compatibility and sealing performance, suitable for various industrial hydraulic system environments.
Durable & Reliable:
Valve body crafted from high-strength materials, paired with high-quality seals, ensuring corrosion resistance, wear resistance, and long-term stable operation in harsh hydraulic working conditions.
Broad Compatibility:
Suitable for high-cycle hydraulic applications, compatible with hydraulic power units, high-pressure hydraulic control systems, and various industrial machinery hydraulic circuits.
Specifications
Model | Bifold FP50(B) |
Valve Type | Hydraulic Solenoid Valve (Direct Acting & Indirect/Pilot Acting) |
Function | 3/2 Way (Hydraulic Specific Control) |
Pressure Rating | 20,000 psi (≈1379 bar) |
Flow Coefficient (Cv) | Up to 3.8 Cv / 200 L/Min |
Port Size | 3/4" (Standard, Hydraulic-Specific Interface) |
Body Material | High-Strength 316L Stainless Steel (Hydraulic Grade) |
Spool Type | Ceramic Ball |
Media | Hydraulic Oil, Hydraulic Fluid |
Ambient Temp Range | -20°C ~ +90°C (Hydraulic System Adaptable) |
Certification | ATEX, IECEx (Optional, for Hazardous Hydraulic Environments) |
Protection Grade | IP67 (Hydraulic-Specific Sealing, Explosion-Proof Coils Optional) |
Electrical Voltage | 24V DC, 48V DC, 110V AC, 230V AC (Per Order) |
Key Features | Direct/Indirect Acting, 20000psi, 3.8Cv/200L/Min, Ceramic Ball, High Cycle |
