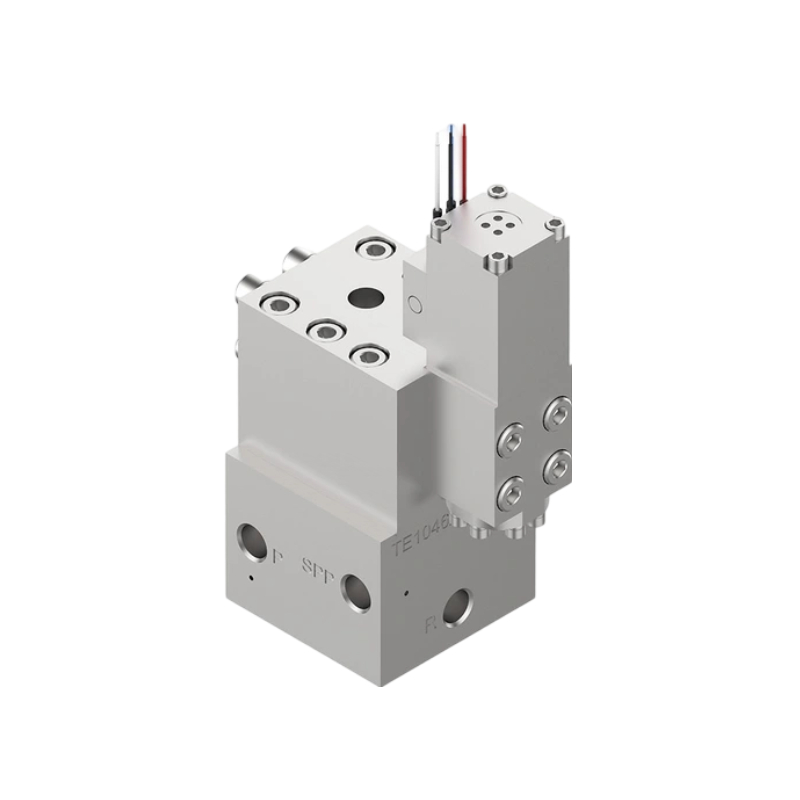

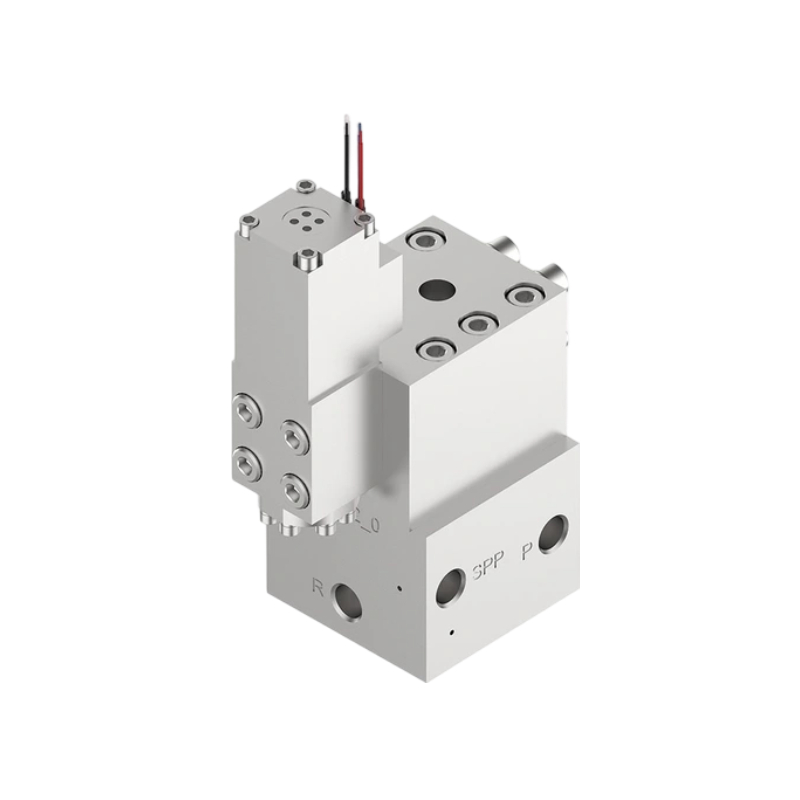

Bifold FPS15 Pilot Operated Solenoid Industrial Valve 35Bar 316SS
The Bifold FPS15 is a high-performance pilot-operated solenoid valve designed for medium-to-high pressure industrial automation and heavy-duty pneumatic control applications. As a key model in the Bifold series, it features robust pressure resistance, large flow capacity, and stable operation.
Features
Pilot Operated Design:
Adopts efficient pilot operation technology, delivering energy-saving performance with fast response speed. Ideal for medium-to-high pressure and large-flow control scenarios, ensuring stable operation in demanding industrial environments.
Broad Pressure Adaptability:
Working pressure ranges from 0–35 bar, effectively matching the pressure requirements of most medium-to-high pressure pneumatic systems. Precise pressure control ensures reliable performance across a wide range of operating conditions.
Large Flow Capacity:
Optimized internal flow channel structure with a high flow coefficient, suitable for high-volume media control. This design helps improve the overall efficiency of industrial systems and meets the flow demands of heavy-duty operations.
Standard 1/2" Interface:
Equipped with a standard 1/2" port size, compatible with large-diameter industrial pipelines. The straightforward installation design simplifies replacement and maintenance, reducing labor costs for on-site teams.
Superior Material & Corrosion Resistance:
The valve body is crafted from high-strength 316L stainless steel, paired with FKM (Viton) seals as standard (NBR optional). This combination provides excellent corrosion, wear, and high-temperature resistance, ensuring long service life in harsh working conditions.
Explosion-Proof Configuration Option:
Available with explosion-proof coils certified to ATEX and IECEx standards, ensuring safe operation in hazardous gas environments such as oil and gas field installations.
Versatile 3/2 Way Function:
Standard 3/2 way directional control functionality, offering broad compatibility with various industrial automation equipment and heavy-duty pneumatic systems.
Specifications
Model | Bifold FPS15 |
Valve Type | Pilot Operated Solenoid Valve |
Function | 3/2 Way |
Working Pressure | 0–35 bar / 0–508 psi |
Flow Coefficient (Cv) | ≈ 3.0 (Large Flow Control) |
Port Size | 1/2" (Standard) |
Body Material | 316L Stainless Steel |
Seal Material | FKM (Viton) (Standard), NBR (Configurable) |
Media | Compressed Air, Inert Gases, Light Hydraulic Fluids |
Ambient Temp Range | -20°C ~ +80°C (Adjustable by Seal) |
Certification | ATEX, IECEx (Optional) |
Protection Grade | IP67 (Explosion-Proof Coils Optional) |
Electrical Voltage | 24V DC, 48V DC, 110V AC, 230V AC (Per Order) |
Key Features | Pilot Operated, 35Bar High Pressure, 1/2" Interface, Large Flow, Corrosion Resistant |
